13mm DC Motor Gearbox High Torque Low Rpm DC Motor Gear Reduction Box For Robot

13mm DC Motor Gearbox High Torque Low Rpm Dc Motor Gear Reduction Box for Robot

Our GA13Y050/GM13-050 series represents a premium 13mm DC spur gear motor with full metal gearbox, delivering 50RPM @6V with exceptional torque density. Engineered for precision motion control in space-constrained applications.

Key Specifications:
✔ Voltage: 6V DC (3-9V operational range)
✔ Speed: 50±10% RPM (After gearbox)
✔ Gear Type: Precision spur metal gears for smooth operation
✔ Shaft Options: D-cut or round (customizable)
✔ Current Draw: ≤40mA (no-load), ≤140mA (stall)

13mm Gear Motor with Gearbox DC Motor Specifications

Model : GA13-050  micro metal gearmotor

Gearbox: 13 mm Dia metal spur gear reducer

030 Motor Size:12mm*15mm*26.7 (H*D*L)

Shaft : Φ3mm D-cut 0.5mm,custom

Gear Box Size:13mm*L mm (Length can be customized)
Shaft size : Approx. 4 x L mm (Dia.*L)
Nominal Voltage : DC 3V 6V

Operating Voltage:3V-9V
Revolving speed custom:
34RPM/50 RPM /83 RPM / 108 RPM / 145 RPM / 198RPM ..

Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;

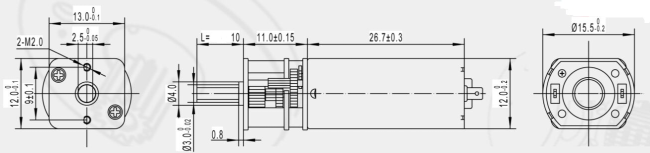

13mm DC Motor Gearbox High Torque Low Rpm Dc Motor Dimensions

13mm Gear Redution Motor Outline Features:

• Single 050 Motor Size:12mm*15.5mm*18.7(H*Dia*L)
• Single 050 Motor Type:RF-030/RK-030
• Gearbox Diameter:13±0.2mm
• Gearbox Shaf Diamteter:4mm or 3.5mm D shaft (D-shaped output shaft is processed and milled to increase the force and friction, making the transmission more stable and convenient to connect and fix)
• Mounting Screw Holes Size:2*0.4mm
• Mounting Screw Holes Distance:9mm
• Gearbox Outshaft Shape/Length can be custom

13mm DC Motor Gearbox High Torque Low Rpm Dc Motor Parameter

NOTES:The above list of parameters is a general parameter, if different needs can be processed according to requirements.

Voltage, Torque, Speed, Current, Power and Shaft size can be customized as requirement.

Why Choose Lihua Motor /HCS Motrors as Your Mini Motor DC Supplier

1. 20+ Years of Precision Engineering Expertise

• Specialized in micro motor manufacturing since 2003

• ISO 9001 & RoHS certified production facilities

• 50+ patented motor technologies

2. Unmatched Customization Capabilities

• Voltage range: 1.5V-48V DC

• Custom shaft configurations (D-cut, knurled, threaded)

• Wide gear ratio options (5:1 to 1000:1)

• Encoder integration (optical/magnetic)

• IP54/IP65 waterproof versions available

3. Rigorous Quality Assurance

• 100% performance testing before shipment

• 50,000+ cycle endurance testing

• ±5% tolerance control on critical parameters

• Materials traceability system

4. Global Supply Chain Advantage

• 50,000+ motors monthly production capacity

• 72-hour sample delivery (standard models)

• Warehouses in US, Germany & Japan

• 99.3% on-time delivery rate in 2023

5. Comprehensive Technical Support

• Free application engineering consultation

• 3D CAD models & simulation files

• On-site troubleshooting available

• 24-month quality guarantee

6. Proven Industry Applications

• Supplied 1000+ clients across:
  • Smart locks (3M+ motors delivered)
  • Medical devices (CE/FDA compliant)
  • Robotics (200+ university partnerships)
  • Automotive systems (IATF 16949 certified)

7. Competitive Value Proposition

• 15-30% cost advantage vs. European brands

• 30-day lead time for custom orders

• MOQ from 100pcs (samples available)

8. Sustainable Manufacturing

• 85% production waste recycling

• REACH/Conflict Minerals compliant

• Energy-efficient motor designs
