20mm 180 Micro Gearbox Electric Motor Gear Reduction Box 24v Dc Motor With Gearbox
20mm 180 Micro Gearbox Electric Motor Gear Reduction Box 12v Dc Motor With Gearbox
This premium 20mm DC gear motor delivers strong torque output in a compact size, perfect for various applications. Built with durable metal gears and quality materials, it ensures long-lasting performance even under tough working conditions.
Key Features:
✔ High Torque - Handles heavy loads with ease
✔ Compact Design - Only 20mm diameter for easy installation
✔ Smooth Operation - Minimal vibration and noise
✔ Wide Voltage Range - Works with 3V-12V power input
✔ Durable Construction - Made to last through continuous use
✔ Standard Options: .Reduction Ratio: 18,25,30,36,50,60,71,85,100,120,169,200,239,284,336
✔ Custom Ratios: Tailored to your exact speed/torque requirements
✔ Custom Gearbox Height:
The gearbox is available in multiple lengths (11.2mm, 12.7mm, 14.2mm, 15.7mm,17.2mm) for flexible integration across applications.
20mm Gear Motor Specifications
Model : GA20-180 micro metal gearmotor
Gearbox: 20 mm Dia metal spur gear reducer
180 Motor Size:15.4mm*20.4mm*32.1 (H*D*L)
Shaft : Φ4mm D-cut 3.5mm,custom
Gear Box Size:20mm D*L mm (Length can be customized)
Shaft size : Approx. 4 x L mm (Dia.*L)
Nominal Voltage : DC 6V 12V
Operating Voltage:6V-12V
Revolving speed custom:
16RPM /42RPM / 105RPM /260RPM /15RPM/ 40RPM /100RPM /250RPM
Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;
Application:
- Aircraft landing gear,Airplane toy,
- Automotive Parts,Beauty instrument,
- Commercial Products,Door lock,
- Educational robot,Personal Care,
- Security and Locks,Window actuator,etc.

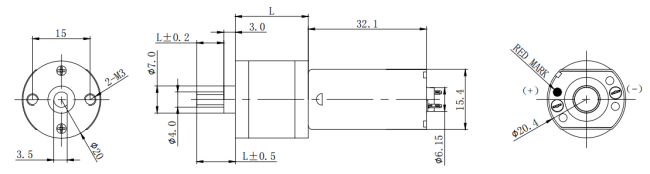

20mm 180 Micro Gearbox Electric Motor Gear Reduction Box Dimension
Motor Outline Features:
- Single 180 Motor Size:15.4mm*20.4mm*32.1(H*Dia*L)
- Single 180 Motor Type:FF-180/FK-180
- Gearbox Diameter:20±0.2mm
- Gearbox Step Height:3mm
- Gearbox Shaf Diamteter:4mm or 3.5mm D shaft (D-shaped output shaft is processed and milled to increase the force and friction, making the transmission more stable and convenient to connect and fix)
- Mounting Screw Holes Size:3mm
- Mounting Screw Holes Distance:15mm
- Gearbox Outshaft Shape/Length can be custom
|
Ratio |
12.7-15.8 |
25.4-44.7 |
50.7-126 |
143-354.8 |
403-1000 |
|
Gearbox Shaft Length |
11.2 |
12.7 |
14.2 |
15.7 |
17.2 |
20mm 180 Micro Gearbox Electric Motor Gear Reduction Parameter List
|
Model |
Volt |
No-load |
At Maximum Efficiency |
Stall |
|||||
|
V |
Speed |
Current |
Speed |
Current |
Torque |
Output |
Torque |
Current |
|
|
r/min |
A |
r/min |
A |
Kg.cm |
W |
Kg.cm |
A |
||
|
GA20Y130-31 |
6 |
250 |
0.07 |
200 |
0.25 |
0.25 |
0.5 |
1.4 |
1.04 |
|
GA20Y130-78 |
6 |
100 |
0.07 |
79 |
0.28 |
0.56 |
0.5 |
3.1 |
1.04 |
|
GA20Y130-195 |
6 |
40 |
0.08 |
32 |
0.28 |
1.2 |
0.4 |
7 |
1.04 |
|
GA20Y130-488 |
6 |
15 |
0.08 |
12 |
0.3 |
2.3 |
0.3 |
12 |
1.04 |
|
GA20Y130-31 |
12 |
260 |
0.04 |
195 |
0.15 |
0.3 |
0.5 |
1.3 |
0.32 |
|
GA20Y130-78 |
12 |
105 |
0.04 |
80 |
0.15 |
0.69 |
0.4 |
2.8 |
0.32 |
|
GA20Y130-195 |
12 |
42 |
0.06 |
32 |
0.17 |
1.5 |
0.4 |
6.4 |
0.32 |
|
GA20Y130-488 |
12 |
16 |
0.06 |
12 |
0.17 |
3.8 |
0.3 |
11 |
0.32 |
Notes:The above list of parameters is a general parameter, if different needs can be processed according to requirements.
