24mm Carbon Brush DC Motor RC-260 Series Low Voltage High Speed - Factory Direct OEM/ODM
-
The RC-260 is a compact 24mm diameter carbon brush DC motor featuring a short 26.9mm body length — ideal for space-constrained applications requiring reliable performance. Available in two winding configurations: high-speed (12300 RPM) for rapid rotation needs, or balanced (6900 RPM) for torque-optimized applications. Operating at low voltage (1.5V-4.5V), this motor is perfect for battery-powered devices and portable electronics. The carbon brush design ensures long service life and consistent performance.
- FACTORY DIRECT MANUFACTURER — Complete customization from design to production:
✓ Dual Configuration Options: Choose between high-speed (12300 RPM, 1.55W) or high-torque (6900 RPM, 0.49W) variants — or request a custom winding for your specific speed/torque requirements.
✓ Sample-Based Development: Send us your target motor or existing sample — we'll match or exceed the performance specifications.
✓ Drawing-Based Manufacturing: Provide CAD drawings or dimensional specs; we produce to your exact mechanical requirements.
✓ Voltage Customization: Standard 1.5V-4.5V range; other voltages available upon request.
✓ Quality Control: 100% testing before shipment; life cycle and performance validation.
✓ Flexible MOQ: Standard 500-1000 pcs; sample orders accepted for evaluation.
- 24mm diameter with compact 26.9mm body length
- Carbon brush design for reliable long-term operation
- Dual speed options: 12300 RPM or 6900 RPM
- Low voltage operation: 1.5V-4.5V (3.0V nominal)
- Output power: 1.55W (high-speed) or 0.49W (balanced)
- Stall torque: 90 g.cm or 48 g.cm
- Standard φ2.0mm shaft diameter
- Mounting holes: 2-M2*0.4 at 11.5mm spacing
- Ideal for battery-powered applications
- Full OEM/ODM customization supported

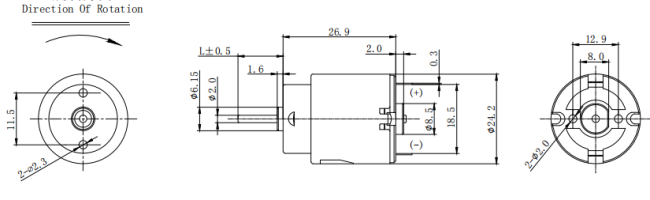

Mechanical Specifications
Parameter Value
Body Diameter φ24.0 mm
Body Length 26.9 mm
Shaft Diameter φ2.0 mm
Shaft Length L±0.5 (customizable)
Mounting Hole Spacing 11.5 mm (2-M2*0.4)
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Range | Rated | Speed | Current | Torque | Speed | Current | Output | Torque | Current | |
| R/min | A | m.Nm | R/min | A | W | g.cm | A | |||
| RC-260RA-18130 | 4.5-6V | 4.5V | 9800 | 0.14 | 1.48 | 7750 | 0.53 | 1.2 | 72 | 2.0 |
| RC-260RA-2670 | 3-4.5V | 4.5V | 18500 | 0.30 | 2.14 | 15290 | 1.43 | 3.41 | 125 | 6.8 |
| RC-260SA-2670 | 3-4.5V | 4.5V | 13700 | 0.24 | 2.66 | 11520 | 1.27 | 3.2 | 170 | 6.7 |
| RC-260SA-2295 | 3-6V | 4.5V | 10200 | 0.20 | 2.43 | 8300 | 0.87 | 2.11 | 133 | 3.8 |
|
Customized product parameter are available upon your request Note:1mNm= 1Ncm = 10.2gcm |
||||||||||
RC-260 Motor, 24mm DC Motor, Carbon Brush Motor, 12300 RPM Motor, 6900 RPM Motor, Low Voltage Motor, 1.5V Motor, 3V Motor, 4.5V Motor, Compact Motor, 26.9mm Length Motor, 24mm Diameter Motor, Dual Speed Option, Custom Motor, OEM Motor Manufacturer, ODM Motor Supplier
Q: What’s the difference between the RC-260SA-2670 and RC-260SA-18130 models? Which should I choose?
A: The 2670 winding delivers higher speed (12300 RPM) and power (1.55W) — ideal for applications requiring rapid rotation like fans or pumps. The 18130 winding offers lower speed (6900 RPM) but better torque characteristics with lower current draw — better for load-bearing applications. Not sure which fits your application? Tell us your load requirements and operating conditions; our engineers will recommend the optimal configuration or design a custom winding.
Q: Can you modify the voltage range for my specific battery system?
A: Yes! While our standard configurations cover 1.5V-4.5V, we can customize the winding and brush configuration to optimize performance for your specific voltage requirements — whether that’s a single AA battery (1.5V), two-cell system (3V), or other configurations. Provide your power source details and we’ll engineer the optimal solution.
