304 Stainless Steel Great Wall Honeycomb Metal Conveyor Belt For Food Processing

Metal Conveyor Belt Product Description:

upport shaft and steel belt structure: The main body of the Great Wall mesh is woven from steel belts, and the support shaft is used to support and fix the mesh belt. This structural design makes the mesh belt have high strength and stability, suitable for various conveying tasks under heavy loads and complex environments. Welding and edge locking: The edges of the Great Wall mesh belt can be welded to enhance the stability and applicability of the edges. The ends of the support shaft can also be locked to ensure a firm connection between the support shaft and the mesh belt. Baffle design: The design of the Great Wall mesh belt takes into account the stability and safety of the material during transportation, so it is usually equipped with side baffles and transverse baffles to prevent material overflow or sliding.

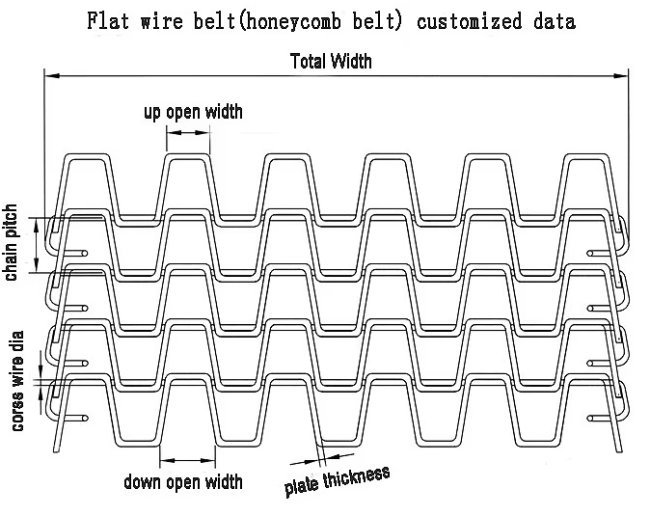

Metal Conveyor Belt Specification:

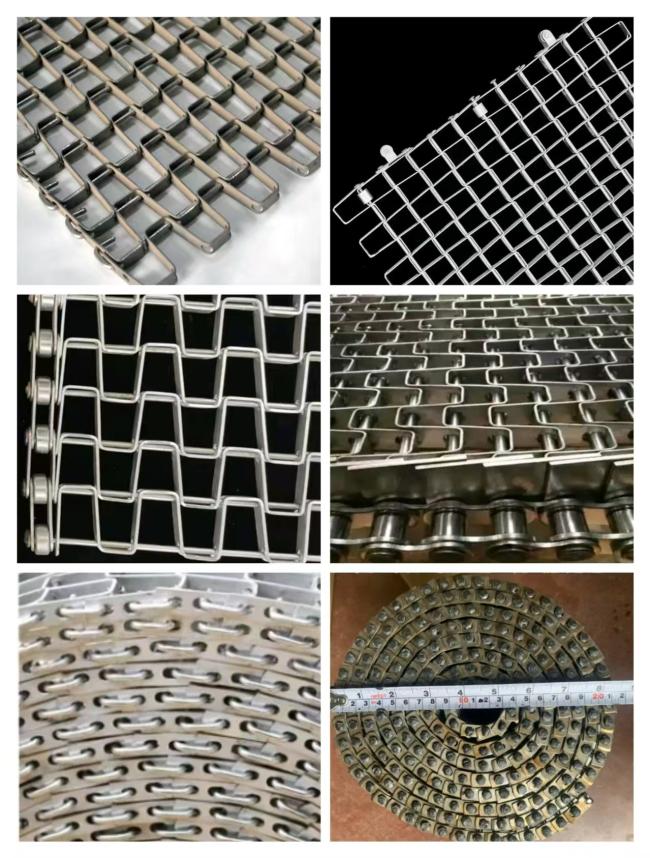

Metal Conveyor Belt Different edge types:

Metal Conveyor Belt Features:

 High opening rate, excellent circulation, can be tightly transmitted.

 Low cost, high temperature resistance, corrosion resistance, long service life.

No surface treatment required, simple maintenance, uniform structure, flat mesh surface, accurate mesh count, uniform thickness.

Welded button edge or riveted edge.

 Easy to connect, solid edge can reduce hooking or jamming by conveyor protrusions.

The conveying surface is flat, the friction is small, and the transition between conveying lines can be smooth.

 Simple operation, easy to clean and install.

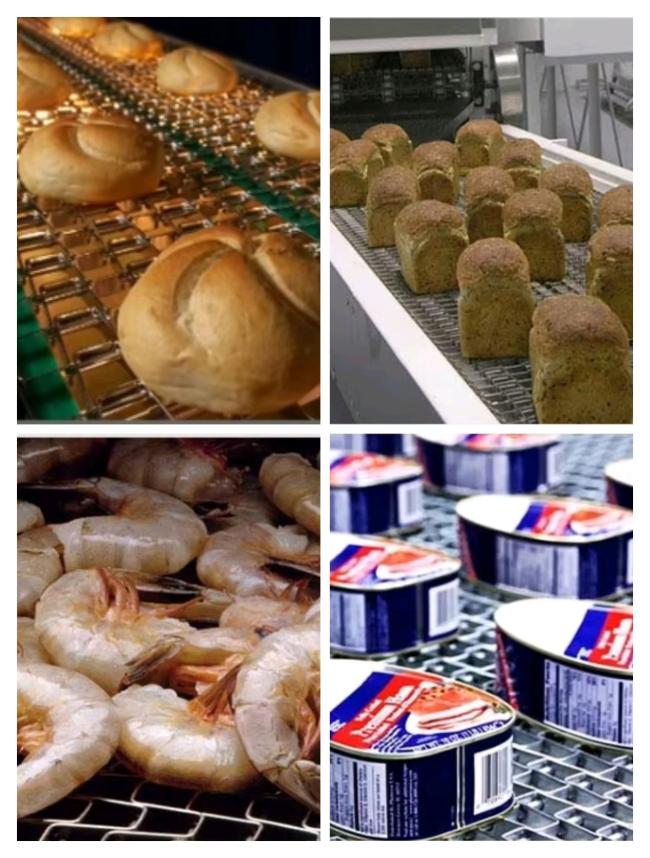

Metal Conveyor Belt Application:

Quick freezing in product handling systems, flat conveying of baking machinery, spiral conveying, annealing, baking, bottle conveying, etc. of glass machinery.

 Cleaning, drying, cooling, steaming, etc. in food production.

Stainless steel metal honeycomb mesh conveyor belts are widely used in glass industry, food processing industry, and chemical industry.

 Mesh conveyor belts are widely used in cement, metallurgy, casting, chemical industry and other fields to transport materials.

 Mesh conveyor belts can be used as high temperature and burn resistant conveyor belts, and can also serve as mats and drag pads.

Cooking, baking, cooling, washing, frying, drying, sterilizing, pasteurizing, transporting, garbage disposal, blanching, deep frying.

Company Introduction:

Anping County Comesh Filter Co., Ltd. was established in 1987 and is located in Anping County, the hometown of wire mesh, where wire mesh materials are abundant. At present, Comesh is a leading manufacturer of food-grade stainless steel spiral mesh, such as for food processing, fruit and vegetable drying, baking, sterilization. It also produces stainless steel and polyester mesh conveyor belts for food conveyors, polyester screen printing mesh, nylon filter mesh and wire mesh filters for filtration. We also provide product customization services to meet customer needs. It is our goal to establish long-term business relations with domestic and foreign customers.
