Chain Link Stainless Steel Wire Mesh Spiral Metal Conveyor Belt For Freezer

Price Negotiable
Price: USD2.0~USD8.0
MOQ: 1 meter
Delivery Time: 5-8days
Brand: comesh
Product Description

Chain Link Stainless Steel Wire Mesh Spiral Conveyor Belt For Freezer



metal conveyor belt discription



Balanced weave spiral mesh belt as the simplest version of universal weave conveyor belt features right and left hand round wires twisted into each other similar to a diamond mesh wire cloth. This design provides large open area to enhance the efficiency of product washing and drying process.

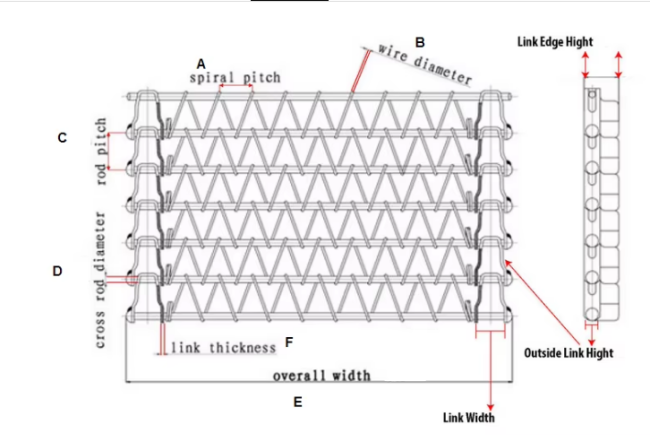

metal conveyor belt specification





A: Wire Diameter : (mm)  B: Spiral Pitch: (mm)
C:Rod Pitch: (mm)           D: Cross Rod Diameter: (mm)
E:Link Thickness: (mm)   F:Overall Width: (mm)
G: Link Height: (mm)        Material: SS304 316 316L


Specifications of Flexible Rod Conveyor Belt

Item

Spiral Coil Pitch

(inch)

Coil Wire Diameter

(mm)

Cross Rod Pitch

(mm)

Cross Rod Diameter

(mm)

Edge Links Thickness (mm)

Edge Links Width

(mm)

Belt width

(m)

FRCB01

3/4"

2

19.05

5

11

28

2.2

FRCB02

1"

2

25.4

5

11

29

1.7 - 2.2

FRCB03

1"

3

25.4

5

11

36

2.2

FRCB04

1"

3

25.4

5

11

41

1.7 - 2.2

FRCB05

1"

3

25.4

5

11

41

1.7 - 2.2

NOTE: Custom specification is available if you can't find the suitable size.


metal conveyor belt advantage


♦  Smooth and burr-free. The finish is smooth and burr-free for quick and easy cleaning, maximizing production.
♦  High temperature resistance. The stainless steel material can maintain the perfect performance even in the extremely high or low temperature applications.
♦  Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent chemical stability, which are corrosion and rust resistance.

♦  Durable and long service life. The high quality material and rigid structure can ensure the long lifespan of the flexible rod conveyor belt.

♦  Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install and replace.
♦  U-shaped links can  be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the U-shaped conveyor belt are added onto the center of the conveyor belt.

♦  Side guards are available. Side guards can be added on both side of the conveyor belt to prevent products from spillage.


metal conveyor belt application

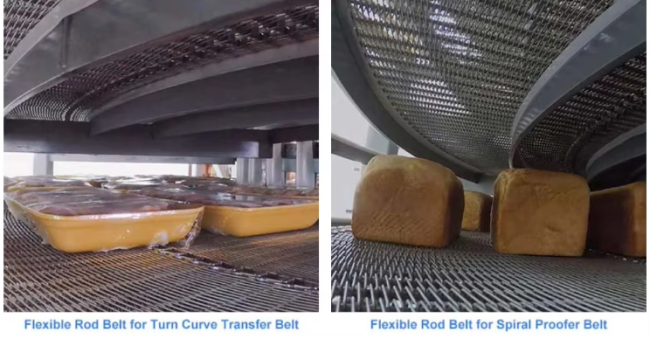

Whether used on spiral or straight conveyors, the belt is particularly suitable for cooking, cooling or freezing products such as bread, pastry, vegetables, potatoes, fish and meat. It can also be used for blanching vegetables, proofing dough, drying, baking or pasteurising.

♦  Spiral Freezer Belt
♦  Spiral Cooler Belt
♦  Spiral Proofer Belt
♦  Spiral Dryer Belt
♦  Spiral Cooker Belt
♦  Spiral Heating Belt
♦  Turn Curve Transfer Belt

♦  Transfer and Packaging Belts
