With 1000 nits of surface luminance and 80% brightness uniformity (measured across 9 key points), it ensures consistent clarity under varying lighting conditions.
(2) Reliable Display Specifications:
Adopts transmissive, normally white a-TFT technology with ST7789P3 driver IC, paired with an 8-bit parallel 8080 MPU interface for easy connection to most microcontrollers.
(3) Optimized Visual Experience:
12 o’clock viewing direction and 250:1 contrast ratio (typical) deliver crisp details, while a fast response time (Tr+Tf = 30ms typical) ensures smooth image transitions.
Operates stably in temperatures from -20℃ to 70℃ and stores safely from -30℃ to 80℃, with a minimum MTBF of 50,000 hours for long-term reliability.
Compliant & Customizable: Meets REACH & RoHS standards, with customizable cover glass options to fit specific application needs—no touch screen function for focused display performance.
| 1 | Display Type | Transmissive, Normally white a-TFT LCD Module (Graphic) |
| 2 | LCD Size (Diagonal) | 2.4 inch |
| 3 | Resolution | 240RGB x320 Dot-matrix |
| 5 | Viewing Direction | 12 o'clock |
| 6 | Driver IC | ST7789P3 |
| 7 | nterface Type | 8-bit parallel interface (8080 MPU) |

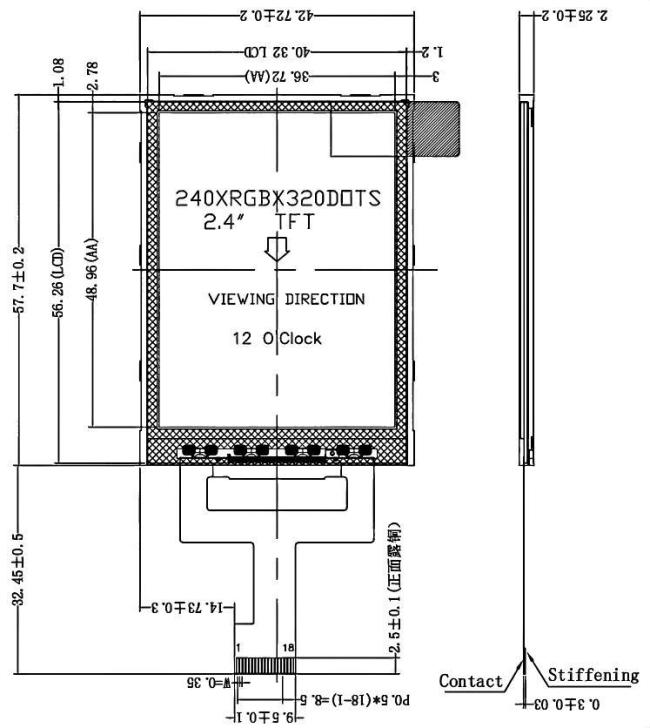

| 8 | Module Dimension (HxVxT,FPC excluded) | 42.72 x 57.70 x 2.25 |
| 9 | LCD Active Area (HxV) | 36.72 x 48.96 |
| 10 | Pixel Pitch (HxV) | 0.153 x 0.153 |
| Pin No. | Symbol | Functional Description |
| 1 | LEDK | LED backlight power supply (Cathode) |
| 2 | LEDA | LEDbacklightpowersupply(Anode) |
| 3 | GND | Power Ground |
| 4 | VCC | Power spply C3.0M |
| 5 | CS | Chip select signalinput pin |
| 6 | RESET | Reset signal input terminal (Active at"L") |
| 7 | RS | Register select signal |
| 8 | WR | Write select signal |
| 9 | D7 | Data Bus |
| 10 | RD | Data read(at rising edge) |
| 11 | D6 | Data Bus |
| 12 | D5 | Data Bus |
| 13 | D4 | Data Bus |
| 14 | TE | Tearing effect output pin |
| 15 | D3 | Data Bus |
| 16 | D2 | Data Bus |
| 17 | D1 | Data Bus |
| 18 | D0 | Data Bus |

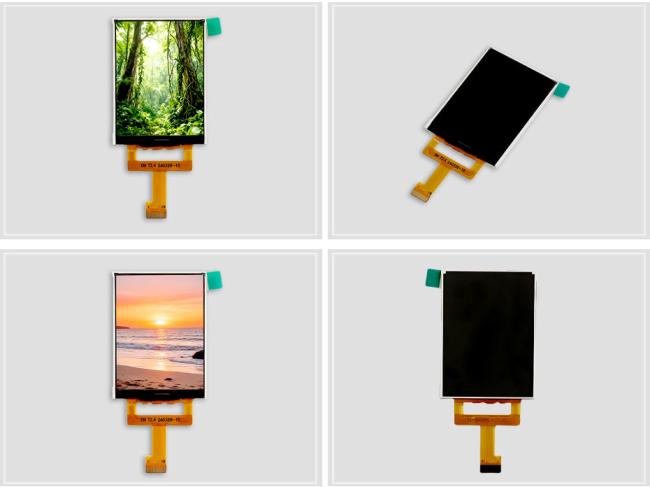

High Brightness TFT LCD Display—your ideal choice for applications demanding clear visibility and stable performance, whether indoors or outdoors. Boasting a 2.4-inch diagonal and 240RGB×320 dot-matrix resolution, this display delivers vivid, sharp image quality that stays striking even in bright environments, making it a standout for diverse electronic projects.
Ready to integrate the JM-PT095-02 into your project? Contact us directly for detailed technical support, pricing, or to place an order!
Perfect for handheld devices, industrial control panels, consumer electronics, embedded prototypes, and more. Its compact dimensions (42.72×57.70×2.25mm, excluding FPC) and easy integration make it a flexible solution for both commercial and industrial projects.
