Mbf64-11 Type Medium-Temperature Box Furnace For Processes Of Degassing Sintering Curing Of Glass And Electronic Components.
Price:
13917
MOQ:
1
Delivery Time:
60 work days
Brand:
Chitherm
Product Description

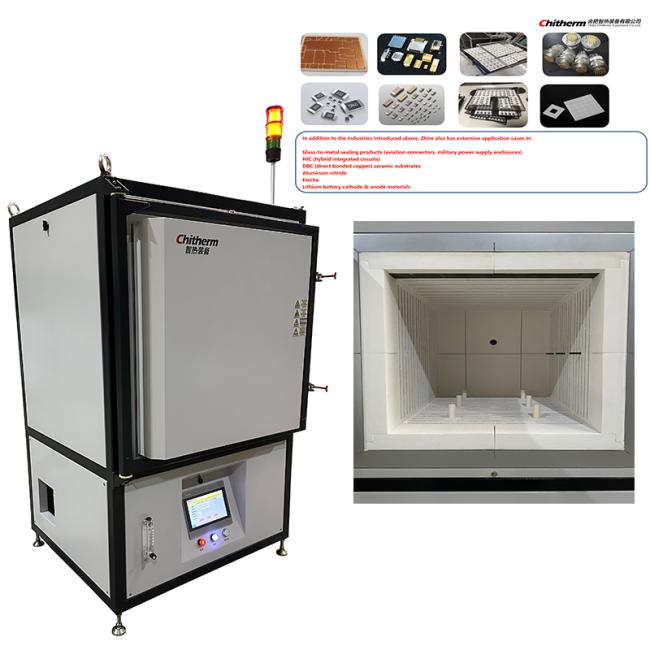

MBF64-11 Medium-Temperature Box Furnace
The MBF64-11 Type Medium-Temperature Box Furnace is designed for degassing, sintering, and curing processes of glass and electronic components, offering reliable performance for laboratory and industrial applications.
Key Features
- Corrosion-resistant heating elements for extended durability
- Uniform temperature field for consistent results
- Intelligent control system with PID self-tuning
- Ideal for ceramic sintering, metal heat treatment, and powder metallurgy
- Optimized for precision materials like electronic ceramics and LTCC
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Temperature | 1000°C |
| Maximum Temperature | 1100°C |
| Furnace Chamber Dimensions | 600×600×600mm (W×H×D) |
| Effective Dimensions | 400×400×400mm (W×H×D) |
| Heating Elements | FEC ceramic fiber heating plates |
| Maximum Heating Power | 24kW |
| Temperature Control Stability | ±1°C |
| Temperature Uniformity | ±3°C within effective area |
Delivery List
| Item | Note | QTY |
|---|---|---|
| Furnace | Basic Composition | 1 PC |
| Certificates of Inspection | Furnace and major components | 1 Set |
| FEC Heater | Key Part | 1 Set |
| Temperature control module | Azbil | 1 PC |
| SSR | Spare | 1 PC |
Facility Requirements
- Indoor installation with temperature range of 0°C to 40°C and humidity ≤80% RH
- Non-contact exhaust system with capacity >10 m³/h
- Three-phase five-wire AC power: 380±10% V, 50±2% Hz
- Dedicated power line without high-power conversion equipment
- Reliable grounding required
- Gas source working pressure: 0.2 to 0.4 MPa
About Hefei Chitherm Equipment Co., Ltd.
Specializing in research, development, and manufacturing of industrial and laboratory furnaces, our product range includes bell furnaces, box furnaces, vacuum furnaces, and more. Our solutions serve advanced ceramics, electronic components, powder metallurgy, new energy, and photovoltaics industries, supporting various thermal treatment processes.
