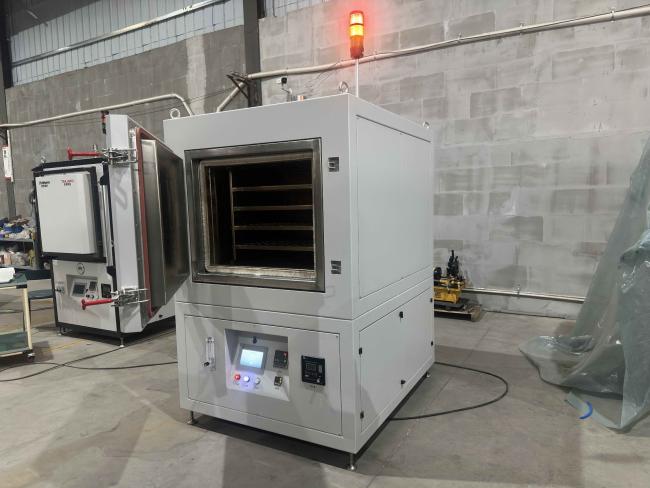

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen
1. Applications:
Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.
2. Mainly Specifics:
| Rated Temp. | 350ºC |
| Max Temp. | 500ºC |
| Effective Dimensions | 600 × 600 × 600mm(W×H×D) |
| Heating Method | Stainless Steel Heater |
| Process Atmosphere | Nitrogen |
| Temperature Control Stability | ±1ºC, with PID parameter self-tuning function |
| Temperature Uniformity | better than ±5ºC (insulation 1 hour at 400ºC test) |
| Thermocouple | Type K |
| Temperature measurement points |
1 point |
| Process Steps | 4 × 10 steps |
| Exhaust | One exhaust port on top |
| Max Heating Power | 18kW |
| Insulation Power | ≤ 12kW |
| Surface Temperature Rise | ≤ 35ºC |
| 3. Delivery List | |||
| Item | Note | QTY | |
| Basic Compositions | Dryer | 1 PC | |
| Certificates of Inspection | Dryer and major purchased components | 1 Set | |
| Technical Documents | Manual instructions, technical documents of major purchased components, etc | 1 Set | |
| Key Parts | Heating Elements | Stainless Steel Heater | 1 Set |
| Thermocouple | WATLOW/THERMOWAY, Type K | 1 PC | |
| Temperature Controller | 1 Set | ||

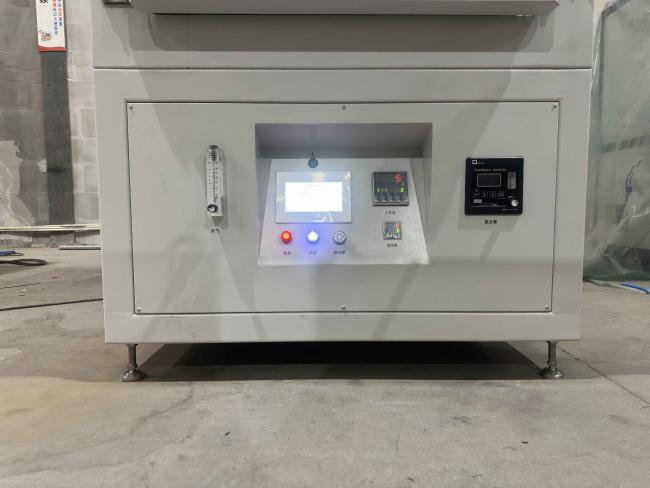

| Monitor | Touch screen | 1 Set | |
| Spares | SSR | 1 PC | |
4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 10m3 /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m3 /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m2 .
4.5 Power conditions: capacity greater than 24kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m2.
