Ztl9815 High Uniformity (±5℃) Bell Jar Sintering Furnace Muffle Furnace
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
Chitherm
Product Description
I. Product Overview

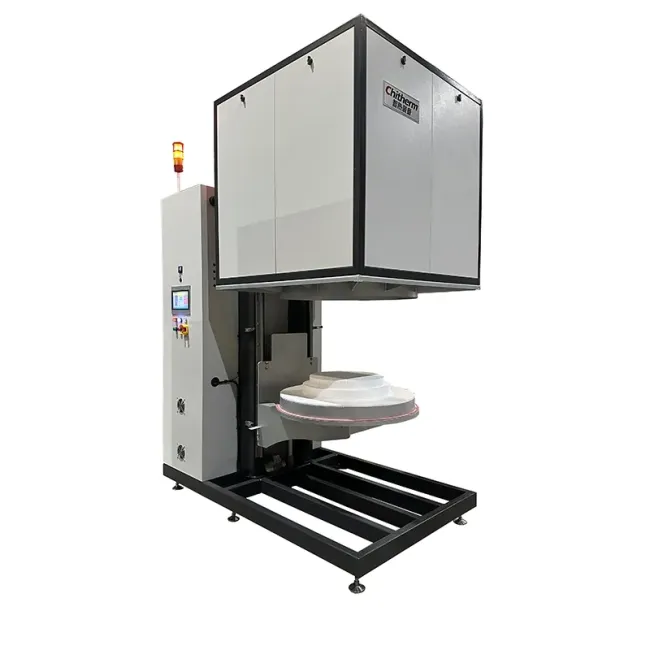

The BF125-17 High-Temperature Bell Furnace is a high-performance, high-precision vertical lifting furnace, specially designed for the sintering and heat treatment processes of high-end materials in high-temperature and high-purity environments. Adopting advanced heating and control systems, this equipment features excellent furnace temperature uniformity, precise temperature control, and safe and reliable operation, making it an ideal choice for the research and development as well as production of new materials.
II. Application Fields
- Sintering of ITO targets
- Sintering of electronic ceramic materials (e.g., MLCC, piezoelectric ceramics)
- Heat treatment of magnetic materials (e.g., ferrites)
- Sintering of ceramic filters and microwave dielectric ceramics
- Other materials requiring high-temperature treatment in inert or air atmospheres
III. Technical Specifications and Basic Configuration
| Item | Technical Parameters and Configuration |
|---|---|
| Temperature Parameters | Rated Temperature: 1600ºC
Maximum Operating Temperature: 1700ºC
|
| Effective Furnace Chamber Area | 500mm (W) × 500mm (H) × 500mm (D) |
| Heating System | Maximum Heating Power: 50 kW
Empty Furnace Holding Power: ≤ 25 kW
Heating Elements: U-shaped silicon-molybdenum rods with reasonable arrangement and long service life
|
| Temperature Control Performance | Furnace Temperature Uniformity: ≤ ±5ºC (tested after 2 hours of constant temperature in empty furnace at 1500ºC)
Temperature Control Accuracy: ≤ ±1ºC (high-temperature constant temperature section)
Heating Rate: ≤ 5ºC/min in the range of 400ºC ~ 1000ºC; ≤ 2ºC/min in the range of 1000ºC ~ 1500ºC
|
| Control System | Control Method: High-performance phase-shift voltage regulation + SCR thyristor module for stable and shock-free power regulation
Temperature Control Instrument: Imported multi-segment program temperature controller from Japan, supporting P.I.D control and self-tuning function
Number of Temperature Control Points: 1 point
Temperature Measuring Thermocouple: R-class
|
| Mechanical Structure | Lifting Method: Lead screw drive for stable operation
Maximum Lifting Stroke: Approx. 800mm
Furnace Body/Trolley Load Capacity: ≤ 1000 kg (including workpieces and carriers)
|
| Exhaust System | An automatically opening and closing exhaust chimney is installed on the top to facilitate the controllable discharge of process waste gas. |
| Safety Protection | Equipped with sound and light alarm and automatic protection functions for faults such as over-temperature, thermocouple breakage, over-current, over-load, over-travel, and deviation. |
| Dimensions and Weight | Equipment Overall Dimensions (approx.): 1740mm (W) × 2780mm (H) × 2505mm (D) (excluding independent control cabinet)
Equipment Net Weight (approx.): 2000 kg
|
IV. Overall Design
The equipment adopts a modular and high-standard design, mainly composed of the following major systems:
Furnace Body System: The furnace chamber is made of high-quality refractory materials and insulation layers to ensure high-temperature strength and low heat loss.
- Metal Frame: A high-strength section steel welded frame with a stable structure, providing support for the furnace body and transmission system.
- Lifting Trolley System: An integrated heavy-duty trolley equipped with a precision lead screw lifting mechanism to ensure stable lifting and accurate positioning of the furnace body.
- Transmission Mechanism: The motor-driven lead screw realizes the stable lifting of the furnace body, and is equipped with limit protection devices.
- Control System: An independent control cabinet integrating temperature control, power regulation, alarm and operation panel, with a user-friendly man-machine interface and high degree of automation.
