Compact Design Hwf100-10nh Atmosphere Sintering Furnace 1100kg Sinter Furnace
1.Application field:
Mainly used for sintering processes of related materials under the protection of nitrogen or nitrogen-hydrogen atmospheres, and can also be applied to sintering processes of related materials under protective atmospheres.
2. Technical Specification:
Product Model: HWF100-10NH
Operating Temperature: 900°C
Maximum Temperature: 1000°C
Effective Chamber Size: 400×400×650mm (W×H×D)
Heating Element: FEC Ceramic Fiber Heater
Processing Atmosphere: Nitrogen/Hydrogen
Exhaust System: Exhaust port installed at the top of the chamber
Cooling Method: Natural cooling with the furnace
Temperature Control Points: Independent control at front, middle, and rear (3 points)
Temperature Control Segments: 9 segments
Temperature Stability: ±1°C, controlled by Yamatake Smart Program Controller with PID auto-tuning function
Temperature Uniformity: Better than ±5°C (tested at 900°C for 1 hour in an empty furnace)
Control Method: Touchscreen + PLC centralized control
Alarm Protection: Audible and visual alarms for overtemperature and thermocouple breakage, with overtemperature alarm power-off protection; loud audible alarm
Surface Temperature Rise: ≤35°C
Maximum Heating Power: 30kW
Heat Preservation Power: ≤15kW
Power Requirements: Capacity above 40kVA, 3-phase 5-wire, 220/380VAC, 50Hz
Reference External Dimensions: 1500×1950×22000mm (W×H×D)
| Table 1 Delivery list | |||
| Item | Note | Qty. | |
| Basic Components | Furnace | 1 SET | |
| inspection certificate | Certificate of major outsourced components | 1 SET | |
| Technical Documents | Instructions, technical documents of the major outsourced parts, etc | 1 SET | |

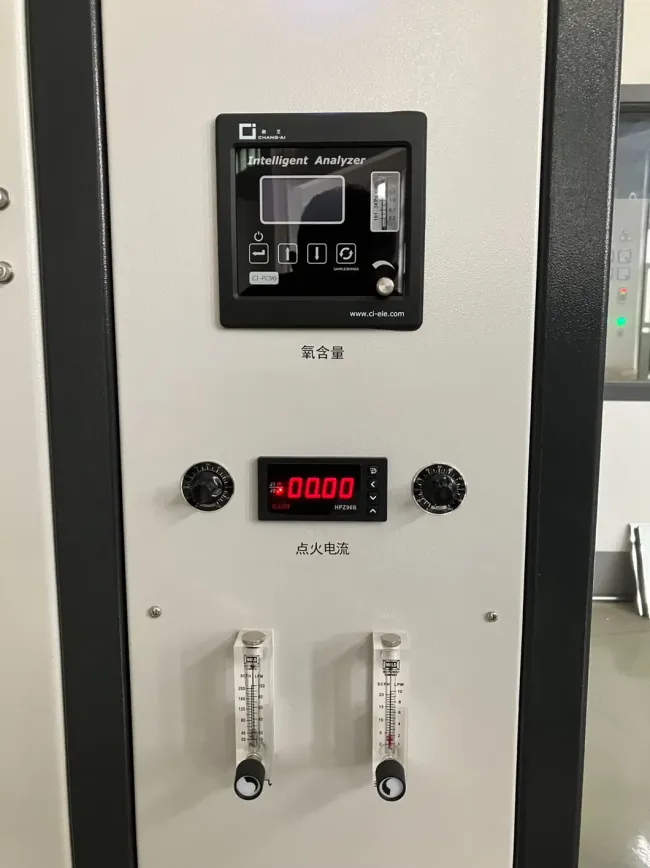

| Key Components | micro-oxygen analyzer | 1 SET | |
| Temperature Controller | 1 SET | ||
| Thermocouple | Type K | 3 PCs | |
| Spare Parts | SSR | 1 PC | |
4. Facility Requirements
- Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
- N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h
- H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 0.2-0.6m3/h
- Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 1-3L/min
- Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 10m3/h
- Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m2;
- Power Condition(TBD): capacity > 40kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
- Installation Site: 3200mm×2500mm×3000mm(D×W×H), with an installation area greater than 8m2.

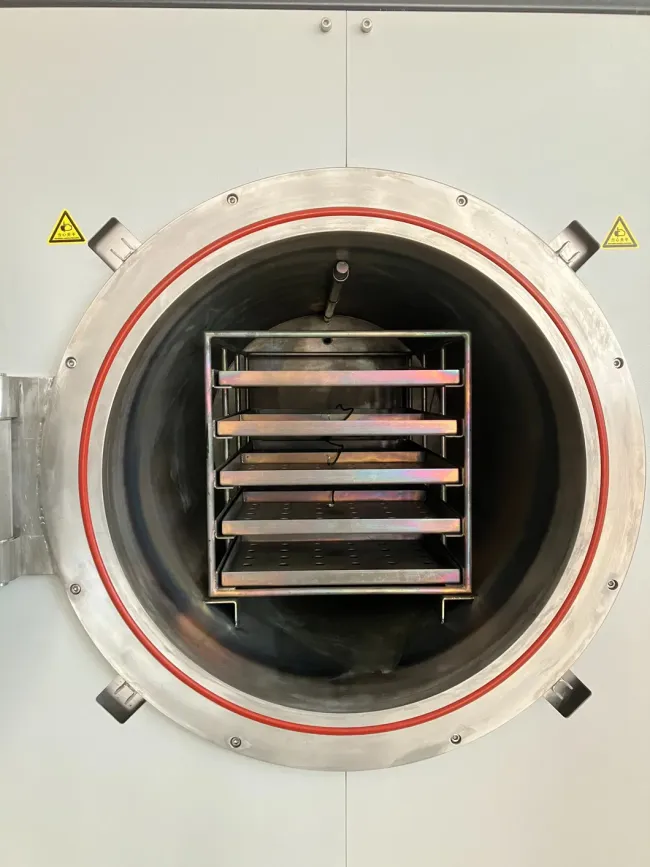

![Compact Design Hwf100-10nh Atmosphere Sintering Furnace 1100kg Sinter Furnace]()

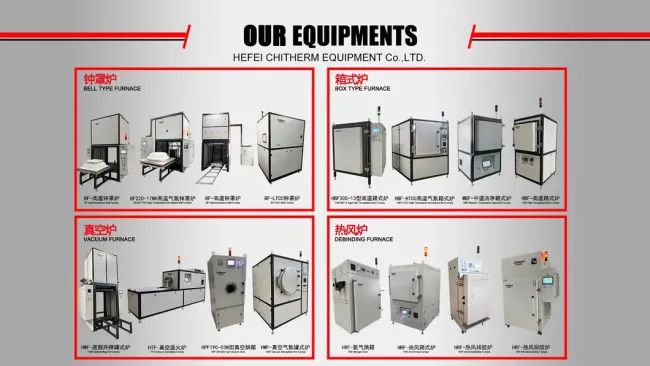

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
![Compact Design Hwf100-10nh Atmosphere Sintering Furnace 1100kg Sinter Furnace]()
![Compact Design Hwf100-10nh Atmosphere Sintering Furnace 1100kg Sinter Furnace]()
![Compact Design Hwf100-10nh Atmosphere Sintering Furnace 1100kg Sinter Furnace]()
