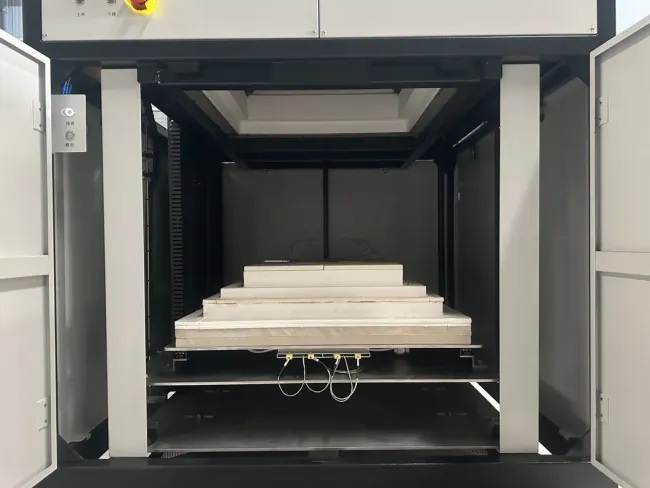

BF216-11 Bell Furnace _ LTCC Debinding & Sintering Furnace for Low-Temperature Co-fired Ceramics
| Model NO. | Bf216-11 |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.
3.2 Maximum temperature: 1050 ℃
3.3 Furnace chamber dimensions: 600 mm × 600 mm × 600 mm (D × W × H)
3.4 Effective working dimensions: 400 mm × 400 mm × 400 mm (D × W × H)
3.5 Heating element: FEC ceramic fiber heating plate
3.6 Maximum heating power: 40 kW
3.7 Holding power at empty furnace: ≤ 30 kW
3.8 Maximum gas preheating power: 4 × 3 kW
3.9 Thermocouple type: K-type;
3.10 Number of temperature control zones: 4 zones;
3.11 Inlet gas preheating: 4 points;
3.12 Temperature monitoring ports: 7 channels;
3.13 Testing port: Reserved curve thermocouple hole at the bottom of the equipment;
3.14 Temperature control accuracy: ≤ ±1 ℃;
3.15 Temperature control mode: Imported temperature control module from Japan;
3.16 Number of heating segments: 20 segments;
3.17 Temperature recording: Real-time sampling and recording of furnace temperature and gas heating temperature by upper computer;
3.18 Heating rate: < 6 ℃/min;
3.19 Temperature uniformity in effective zone: Better than ±3 ℃;
3.20 Surface temperature rise: ≤ 35 ℃;
3.21 Maximum lifting stroke: 600 mm;
| Item | Description | Qty |
|---|---|---|
| Basic Components | Furnace | 1SET |
| Inspection Certificate | Certificate of major outsourced components | 1SET |
| Technical Documents | Instructions, technical documents of the major outsourced parts, etc | 1SET |
| Key Components | Heating Elements | Resistance Coils Heating Plate | 1SET |
| Flowmeter | Azbil/Dwyer/TOFCO/YINHUAN | 1SET |
| Differential Pressure | Dwyer/TOFCO/DUWEI | 1SET |
| Thermocouple | Watlow/THERMOWAY | 1SET |
| Lifting System | Customized | 1SET |
| Temp. Controller | Azbil | 1SET |
| Touch Screen | MCGS (based on Linux) | 1SET |
| Spare Parts | Solid State Relay | XIMADEN | 1PC |
| Heating Elements | Resistance Coils Heating Plate | 1 PC |
- Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 25-70 m3/h
- Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
- Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
- Ground Requirements: horizontal, no obvious vibration, load-bearing>500 kg/m2
- Power: capacity> 70KVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
- Installation Site: 3500mm×3000mm×3000mm (D×W×H), with an installation area greater than 11m2
