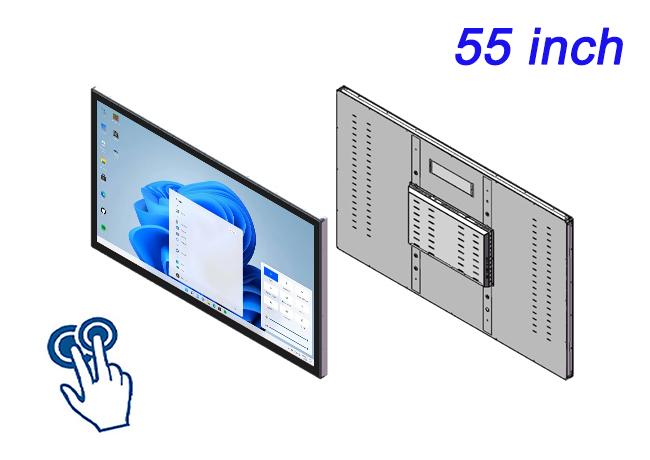

55 Inch Intelligent Display with High and Low Temperature Resistance High Brightness Wall-Mounted Embedded Industrial Display

Embedded Industrial Display: Military-Grade Protection and Dual-Mode Touch Technology

The Embedded Industrial Display delivers precise and reliable interactive solutions for smart manufacturing, medical equipment, food processing, and other industries through military-grade protection and dual-mode touch technology. It deeply integrates industrial aesthetics with functionality, enabling efficient human-machine collaboration in harsh environments.

Structural Design of the Embedded Industrial Display

Constructed with a unibody aluminum alloy panel and a sealed cold-rolled steel rear cover, the device measures only 45mm in thickness and holds an IP65 dust/water resistance rating. Seams are sealed with silicone gaskets, enabling resistance against high-pressure water jets and acidic gas erosion. The surface is protected by 5mm tempered glass with a Mohs hardness rating of 7, offering 3x improved scratch resistance. This makes it suitable for frequent sterilization in food production lines and dust impact in metalworking workshops.

Efficient Heat Dissipation and Wide-Voltage Stable Operation

An innovative stepped cooling architecture combines honeycomb heat dissipation grooves on the cold-rolled rear cover with internal copper heat pipes. This fanless design reduces core temperature by 18°C compared to traditional solutions, with power consumption as low as 12W.

The built-in wide-voltage power module (12-36V DC) tolerates ±30% voltage fluctuations, passes 1000V surge tests and EMC Level 4 anti-interference certification, ensuring 24/7 continuous operation in unstable power environments like substations and mining sites.

Intelligent Expansion and Rapid Deployment

Provides 4× USB 3.1 ports, dual Gigabit Ethernet ports, and programmable GPIO interfaces, supporting expandable modules such as 4G/5G and RFID readers.

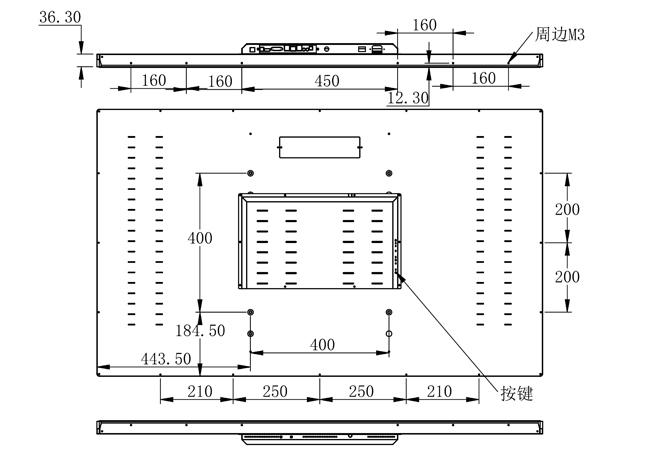

Pre-installed with Windows 10 IoT, it is compatible with industrial software like WinCC and LabVIEW, and supports auto-startup and remote OTA updates. Offers VESA 75/100 wall-mount and rail-embedded installation options, enabling deployment within 5 minutes.
