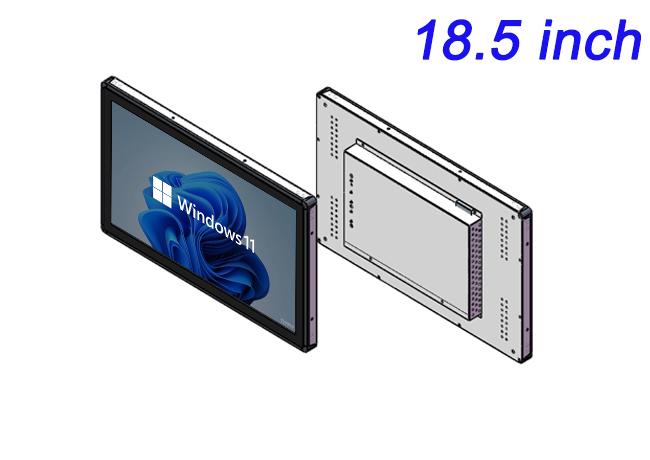

18.5-inch Windows Narrow Edge Ultra-thin Design Wall Mounted Rugged PC Monitor, Manufacturer Wholesale Price

Wide-Temperature Rugged PC Monitor: Military-Grade Endurance and Modular Architecture

The wide-temperature Rugged PC Monitor, with its military-grade weather resistance and modular architecture, serves as an "all-weather control hub" for energy exploration, rail transit, extreme-cold manufacturing, and other scenarios. It delivers stable industrial-grade computing power across extreme temperature ranges from -40°C to 85°C.

Heavy-Duty Protection and Industrial Aesthetics

The body is constructed with a 3mm thickened full-aluminum frame and galvanized sheet metal casing, treated with nano-coating technology for salt spray corrosion resistance meeting the ASTM B117 2000-hour test standard.

An innovative cold and heat isolation chamber design separates the core motherboard and I/O interfaces for zoned temperature control, combined with honeycomb heat dissipation vents to withstand high-temperature radiation in steel mills and low-temperature frost formation in polar research stations.

Wide-Temperature Operation and Anti-Interference Certification

Equipped with wide-temperature solid-state capacitors and industrial-grade chipsets, it passes:

Temperature Limits: -40°C cold start / 85°C full-load continuous operation

Environmental Challenges: 30 thermal cycles (-40℃↔85℃) testing

Anti-Interference Capability: EMC Level 4 certification, zero communication packet loss in 10kV/m strong electromagnetic fields

Supports 9-36V wide-voltage DC input with ±40% voltage fluctuation tolerance, adapting to unstable power scenarios like mobile generator vehicles and mining equipment.

Edge Computing and Agile Deployment

Built-in dual-core Xeon E-series processors support:

System Compatibility: Windows/Linux/Real-time OS (e.g., VxWorks)

Protocol Expansion: EtherCAT, Profinet, CANopen industrial buses

Rapid Deployment: Power-on auto-start, tool-free snap installation, pre-installed equipment health monitoring algorithms

Provides M12 military-grade interfaces (4×USB 3.1, dual Ethernet ports, 6-channel GPIO), with optional 5G modules and edge AI acceleration cards, enabling applications such as smart inspection of oil and gas pipelines and unmanned glacial monitoring stations.

From continuous casting control in steel plants to photovoltaic power stations on plateaus, the Wide-Temperature Rugged PC Monitor redefines the environmental adaptability limits of industrial equipment with its "unhindered by ice or fire" robust performance, providing a "no-compromise" intelligent foundation for extreme scenarios.

if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
