55 inch Embedded 4K Panel Mount Monitor Wholesale Mall Hospital Banking Business Advertising

Price Negotiable
Price: negotiable
MOQ: 1
Delivery Time: 3-5 working days
Brand: ZXTLCD
Product Description

55 inch Embedded 4K Panel Mount Monitor Wholesale Mall Hospital Banking Business Advertising


Embedded Panel Mount Monitor: High Performance with Silent Operation

In the context of modern industrial systems increasingly pursuing intelligence and integration, an Embedded Panel Mount Monitor has become the preferred solution for numerous industrial scenarios due to its high performance and adaptability.


High-Performance Silent Configuration for Uninterrupted Stable Operation

The device comes standard with a low-power, fanless industrial motherboard and an Intel multi-core processor, balancing robust computing power with energy efficiency and quiet operation. It maintains high stability even in heavy-load scenarios requiring 7×24 continuous operation.


Whether for data acquisition, control and dispatch, or human-machine interaction, it handles tasks efficiently.


Fully Sealed Design to Reject Interference

Utilizing an upgraded fully sealed aluminum plate cooling structure, the fanless design delivers a "zero-noise" operation experience, making it suitable for environments with strict noise control requirements such as medical facilities and laboratories. Simultaneously, the device offers anti-light interference, anti-signal interference, and electromagnetic interference protection, allowing safe deployment in harsh scenarios with complex electromagnetic conditions and high dust levels.


High-Standard Craftsmanship for Reliability and Durability

The body is constructed from cold-rolled metal sheet material, providing a sturdy and pressure-resistant housing. Multi-row heat dissipation hole layouts ensure rapid cooling even in high-temperature environments, safeguarding the stability and lifespan of internal components.


The embedded structural design allows tight integration into various cabinets and equipment housings, saving space and enhancing overall coherence.



Whether in industrial automation, equipment control, intelligent terminals, human-machine interfaces, or specialized scenarios with stringent requirements for noise and electromagnetic interference control, the Embedded Panel Mount Monitor delivers stable, quiet, and long-lasting performance, serving as a solid partner on the path to industrial intelligence.


55-Inch Embedded Display Specification Document
LCD Panel Parameters Screen Size 55 Inch

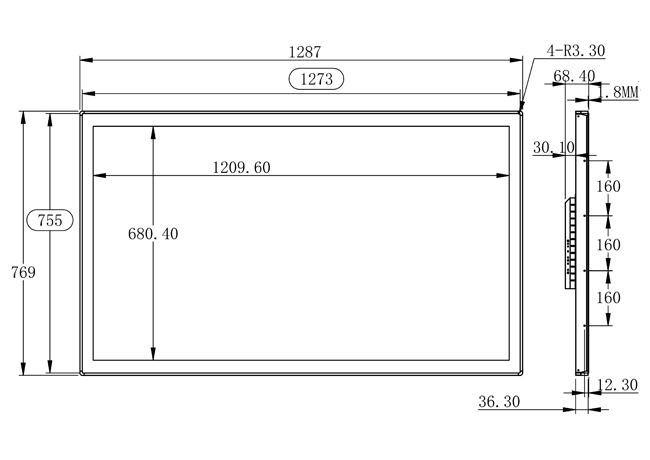

Display Area 1209.6 mm.(Height) X 680.4 (Width)mm.
Aspect Ratio 16 : 9 16 : 9
LCD Type a-Si TFT-LCD Monitor a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080  3840 X 2160
Display Color 16.7m , 72% NTSC 1.06B, 74% NTSC
Brightness 300cd/ 400cd/
Contrast Ratio 1200 : 1 1000 :1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89°  (Type)(CR≥10) 89°/89°/89°/89°(Type)(CR≥10)
Response Time 8ms 6ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio Parameters
(External Speaker Option)
Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 90 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 1287 X 769 X 68.4 mm.
Net Weight 32 Kilogram
Package Size 137.8 X 20.0 X 89.4Centimeter
Gross Package Weight per Unit 35 Kilogram
