55 Inch Factory Direct Sales Ultra-thin High-brightness 4K High-definition Self-luminous Transparent Display OLED Splicing Screens
55 Inch Factory Direct Sales Ultra-thin High-brightness 4K High-definition Self-luminous Transparent Display OLED Splicing Screens
2 x 55 inches
Full HD resolution (1920 x 2160)
43% light transmittance
Stylish aluminum alloy frame design
Product Highlights

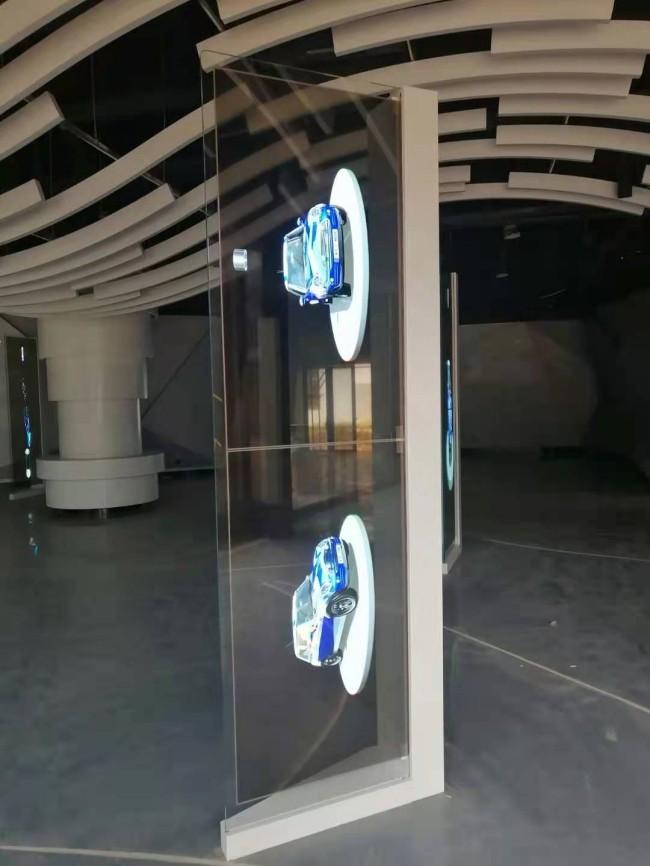

1×2 55-inch OLED video wall: The ZXTLCD-OLED-T55-PG6A-1X2 features a unique 1×2 splicing design, seamlessly spliced from two 55-inch transparent OLED panels to create a larger display area. This configuration not only maximizes space utilization but also enhances visual continuity between screens, creating a spacious screen for displaying various content.
| 55-inch 2x1 splicedOLED transparent screen(ZXTLCD-T55-PG6A) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| Resolution | 1080*3840 |
| Brightness | 150-400nit |
| Contrast Ratio | 135000:1 |
| Viewing angle(up/down/left/right) | 178°(H)/178°(V) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 10bit(R),1.07 billon colors |
| Onboard interface | |
| Input Interface | USB*1 + HDMI*1+network port*1 |
| Output interface | network port*1 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | AC 100-240V |
| Total System Power Consumption | <100W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1263*1912(mm) |
| Overall dimensions | TBD |
| Installation Method | Base installation |
| Net weight / Gross weight | TBD |
| Accessories | |
| Base, power cord, remote control, certificate of conformity and warranty card | |
| other | |
| After-Sales Service | 1-Year Warranty |
