Transparent OLED glass Query display 30 Inch for Retail Store Shopping Mall Wayfinding
The 30-inch Transparent OLED Glass Query Display is a common type of touchscreen self-service device, typically deployed in public spaces or automotive dealerships (4S stores) to enable users to access information, retrieve data, or perform various service-related tasks.
Key features of this floor-standing transparent query kiosk include:
Transparent Design: The display screen utilizes a transparent OLED panel with a light transmittance of 43%, creating a striking, futuristic aesthetic.
Floor-Standing Design: To accommodate users of varying heights and body types, the kiosk features a floor-standing form factor, allowing users to interact with the device comfortably while standing—offering greater flexibility and convenience.
User-Friendly Interface: Featuring a large-format touchscreen interface, the system boasts an intuitive and easy-to-understand design that facilitates effortless navigation and operation for users.
High Stability: Equipped with industrial-grade hardware components and software systems, the device offers exceptional stability and is capable of continuous, uninterrupted operation over extended periods.
Customizability: The system can be tailored to meet the specific requirements of different industries and environments, allowing for the customization of query content, operational workflows, and other parameters to satisfy unique user needs.
| Transparent OLED — 30-Inch Vertical Information Kiosk Model(ZXTLCD-OLED-030V001) | |||
| Parameters | |||
| Panel |
Size | 30 inches | |
| Type | OLED panel technology | ||
| Light transmittance | 43% | ||
| Dynamic contrast ratio | 135000:1 | ||
| Aspect ratio | 16:9 | ||
| Resolution | 1366x768 | ||
| Viewing angle | R/L 120(min) U/D 120(min) | ||
| Brightness | 600/200 cd/m² (Center 1point,typ) | ||
| Number of pixels(HxVx3) | 921600 | ||
| Color gamut | 90% | ||
| Lifespan (typical value) | 30,000 hours | ||
| Operating time | 18 hours/7 days (dynamic images only) | ||
| Orientation | Landscape orientation | ||
| Refresh rate | 120Hz | ||
| Interfaces | Input | HDM IInterfaces*1 | |
| USB Interfaces*1 | |||
| Function | Touch control | None/Capacitive (optional) | |
| Features | Transparent display, pixel-level self-controlling backlight, ultra-fast response | ||
| Power/Environment | Power supply | Operating power supply: AC100-240V, 50/60Hz | |
| Environment | Temperature: 0-40°C, Humidity: 10%-80% | ||
| Dimension | Display size | 676.09*387.48(mm) | |
| Panel size | 676.09*387.48(mm) | ||

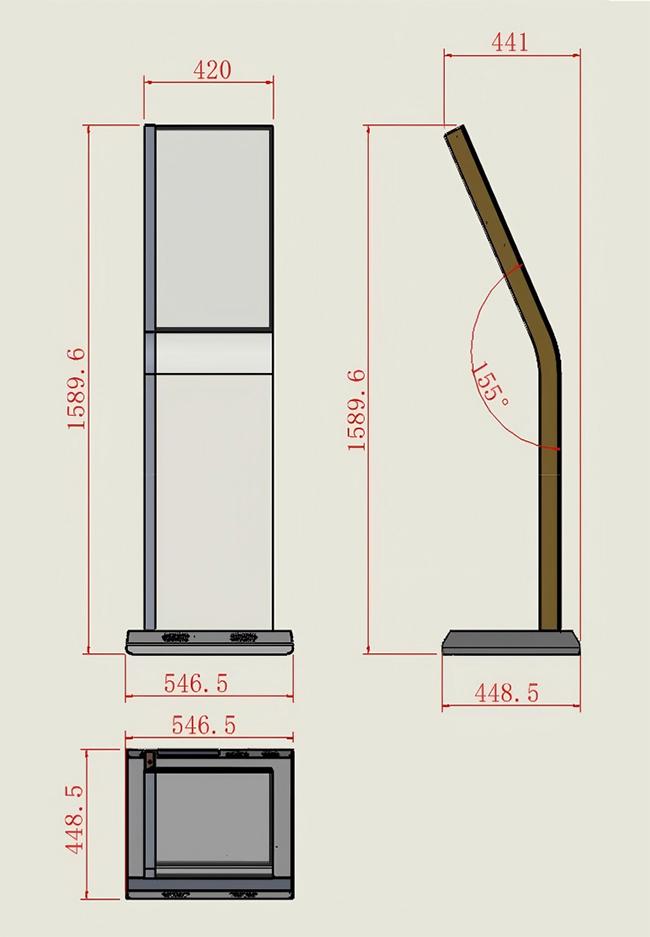

| Overall dimensions | 1589.6*546.5 (mm) | ||
| Power Consumption | Typical value | 190W | |
| DPM | 3W | ||
| Power off | 0.5W | ||
| Packaging | Stand | Main unit box, cover plate, base | |
| Accessories | Remote control, power cord | ||
