55 Inch Ultra-thin High Contrast Advertising Panel Horizontal 2x1 splicing model transparent oled touch screen
Transparent OLED screens seamlessly integrate into modern living spaces, offering a completely different visual experience that will absolutely revolutionize your imagination!
No Backlight Required, Independent Self-Emitting
Transparent OLED screens break away from traditional display formats, achieving superior transparency and image quality. Unlike transparent LCDs, they require no backlight; the screen is self-emissive, boasting nearly 45% transparency and resulting in more delicate image quality.
Self-Emitting OLEDs Achieve Deeper, More Vivid Image Quality
Unlike LCDs, which use an external light source and multiple optical components to achieve color, OLEDs achieve independent light control for each pixel, eliminating the need for a backlight and preventing light leakage. This results in purer, deeper, and more delicate image quality.
| Transparent OLED Video Wall — Horizontal 2x1(ZXTLCD-OLED-055PS001) | |||
| Parameters | |||
| Panel |
Size | 55 inches | |
| Type | OLED panel technology | ||
| Light transmittance | 43% | ||
| Dynamic contrast ratio | 200000:1 | ||
| Aspect ratio | 16:9 | ||
| Resolution | 1920*1080 | ||
| Viewing angle | R/L 120(min) U/D 120(min) | ||
| Brightness | 600/200 cd/m² (Center 1point,typ) | ||
| Number of pixels(HxVx3) | 6220800 | ||
| Color gamut | 90% | ||
| Lifespan (typical value) | 30,000 hours | ||
| Operating time | 18 hours/7 days (dynamic images only) | ||
| Orientation | Landscape orientation | ||
| Refresh rate | 120Hz | ||
| Interfaces | Input | HDM IInterfaces*1 | |
| USB Interfaces*1 | |||
| Ethernet Port x1 | |||
| Output | Ethernet Port x1 | ||
| Bezel Specification | Physical Seam | 11.8mm | |
| Function | Touch control | None/Capacitive (optional) | |
| Features | Transparent display, pixel-level self-controlling backlight, ultra-fast response | ||
| Power/Environment | Power supply | Operating power supply: AC100-240V, 50/60Hz | |
| Environment | Temperature: 0-40°C, Humidity: 10%-80% | ||

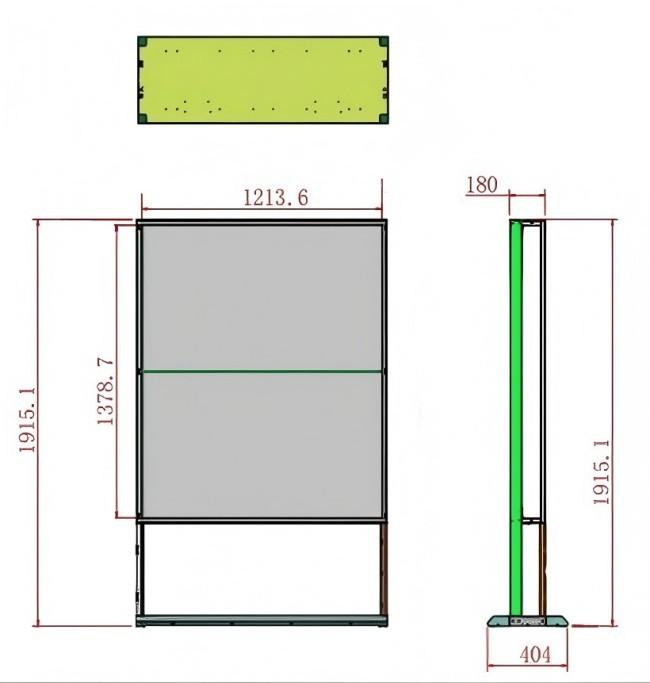

| Dimension | Display size | 1209.6*1398.7(mm) | |
| Panel size | 1263*1432.9(mm) | ||
| Overall dimensions | 1263*1915.1(mm) | ||
| Power Consumption | Typical value | 380W | |
| DPM | 3W | ||
| Power off | 0.5W | ||
| Packaging | Stand | Main unit box, cover plate, base | |
| Accessories | Remote control, power cord | ||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
