21.5" Indoor Standing with lights Self Service Ordering Payment Touch Screen Kiosk Machine for Chain Store Restaurant 80mm Printer

Price Negotiable
Price: negotiable
MOQ: 1
Delivery Time: 3-5 working days
Brand: ZXTLCD
Product Description

21.5" Indoor Standing with lights Self Service Ordering Payment Touch Screen Kiosk Machine for Chain Store Restaurant 80mm Printer


In today's rapidly developing digital catering and retail landscape, self-service ordering kiosks have evolved from "optional equipment" to "standard equipment." Especially in fast-food chains, shopping mall food courts, and new retail scenarios, a high-performance, well-designed ordering terminal not only improves operational efficiency but also directly impacts user experience and brand image. Based on current mainstream market solutions and practical application needs, this 21.5-inch white, illuminated, vertical self-service ordering kiosk is a smart terminal solution designed for high-frequency commercial scenarios.

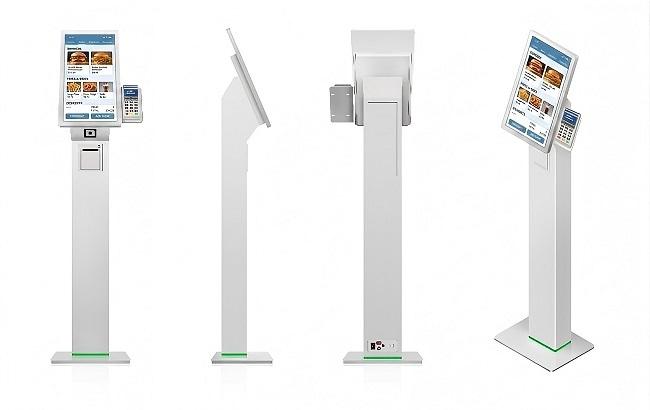

21.5-inch White Standing Ordering Machine With Lights
LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio  16:9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/㎡
Contrast Ratio  3000:1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10℃ ~ +50℃, ≤ 85%RH
Storage temperature & Humidity below20℃ ~ +60℃, ≤ 90%RH
        Mini PC Parameters          (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0℃ ~ 50℃
Storage temperature  below10℃ ~ +60℃
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  Approx. 1500(H) × 500(W) × 380(D) mm
The Gross weight of Unit Package  Approx. 30–40 kg



Firstly, in terms of design, the device adopts a minimalist white industrial design with a slender and stable overall structure, suitable for various commercial space layouts. The bottom features an LED ambient light strip, enhancing the technological feel and increasing the visual appeal of the store, contributing to brand image upgrades. The 21.5-inch vertical screen design conforms to users' natural browsing habits, making the menu display more intuitive and clear, while also optimizing the interaction path for a smoother and more efficient ordering process.


In terms of core functions, the device integrates three key modules: "ordering + payment + printing," forming a complete self-service loop. Users can browse menus, select products, and place orders via a high-definition touchscreen. Payment can be made through various methods such as bank cards, NFC, or QR code scanning. Finally, a receipt is automatically printed by the built-in 80mm thermal printer. This integrated design not only reduces manual intervention but also significantly improves order processing efficiency and accuracy.


In terms of application scenarios, this device is not only suitable for fast-food chains but also widely used in shopping mall food courts, coffee shops, convenience stores, hospitals, airports, and government service halls. With the acceleration of digital transformation, self-service terminals are gradually penetrating more industries, becoming an important tool for improving service efficiency.



It is worth mentioning that these devices typically support OEM/ODM customization services, including exterior colors, brand logos, system interfaces, and functional modules, helping customers create differentiated products and enhance market competitiveness. This flexibility is particularly crucial for brand owners and system integrators.

Overall, this 21.5-inch vertical self-service ordering machine not only conforms to modern aesthetics in design but also achieves a high degree of integration and intelligence in functionality, making it an ideal choice for the digital upgrade of the catering and retail industries. It is not just a device, but also an important gateway to connecting users, improving efficiency, and creating value.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
