21.5 Inch Desktop Restaurant Ordering Machine Self Service Terminal Checkout Payment Kiosk SDK Facial Recognition Multi-OS

Price Negotiable
Price: negotiable
MOQ: 1
Delivery Time: 3-5 working days
Brand: ZXTLCD
Product Description

21.5 Inch Desktop Restaurant Ordering Machine Self Service Terminal Checkout Payment Kiosk SDK Facial Recognition Multi-OS



As brick-and-mortar stores transition to "digital operations," equipment is no longer just a tool, but a crucial node directly involved in the service process. An excellent self-service ordering terminal must not only perform basic transaction functions but also play multiple roles in guiding, showcasing, and converting customers. This 21.5-inch vertical self-service ordering machine is an integrated solution designed with the core goal of "improving overall store efficiency."


In real-world scenarios, a customer's first step often determines their overall experience. Complex ordering processes or long queues can easily lead to customer loss. This device simplifies complex operations into a few clicks through an intuitive interface: browse, select, confirm, and pay. The entire process is logically clear and requires almost no additional guidance to complete the order. This "low learning cost" experience is a key reason for its popularity in high-traffic scenarios.

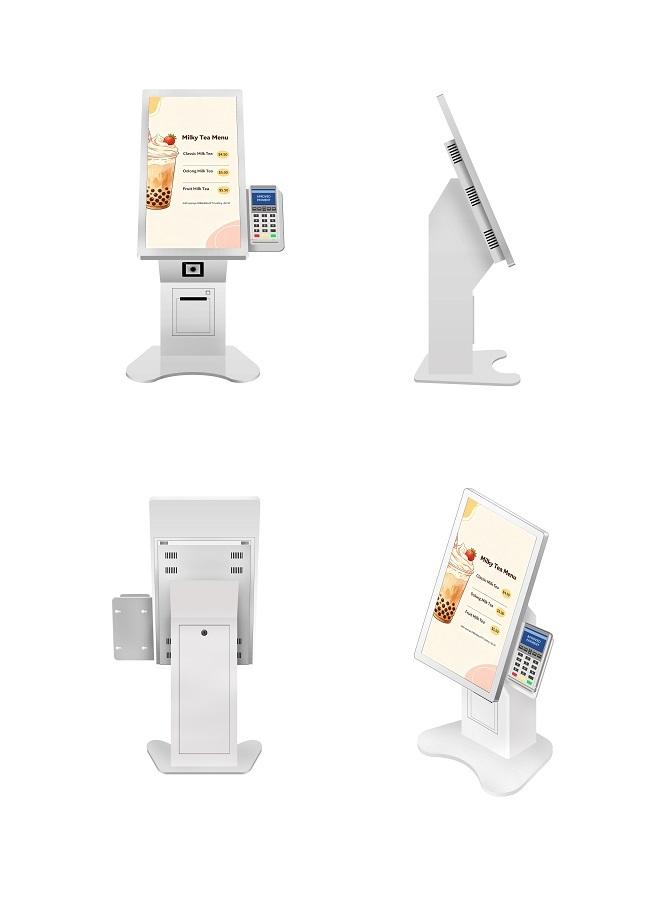

21.5-inch white desktop ordering machine
LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio  16:9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/㎡
Contrast Ratio  3000:1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10℃ ~ +50℃, ≤ 85%RH
Storage temperature & Humidity below20℃ ~ +60℃, ≤ 90%RH
        Mini PC Parameters          (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0℃ ~ 50℃
Storage temperature  below10℃ ~ +60℃
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  Approx. 950(H) × 520(W) × 400(D) mm
The Gross weight of Unit Package  Approx. 15 – 22 kg


In terms of hardware, the device uses a 21.5-inch high-definition display with excellent brightness and clarity, ensuring clear content display even in shopping malls or brightly lit environments. The touchscreen uses capacitive technology, providing fast and accurate response and supporting prolonged, high-frequency use. Whether quickly selecting items or swiping through pages, the experience remains smooth.


Furthermore, the device boasts excellent scalability. By adding scanning modules, cameras, or communication components, more functions can be achieved, such as member identification, remote management, or data collection. This flexible configuration allows the device to extend beyond ordering to a wider range of service scenarios.


From a business perspective, these self-service devices are transforming traditional store operations. They reduce reliance on manual labor while improving service consistency and stability. Through interface guidance and recommendation mechanisms, they can also influence user decision-making, leading to additional sales growth.


Overall, this 21.5-inch vertical self-service ordering machine not only achieves high functional integration but also balances practicality and aesthetics in its design and user experience. It meets the current efficiency needs of stores while providing a foundation for future intelligent upgrades. In the ever-changing business environment, such devices are becoming a crucial bridge connecting customers and services.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
