Ordering Machine Payment for Restaurant Touch Screen Kiosk 18.5 Inch Self Service Pos System
Ordering Machine Payment for Restaurant Touch Screen Kiosk 18.5 Inch Self Service Pos System
With the increasing maturity of traditional fixed ordering equipment, more and more businesses are focusing on "flexible deployment capabilities." Especially in restaurants, shopping malls, and pop-up events, the ability to move equipment directly determines operational efficiency and space utilization. Therefore, adding a wheeled mobile base to the existing 18.5-inch self-service ordering machine has become a major upgrade trend in the current market.

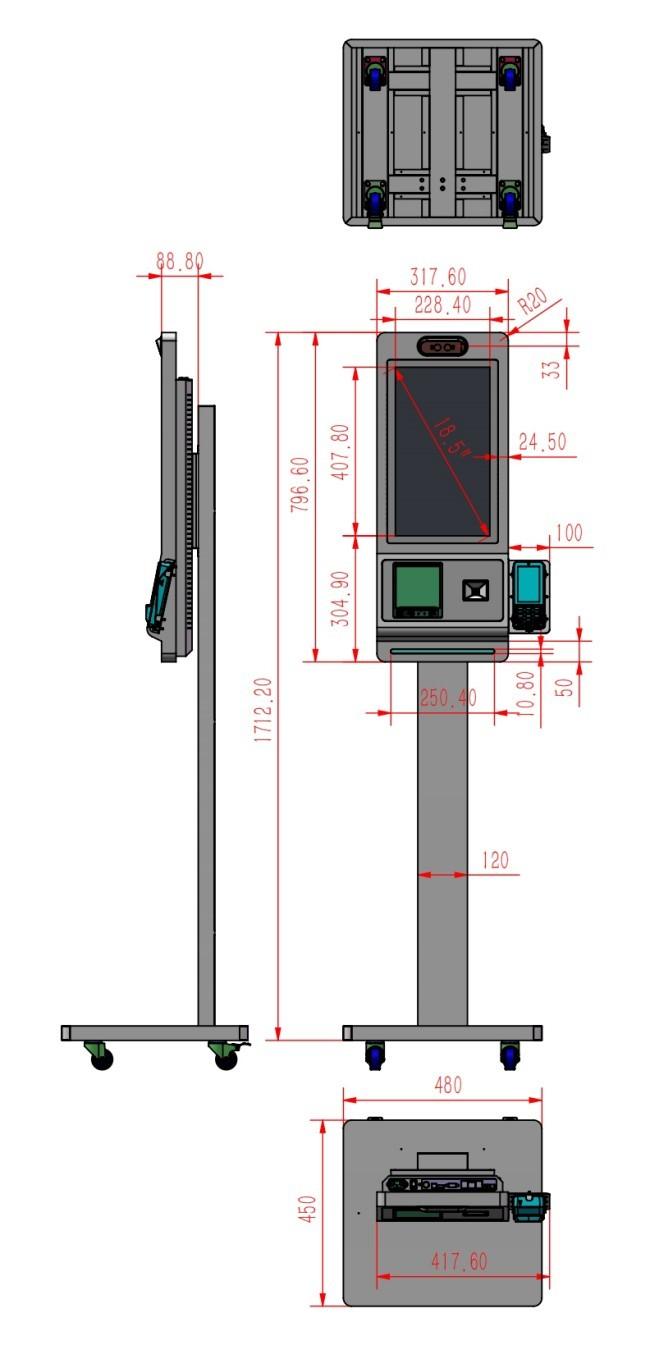

| 18.5-inch self-service machine with base | ||
| LCD Panel Parameters | Screen Size | 18.5 inch |
| Display area | 410(H) X 230(V)mm | |
| Aspect Ratio | 16:9 | |
| LCD Type | a-Si TFT-LCD | |
| Max Resolution | 1920 X 1080 | |
| Display color | 16.7M , 72% NTSC | |
| Brightness | 350 cd/㎡ | |
| Contrast Ratio | 3000:1 | |
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | |
| Response Time | 20ms | |
| LCD Panel Life(hrs) | 60,000(hrs) | |
| Field Frequency | 60Hz | |
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen |
| Touch points | 10 points | |
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
| Anti-microbial protection and Shatterproof Protection | ||
| Optically bonded 3mm glass for low parallax | ||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
| Response speed | < 6ms | |
| Accuracy of touch | More than 90% of the touch area ±2mm | |
| Touch ways | Fingers, touch pen | |
| Output format | The coordinate output | |
| Clicks time | Unlimited | |
| The smallest touch size | 5mm | |
| Long resistance | Yes available | |
| Touch Interfaces | USB | |
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
| Mini PC Parameters(Fan-less Industrial PC) | CPU | Intel Celeron J1900 |
| RAM | 8GB | |
| SSD | 64GB | |
| WIFI | 150Mbps 802.11n wifi integate | |
| Network port | RJ45, 10M/100M Adaptive Ethernet | |
| Interface | 2 * RJ45 GB Ethernet | |
| 2 * RS232 Serial Port | ||
| operating system | Win10 or win11 optional | |
| Onboard interface | HDMI input | 1 |
| VGA input | 1 | |
| DVI input | 1 | |
| USB Type B or Any USB Type optional | 1 | |
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode |
| Receipt Printer | 80mm Thermal printer with cutter | |
| Power | Power supply | AC 100V~240V, 50/60Hz |
| The Max power loss | ≤ 45w | |
| Standby power loss | < 1W | |
| Features | Operating temperature | 0℃ ~ 50℃ |
| Storage temperature | below10℃ ~ +60℃ | |
| Accessories | The length of Power Cable | 1.5m |
| The length of HDMI Cable | 2m | |
| The length of USB-A to USB-B Cable | 1.5m | |
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | |
| Package size | Machine body size | Customized |
| Net weight | Customized | |
| Unit Package size | 317(H) × 480(W) × 1712.20(D) mm | |
| The Gross weight of Unit Package | Approx. 18 – 28 kg | |
This 18.5-inch wheeled self-service ordering machine not only maintains the high-performance configuration of standard ordering equipment but also upgrades the device from a "fixed tool" to a "flexible operational node" through its mobile structural design.
Structurally, the addition of industrial-grade omnidirectional wheels to the bottom of the machine allows it to be easily moved between different areas. Compared to traditional fixed installations, this design is particularly suitable for scenarios requiring frequent layout adjustments, such as shopping mall event areas, pop-up stores, temporary promotional points, or peak-hour crowd control areas. The mobile terminal can quickly adjust its position according to changes in customer flow, thereby optimizing customer movement and improving overall service efficiency. A mobile kiosk is essentially a "mobile business terminal" that can be quickly deployed and used in different locations.
In terms of core functionality, the device maintains a complete self-service loop. An 18.5-inch high-definition touchscreen provides a clear menu display and a smooth operating experience, allowing users to complete the ordering process via touch. A built-in printer can instantly print order receipts and supports QR code scanning, NFC, or bank card payments, integrating ordering and payment. In mainstream industry configurations, these devices typically integrate scanning, printing, and payment modules to improve efficiency and accuracy.
