7*7 Black Coating Stainless Steel Wire Rope 1.5mm 2.0mm For Protective Screening
7*7 Black Coating Stainless Steel Wire Rope 1.5mm 2.0mm For Protective Screening
Descriptions
- The 7x7 black coating stainless steel wire rope is constructed with a 7-strand core, each containing 7 wires, providing excellent flexibility and strength. The black coating enhances its durability and resistance to corrosion.
- This wire rope is highly resistant to rust and environmental wear, making it ideal for outdoor applications. The black coating not only adds an extra layer of protection but also gives it a sleek, professional appearance.
- It is commonly used for protective screening in various industries, including security fencing, animal enclosures, and garden trellises. Its strength and flexibility make it suitable for applications requiring both security and aesthetic appeal.
- The stainless steel construction ensures long-lasting performance with minimal maintenance. Its high tensile strength and flexibility make it a reliable choice for both temporary and permanent installations, ensuring safety and security in various settings.
- In addition to protective screening, this wire rope is also used in marine environments, DIY projects, and architectural designs where a combination of strength, durability, and visual appeal is required. Its resistance to harsh weather conditions makes it a preferred choice for coastal and industrial applications.
Technical Specification
| Construction | Diameter Before Coating (MM) | Diameter After Coating (MM) | Minimum Breaking Force (KN) | Reference Weight (KG/1000M) | |
|---|---|---|---|---|---|
|
AISI 304 06Cr19Ni10 |
AISI 316 06Cr17Ni12Mo2 |
||||
| 0.60 | 0.80 | 0.382 | 0.333 | 2.2 | |
| 0.80 | 1.00 | 0.667 | 0.588 | 3.7 | |
| 1.00 | 1.20 | 1 | 0.91 | 5.6 | |
| 1.20 | 1.50 | 1.32 | 1.21 | 8.2 | |
| 1.50 | 2.00 | 2.26 | 2.05 | 13.4 | |
| 2.00 | 2.50 | 4.02 | 3.63 | 22.8 | |
| 1.00 | 1.20 | 0.95 | 0.814 | 5.6 | |
| 1.20 | 1.50 | 1.27 | 1.17 | 8.2 | |
| 1.50 | 2.00 | 2.25 | 1.81 | 13.4 | |
| 2.00 | 2.50 | 3.82 | 3.24 | 22.8 | |
| 2.50 | 3.00 | 5.58 | 5.1 | 34.7 | |
| 3.00 | 4.00 | 8.03 | 7.31 | 53.8 | |
| 4.00 | 5.00 | 13.9 | 12.2 | 91.3 | |
| 0.80 | 1.00 | 0.461 | 0.384 | 3.0 | |
| 1.00 | 1.20 | 0.637 | 0.599 | 4.6 | |
| 1.20 | 1.50 | 1.2 | 0.915 | 6.8 | |
| 1.50 | 2.00 | 1.67 | 1.47 | 11.2 | |
| 2.00 | 2.50 | 2.94 | 2.55 | 18.8 | |
| 2.50 | 3.00 | 4.1 | 3.45 | 28.4 | |
| 3.00 | 4.00 | 6.37 | 5.39 | 44.8 | |
| 4.00 | 5.00 | 9.51 | 8.9 | 75.3 | |
| 2.00 | 3.00 | 2.94 | 2.55 | 22.3 | |
| 3.00 | 4.00 | 6.37 | 5.39 | 44.8 | |
| 4.00 | 5.00 | 10.7 | 9.51 | 75.3 | |
| 5.00 | 6.00 | 17.4 | 14.9 | 113.8 | |
| 6.00 | 8.00 | 23.5 | 20.8 | 179.0 | |
| 8.00 | 10.00 | 40.1 | 36.1 | 301.0 | |
| 10.00 | 12.00 | 63 | 55 | 455.0 | |
| 12.00 | 14.00 | 85.6 | 75 | 641.0 | |
| 14.00 | 16.00 | 123 | 108 | 859.0 | |

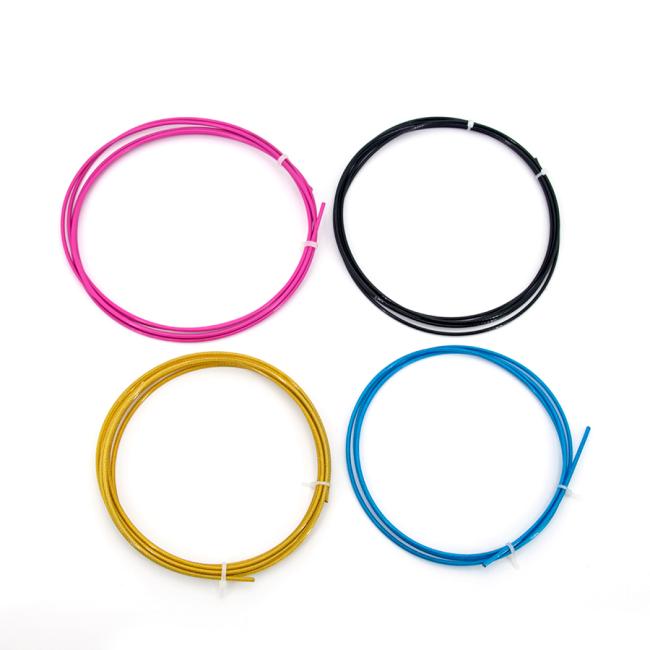

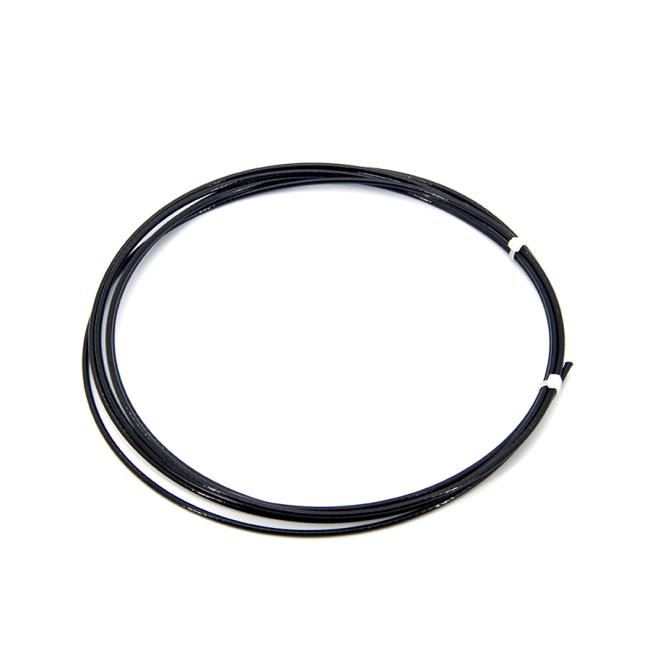

Details Photos
