Fire Resistant Low Voltage Wire Cable XLPE Insulation PVC Sheath Steel Wire Armored
Fire Resistant Low Voltage Cable XLPE Insulation PVC sheath Steel Wire Armored
Application
Apply to power equipment, household appliances, Power tools, construction lighting and machine interiors require flexible or moveable places, and are used as electrical connecting wires or wiring, also suitable for outdoor or places exposed to oild stains.
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:XLPE
- Filler: Non-hygroscopic material
- Inner sheath: PVC
- Armouring: Steel Wire
- Outer Sheath PVC
Characterristic
Voltage Rating: Uo/U:0.6/1kV Um:1.2kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:15D multi core:12D
Specification
|
Spec |
Conductor diameter mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
|||||||
|
Main wire |
Earth wire |
NH |
ZAN |
ZBN |
ZCN |
NH |
ZAN |
ZBN |
ZCN |
|
|
1×10 |
4 |
/ |
12.3 |
12.6 |
12.6 |
12.6 |
347.5 |
355.7 |
355.7 |
355.7 |
|
1×16 |
5 |
/ |
13.3 |
13.6 |
13.6 |
13.6 |
430.7 |
439.6 |
439.6 |
439.6 |
|
1×25 |
5.59 |
/ |
14.3 |
14.6 |
14.6 |
14.6 |
539.7 |
549.3 |
549.3 |
549.3 |
|
1×35 |
6.62 |
/ |
15.3 |
15.6 |
15.6 |
15.6 |
656.0 |
666.2 |
666.2 |
666.2 |
|
1×50 |
7.65 |
/ |
17.7 |
18.0 |
18.0 |
18.0 |
937.1 |
954.4 |
948.9 |
948.9 |
|
1×70 |
9.21 |
/ |
19.7 |
19.7 |
19.7 |
19.7 |
1204.9 |
1219.3 |
1213.1 |
1213.1 |
|
1×95 |
10.78 |
/ |
21.5 |
21.5 |
21.5 |
21.5 |
1499.3 |
1515.5 |
1508.4 |
1508.4 |
|
1×120 |
12.12 |
/ |
23.9 |
23.9 |
23.9 |
23.9 |
1931.7 |
1950.3 |
1941.8 |
1941.8 |
|
1×150 |
13.69 |
/ |
25.9 |
25.9 |
25.9 |
25.9 |
2283.2 |
2303.5 |
2294.3 |
2294.3 |
|
1×185 |
15.21 |
/ |
28.0 |
28.0 |
28.0 |
28.0 |
2709.7 |
2732.4 |
2721.9 |
2721.9 |
|
1×240 |
17.4 |
/ |
30.6 |
30.6 |
30.6 |
30.6 |
3358.9 |
3384.5 |
3372.2 |
3372.2 |
|
1×300 |
19.55 |
/ |
32.9 |
32.9 |
32.9 |
32.9 |
4011.5 |
4039.2 |
4026.0 |
4026.0 |
|
1×400 |
22.05 |
/ |
37.3 |
37.3 |
37.3 |
37.3 |
5225.2 |
5258.8 |
5242.3 |
5242.3 |
|
1×500 |
25 |
/ |
40.8 |
40.8 |
40.8 |
40.8 |
6412.0 |
6449.9 |
6430.8 |
6430.8 |
|
1×630 |
28.4 |
/ |
44.8 |
44.8 |
44.8 |
44.8 |
7924.1 |
7966.8 |
7944.9 |
7944.9 |
|
2×1.5 |
1.37 |
/ |
13.9 |
14.1 |
14.1 |
14.1 |
339.6 |
356.8 |
356.8 |
356.8 |
|
2×2.5 |
1.75 |
/ |
14.6 |
14.9 |
14.9 |
14.9 |
382.7 |
401.6 |
401.6 |
401.6 |
|
2×4 |
2.22 |
/ |
15.5 |
15.7 |
15.7 |
15.7 |
437.4 |
458.2 |
458.2 |
458.2 |
|
2×6 |
2.74 |
/ |
16.5 |
16.8 |
16.8 |
16.8 |
510.2 |
533.4 |
533.4 |
533.4 |
|
2×10 |
4 |
/ |
20.8 |
21.1 |
21.1 |
20.8 |
852.8 |
882.8 |
886.1 |
861.4 |
|
2×16 |
5 |
/ |
22.8 |
23.1 |
23.1 |
22.8 |
1051.4 |
1073.5 |
1077.2 |
1060.9 |
|
2×25 |
5.59 |
/ |
25.8 |
25.8 |
25.8 |
25.8 |
1466.2 |
1484.3 |
1488.4 |
1477.3 |
|
2×35 |
6.62 |
/ |
27.9 |
27.9 |
27.9 |
27.9 |
1750.6 |
1770.5 |
1775.1 |
1762.7 |
|
2×50 |
7.65 |
/ |
30.3 |
30.3 |
30.3 |
30.3 |
2113.2 |
2146.9 |
2135.4 |
2126.5 |
|
2×70 |
9.21 |
/ |
34.2 |
34.2 |
34.2 |
34.2 |
2723.9 |
2763.9 |
2749.5 |
2739.1 |
|
2×95 |
10.78 |
/ |
38.7 |
38.7 |
38.7 |
38.7 |
3697.9 |
3744.6 |
3727.4 |
3715.7 |
|
2×120 |
12.12 |
/ |
41.9 |
41.9 |
41.9 |
41.9 |
4352.3 |
4404.3 |
4384.7 |
4371.8 |
|
2×150 |
13.69 |
/ |
46.1 |
46.1 |
46.1 |
46.1 |
5163.4 |
5199.6 |
5199.6 |
5184.9 |
|
2×185 |
15.21 |
/ |
51.7 |
51.7 |
51.7 |
51.7 |
6669.7 |
6710.9 |
6710.9 |
6694.6 |
|
2×240 |
17.4 |
/ |
56.8 |
56.8 |
56.8 |
56.8 |
8171.3 |
8217.2 |
8217.2 |
8198.9 |
|
2×300 |
19.55 |
/ |
62.0 |
62.0 |
62.0 |
62.0 |
9775.1 |
9826.6 |
9826.6 |
9806.4 |
|
2×400 |
22.05 |
/ |
68.4 |
68.4 |
68.4 |
68.4 |
11861.0 |
11918.3 |
11918.3 |
11895.6 |
|
3×1.5 |
1.37 |
/ |
14.4 |
14.7 |
14.7 |
14.7 |
373.8 |
391.1 |
391.1 |
391.1 |
|
3×2.5 |
1.75 |
/ |
15.2 |
15.5 |
15.5 |
15.5 |
427.0 |
445.8 |
445.8 |
445.8 |
|
3×4 |
2.22 |
/ |
16.2 |
16.4 |
16.4 |
16.4 |
500.5 |
521.2 |
521.2 |
521.2 |
|
3×6 |
2.74 |
/ |
17.3 |
17.5 |
17.5 |
17.5 |
593.5 |
616.5 |
616.5 |
616.5 |
|
3×10 |
4 |
/ |
21.8 |
22.1 |
22.1 |
21.8 |
988.5 |
1019.5 |
1023.0 |
997.5 |
|
3×16 |
5 |
/ |
24.0 |
24.3 |
24.3 |
24.0 |
1253.6 |
1277.0 |
1280.9 |
1263.7 |
|
3×25 |
5.59 |
/ |
27.2 |
27.2 |
27.2 |
27.2 |
1774.1 |
1793.4 |
1797.8 |
1785.8 |
|
3×35 |
6.62 |
/ |
29.4 |
29.4 |
29.4 |
29.4 |
2147.8 |
2169.1 |
2173.9 |
2160.6 |
Contact us for more details

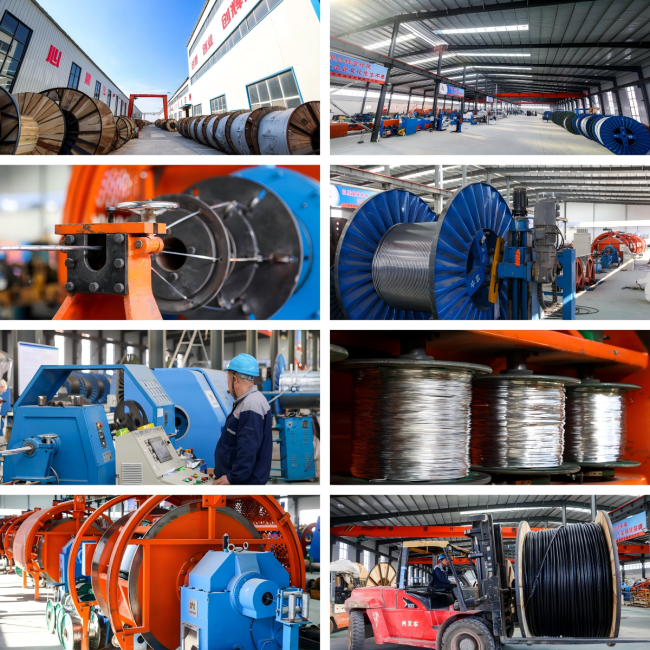

ABOUT US

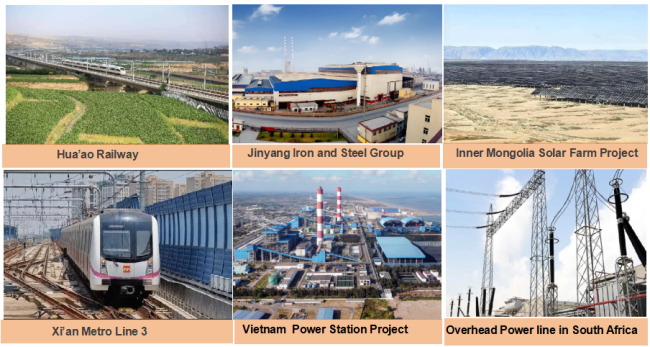

PROJECTS
