1kv CU XLPE PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 LV Cable
1kv CU/XLPE/PVC Low Voltage Power Cable 1x70sqmm IEC60502-1
Application

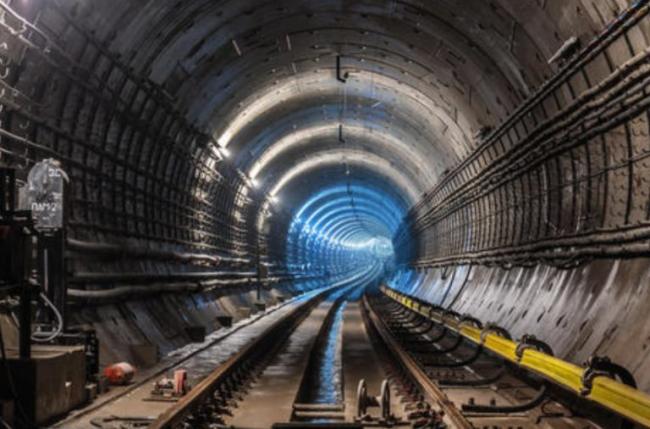

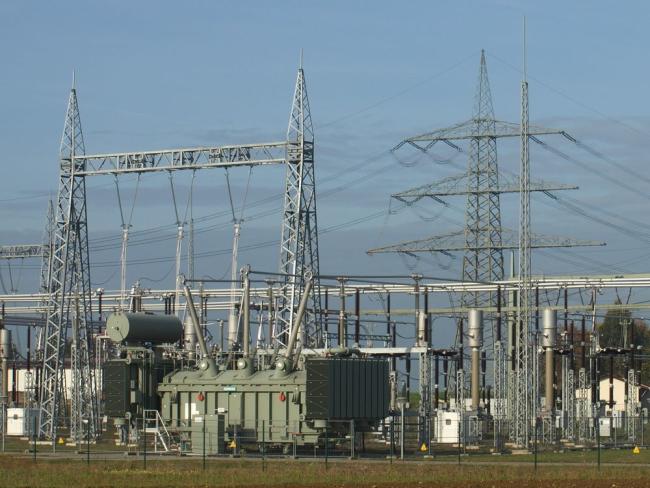

1kv CU/XLPE/PVC Low Voltage Power Cable 1x70sqmm IEC60502-1 UNE 21123 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.
Construction
Conductor:Class 1 or class 2 stranded Copper conductor
Insulation:Cross-Linked Polyethylene(XLPE)
Inner sheath:Polyvinyl chloride (PVC)
Armour:Single core: Steel Tape Multi core: Galvanized Steel Tape
Outer sheath:Polyvinyl chloride (PVC)
Specification
|
Specs mm² |
Conductor diameter |
Nominal thickness of insulation |
Thickness of Lining mm |
Nominal thickness of steel tape m m |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
1×10 |
4.0 |
0.7 |
1.0 |
0.2 |
1.4 |
11.3 |
242 |
|
1×16 |
5.0 |
0.7 |
1.0 |
0.2 |
1.4 |
12.3 |
313 |
|
1×25 |
6.1 |
0.9 |
1.0 |
0.2 |
1.4 |
13.8 |
427 |
|
1×35 |
7.2 |
0.9 |
1.0 |
0.2 |
1.4 |
14.9 |
534 |
|
1×50 |
8.4 |
1.0 |
1.0 |
0.2 |
1.4 |
16.3 |
671 |
|
1×70 |
10.0 |
1.1 |
1.0 |
0.2 |
1.5 |
18.3 |
904 |
|
1×95 |
12.0 |
1.1 |
1.0 |
0.2 |
1.6 |
20.5 |
1187 |
|
1×120 |
13.0 |
1.2 |
1.0 |
0.2 |
1.6 |
21.7 |
1434 |
|
1×150 |
14.9 |
1.4 |
1.0 |
0.2 |
1.7 |
24.2 |
1751 |
|
1×185 |
16.5 |
1.6 |
1.0 |
0.2 |
1.7 |
26.3 |
2125 |
|
1×240 |
18.4 |
1.7 |
1.0 |
0.2 |
1.8 |
28.6 |
2704 |
|
1×300 |
21.0 |
1.8 |
1.0 |
0.2 |
1.9 |
31.6 |
3330 |
|
1×400 |
23.4 |
2.0 |
1.2 |
0.2 |
2.0 |
35.0 |
4227 |
|
1×500 |
26.6 |
2.2 |
1.2 |
0.5 |
2.2 |
40.3 |
5713 |
|
1×630 |
30.0 |
2.4 |
1.2 |
0.5 |
2.3 |
44.3 |
7136 |
About Us

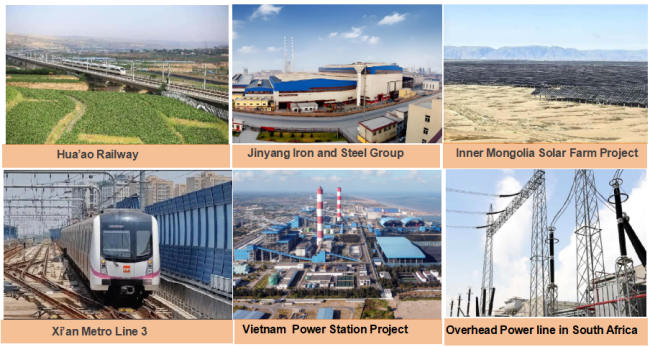

PROJECTS
Package
FAQ
Q1. Are you a manufacture or trading company?

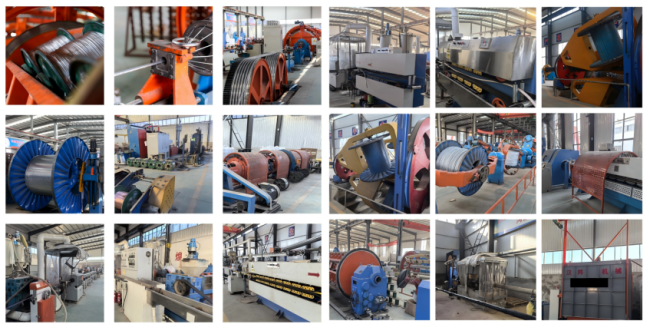

A1.We are a professional manufacturer since 2oo4 and engaged in the production of wire and cable processing.The factory is located in Hebei Province,China,and is a leading enterprise in the local cable industry.
Q2. Can I get free samples?
A2.Of course,we could provide free samples and you charge the shipping cost.
Q3.How long is delivery time?
A3.lt usually takes 3-10days for sample order and 10-30days for big order.
Q4.What is your payment term?
A4.Our payment term is usually T/T30% in advanced,the balance before picking up the goods
Q5.what is the package of the cable?
A5.The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirements.
Q6.Do you accept OEM or ODM service?
A6.Of course,we could customize the products according to your specific requirements.
