CU XLPE STA PVC MV Underground Cable IEC Standard 18/30kV Medium Voltage Wire
CU/XLPE/SWA/PVC Medium Voltage Cable 18/30kV IEC Standard Underground Cable
Application

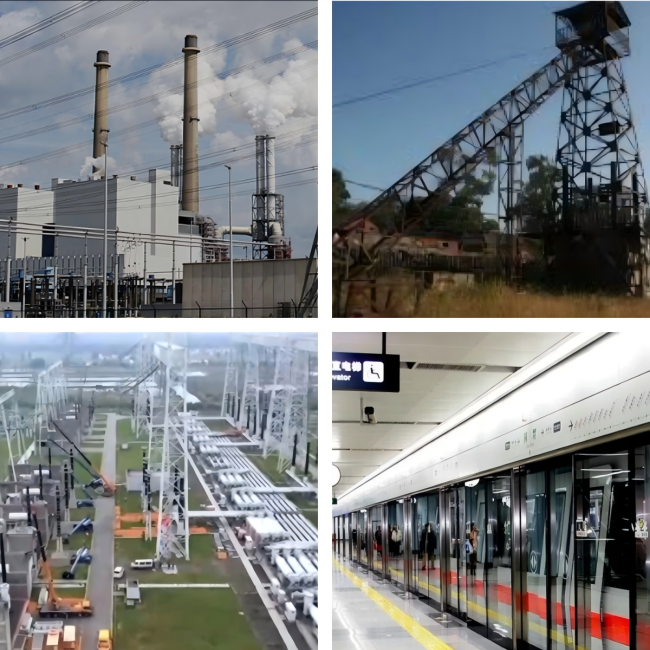

The cables are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground as well as for installation on cable trays for industries, switchboards and power stations
Construction
- Conductor:Class 2 Aluminium/Copper circular, stranded
- Conductor Screen:Semi-conductive XLPE (Cross-Linked Polyethylene)
- Insulation :XLPE (Cross-Linked Polyethylene)
- Insulation Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)
- Metallic Screen :Copper wire screen
- Tape Plastic tape is applied over the screen
- Filler Extruded polymeric material
- Bedding PVC (Polyvinyl Chloride)
- Armour :STA (Galvanized Steel Tape Armoured)
- Sheath :Extruded PVC (Polyvinyl Chloride) type ST2
Product parameters for Three cores
|
Specification |
Outer diameter |
Approx. outer diameter of cable |
Approx. weight of cable |
Max. D.C. resistance of conductor at 20℃ |
||
|
mm2 |
mm |
mm |
kg/km |
Ω/km |
||
|
|
|
|
Cu |
Al |
Cu |
Al |
|
3×25 |
6 |
67.2 |
5274.6 |
4808.3 |
0.727 |
1.2 |
|
3×35 |
7 |
69.6 |
5854 |
5201.1 |
0.524 |
0.868 |
|
3×50 |
8.4 |
72.9 |
6640.8 |
5708.1 |
0.387 |
0.641 |
|
3×70 |
10 |
76.6 |
7532.4 |
6226.7 |
0.268 |
0.443 |
|
3×95 |
11.5 |
81.6 |
9513.2 |
7741 |
0.193 |
0.32 |
|
3×120 |
13 |
85.2 |
10655.6 |
8417.1 |
0.153 |
0.253 |
|
3×150 |
14.5 |
88.8 |
11940.4 |
9142.3 |
0.124 |
0.206 |
|
3×185 |
16.2 |
92.8 |
13416.5 |
9965.6 |
0.0991 |
0.164 |
|
3×240 |
18.4 |
97.9 |
15508.4 |
11031.5 |
0.0754 |
0.125 |
|
3×300 |
20.5 |
103 |
17793.4 |
12197.2 |
0.0601 |
0.1 |
|
3×400 |
23.5 |
110.2 |
21438 |
13976.5 |
0.047 |
0.0778 |
|
3×500 |
26.5 |
118.9 |
25252 |
16101 |
0.0366 |
0.0605 |
