0.6/1KV NCYY NAYY Low Voltage Cable PVC/PVC/CU 3+2 Core 4+1Core

Application

Low voltage cables (typically rated for 0.6/1kV or below) are widely used in power distribution and electrical systems across multiple industries. Key applications include:

Building & Construction,Industrial Facilities,Infrastructure & Utilities,Special Environments

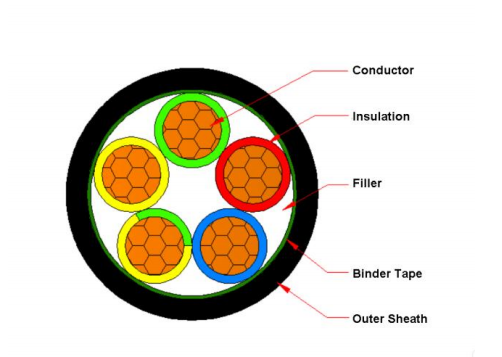

Construction

Conductor:Copper

Insulation:PVC

Filler:  Non-hygroscopic material

Binder tape:Non-hygroscopic material

Sheath : PVC

Characteristics

Voltage Rating Uo/U0.6/1kV
Maximum system voltage12kV
Temperature RatingMaximum operating temperature of conductor: +90℃

Operating ambient temperature:-20C~+45℃

Cable laying temperature: Notless than 0℃

(whenthe ambienttemperature is below 0℃, the cableshould be preheated.)
Minimum Bending RadiusSingle core:20D
Multicire:15D
(D is the actual outer diameter of the cable )

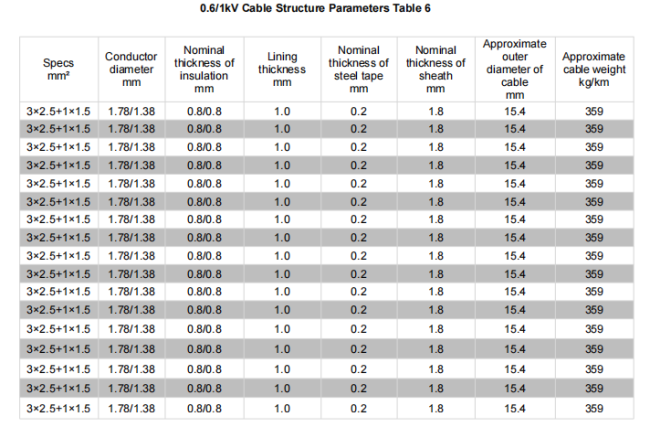

Specification

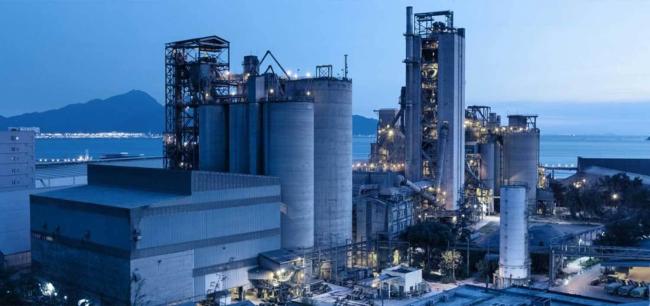

Application Scenarios

Factory

FAQ

1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
