Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502
Medium Voltage Aerial Bundled Cable ABC Cable 6.35/11kV Screened MV ABC Cable to IEC 60502
APPLICATION
Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylence insulated conductors or 90℃ for crosslinked polyethylene(XLPE) insulated conductors.
CONSTRUCTION
Conductor: Circular Compacted Stranded H68 Aluminium ( Class 2)
Conductor Screen:Extruded Semi-conductive Layer
Insulation:XLPE
Insulation Screen:Extruded Semi-conductive Layer
Metallic Screen:Copper wire screen or copper tape screen
Outer Sheath:HDPE
Support Conductor:Galvanized steel wires
STANDARD
IEC 60502
Specification
|
NO.Cores X Nominal Cross Section |
Phase Conductor |
Messenger Suspension Unit |
Continuous Current Rating |
|||
|
Stranding |
Nominal Sectional Area |
Stranding |
Nominal Sectional Area |
Breaking Load |
||
|
No.×mm² |
No.×mm |
mm2 |
No.×mm |
mm2 |
KN |
A |
|
3X50 + 1X25 |
19/1.78 |
50 |
7/3.0 |
50 |
60 |
116 |
|
3X70 + 1X50 |
19/2.14 |
70 |
7/3.15 |
50 |
62 |
210 |
|
3X95+ 1X50 |
19/2.52 |
95 |
7/3.0 |
50 |
60 |
173 |
|
3X185+1X120 |
37/2.52 |
185 |
7/4.67 |
120 |
150 |
259 |
|
3X150 +1X50 |
37/2.25 |
150 |
7/3.15 |
50 |
62 |
365 |
|
3X240 +1X50 |
61/2.25 |
240 |
7/3.15 |
50 |
62 |
500 |

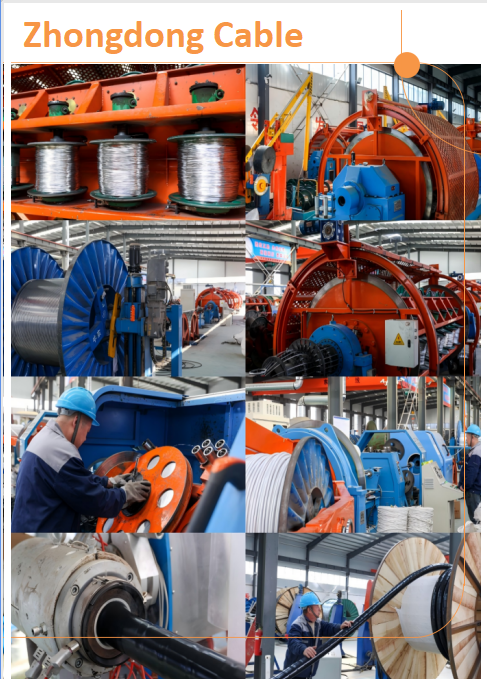

ABOUT US
PACKAGE AND SHIPPING
APPLICATION
FAQ
Q1.Can you provide other standard ABC Cable?
A1: Yes, our cables comply all international standards.
Q2.Are you a factory or trading company?
A2: We are a manufacturer.
Q3:How to get a free sample?
A3.Ofcourse,we could provide free samples and you charge the shipping cost
Q4. How long delivery time?
A4.It usualy take 7-10days for sample order and 25-30days for big order.
Q5.What is your payment term?
A5.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods
Q6.Do you accept OEM service?
A6.Yes,we wil customize the products according to your specific requirements
