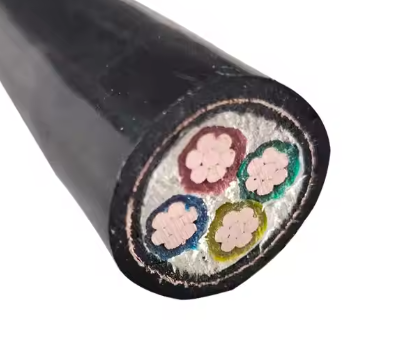

Flame Retardant Low Voltage Cable 4 Core 0.6/1kV CU/XLPE/ STA/PVC Industrial Cable
Flame Retardant Low Voltage Cable 4 Core 0.6/1kV CU/XLPE/ STA/PVC Industrial Cable
APPLICATION
This product is suitable for use in circuits with a rated voltage not exceeding 0.6/1kV, for the purpose of power transmission and distribution.

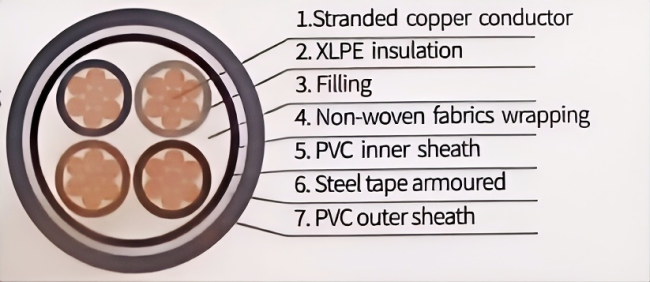

CONSTRUCTION
- Conductor: Class 1 or class 2 stranded Copper conductor
- Insulation: Cross-Linked Polyethylene(XLPE)
- Inner sheath: Polyvinyl chloride (PVC)
- Armour: Single core: Steel Tape Multi core: Galvanized Steel Tape
- Outer sheath: Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating Uo/U: 0.6/1kV
- Maximum system voltage: 12kV
- Maximum operating temperature of conductor:+90℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single core:15D Multicire: 12D
SPECIFICATION
|
Specs mm² |
Conductor diameter |
Nominal thickness of insulation |
Thickness of lining mm |
Nominal thickness of steel tape m m |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
4×1.5 |
1.38 |
0.7 |
1.0 |
0.2 |
1.8 |
14.2 |
299 |
|
4×2.5 |
1.78 |
0.7 |
1.0 |
0.2 |
1.8 |
15.2 |
362 |
|
4×4 |
2.25 |
0.7 |
1.0 |
0.2 |
1.8 |
16.3 |
446 |
|
4×6 |
2.76 |
0.7 |
1.0 |
0.2 |
1.8 |
17.5 |
551 |
|
4×10 |
4.0 |
0.7 |
1.0 |
0.2 |
1.8 |
20.5 |
745 |
|
4×16 |
5.0 |
0.7 |
1.0 |
0.2 |
1.8 |
22.9 |
1019 |
|
4×25 |
6.1 |
0.9 |
1.0 |
0.2 |
1.8 |
26.6 |
1460 |
|
4×35 |
7.2 |
0.9 |
1.0 |
0.2 |
1.8 |
29.4 |
1886 |
|
4×50 |
8.4 |
1.0 |
1.0 |
0.2 |
1.9 |
33.0 |
2441 |
|
4×70 |
10.0 |
1.1 |
1.2 |
0.2 |
2.1 |
38.2 |
3409 |
|
4×95 |
12.0 |
1.1 |
1.2 |
0.5 |
2.3 |
44.8 |
4969 |
|
4×120 |
13.0 |
1.2 |
1.4 |
0.5 |
2.4 |
48.3 |
6063 |
|
4×150 |
14.9 |
1.4 |
1.4 |
0.5 |
2.6 |
54.3 |
7423 |
|
4×185 |
16.5 |
1.6 |
1.6 |
0.5 |
2.7 |
59.8 |
9085 |
|
4×240 |
18.4 |
1.7 |
1.6 |
0.5 |
2.9 |
65.3 |
11516 |
|
4×300 |
21.0 |
1.8 |
1.6 |
0.5 |
3.1 |
72.5 |
14178 |
|
4×400 |
23.4 |
2.0 |
1.8 |
0.5 |
3.4 |
80.3 |
17925 |
