AACSR Overhead Conductor 500 kV Steel-Reinforced Bare Cable
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-30 days based on different Qty
Brand:
AACSR Overhead Conductor
Product Description
All Aluminum Alloy Conductor Steel Reinforced AACSR Overhead Conductors
APPLICATION
AACSR cables are widely used in:
- Long-distance power transmission: Spanning over 100 km with minimal sag
- High-voltage grids: Rated for voltages up to 500 kV (e.g., substation connections)
- Rural electrification: Cost-efficient for remote areas with challenging geography
- Messenger wires: Supporting overhead communication cables in telecom networks
CONSTRUCTION
AACSR (Aluminum Conductor Steel-Reinforced Cable) is a high-capacity overhead transmission line conductor composed of:
- Steel core: Provides mechanical strength to support long spans and reduce sag
- Aluminum layers: High-purity aluminum strands wrapped concentrically around the steel core, ensuring excellent conductivity
CHARACTERISTICS
- High conductivity: Aluminum ensures efficient power transmission with lower resistance
- Lightweight & corrosion-resistant: Aluminum reduces weight and resists environmental degradation
- Cost-effective: Lower material cost compared to copper, ideal for large-scale projects
- Durability: Steel core enhances tensile strength for harsh terrains (e.g., rivers, mountains)
SPECIFICATION
| Code Number | Steel Ratio | Area | No.of Wires | Wire Dia. | Diameter | Linear Mass | Rated Strength | D.C.Resistance at 20℃ | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Alum. | St. | Total | Alum. | St. | Alum. | St. | Core | Cond. | |||||
| 16 | 17 | 18.4 | 3.07 | 21.5 | 6 | 1 | 1.98 | 1.98 | 1.98 | 5.93 | 74.4 | 9.02 | 1.7934 |
| 25 | 17 | 28.8 | 4.80 | 33.6 | 6 | 1 | 2.47 | 2.47 | 2.47 | 7.41 | 116.2 | 13.96 | 1.1478 |
| 40 | 17 | 46.0 | 7.67 | 53.7 | 6 | 1 | 3.13 | 3.13 | 3.13 | 9.38 | 185.9 | 22.02 | 0.7174 |
| 63 | 17 | 72.5 | 12.1 | 84.6 | 6 | 1 | 3.92 | 3.92 | 3.92 | 11.8 | 292.8 | 34.68 | 0.4555 |
| 400 | 6 | 115 | 6.39 | 121 | 18 | 1 | 2.85 | 2.85 | 2.85 | 14.3 | 366.4 | 41.24 | 0.2880 |
| 425 | 6 | 144 | 7.99 | 152 | 18 | 1 | 3.19 | 3.19 | 3.19 | 16.0 | 458.0 | 51.23 | 0.2304 |
| 425 | 16 | 144 | 23.4 | 167 | 26 | 7 | 2.65 | 2.06 | 6.19 | 16.8 | 579.9 | 69.86 | 0.2310 |
| 160 | 6 | 184 | 10.2 | 194 | 18 | 1 | 3.61 | 3.61 | 3.61 | 18.0 | 586.2 | 65.58 | 0.1800 |
| 160 | 16 | 184 | 30.0 | 214 | 26 | 7 | 3.0 | 2.34 | 7.01 | 19.0 | 742.3 | 88.52 | 0.1805 |
| 200 | 6 | 230 | 12.8 | 243 | 18 | 1 | 4.04 | 4.04 | 4.04 | 20.2 | 732.8 | 81.97 | 0.1440 |
| 200 | 16 | 230 | 37.5 | 268 | 26 | 7 | 3.36 | 2.61 | 7.83 | 21.3 | 927.9 | 110.64 | 0.1444 |
| 250 | 10 | 288 | 28.3 | 316 | 22 | 7 | 4.08 | 2.27 | 6.80 | 23.1 | 1013.5 | 117.9 | 0.1154 |
| 250 | 16 | 288 | 46.9 | 335 | 26 | 7 | 3.75 | 2.92 | 8.76 | 23.8 | 1159.8 | 138.31 | 0.1155 |
| 315 | 7 | 363 | 25.1 | 388 | 45 | 7 | 3.20 | 2.14 | 6.41 | 25.6 | 1196.5 | 136.28 | 0.0917 |
| 315 | 16 | 363 | 59.0 | 422 | 26 | 7 | 4.21 | 3.28 | 9.83 | 26.7 | 1461.4 | 171.90 | 0.0917 |
| 400 | 7 | 460 | 31.8 | 492 | 45 | 7 | 3.61 | 2.41 | 7.22 | 28.9 | 1519.4 | 172.10 | 0.0722 |
| 400 | 13 | 460 | 59.7 | 520 | 54 | 7 | 3.29 | 3.29 | 9.88 | 29.7 | 1938.3 | 201.46 | 0.0723 |
| 450 | 7 | 518 | 35.8 | 554 | 45 | 7 | 3.83 | 2.55 | 7.66 | 30.6 | 1709.0 | 193.61 | 0.0642 |
| 450 | 13 | 518 | 67.1 | 585 | 54 | 7 | 3.49 | 3.49 | 10.5 | 31.5 | 1955.6 | 226.64 | 0.0643 |
| 500 | 7 | 575 | 39.8 | 615 | 45 | 7 | 4.04 | 2.69 | 8.07 | 32.3 | 1899.3 | 215.12 | 0.0578 |
| 500 | 13 | 575 | 74.6 | 650 | 54 | 7 | 3.68 | 3.68 | 11.1 | 33.2 | 2172.9 | 251.82 | 0.0578 |
| 560 | 7 | 645 | 44.6 | 689 | 45 | 7 | 4.27 | 2.85 | 8.54 | 34.2 | 2127.2 | 240.93 | 0.0516 |
| 560 | 13 | 645 | 81.6 | 726 | 54 | 19 | 3.90 | 2.34 | 11.7 | 35.1 | 2420.9 | 283.21 | 0.0516 |
| 630 | 4 | 725 | 31.3 | 756 | 72 | 7 | 3.58 | 2.39 | 7.16 | 35.8 | 2248.0 | 249.62 | 0.0459 |
| 630 | 13 | 725 | 91.8 | 817 | 54 | 19 | 4.13 | 2.48 | 12.4 | 37.2 | 2723.5 | 318.61 | 0.0459 |
| 710 | 817 | 35.3 | 852 | 72 | 7 | 3.80 | 2.53 | 7.60 | 38.0 | 2533.4 | 281.32 | 0.0407 | |
| 710 | 13 | 817 | 104 | 921 | 54 | 19 | 4.39 | 2.63 | 13.2 | 39.5 | 3069.4 | 359.06 | 0.0407 |
| 800 | 4 | 921 | 39.8 | 961 | 72 | 7 | 4.04 | 2.69 | 8.07 | 40.4 | 2854.6 | 316.98 | 0.0361 |
| 800 | 8 | 921 | 76.7 | 997 | 84 | 7 | 3.74 | 3.74 | 11.2 | 41.1 | 3145.1 | 356.03 | 0.0362 |
| 900 | 4 | 1036 | 44.8 | 1081 | 72 | 7 | 4.28 | 2.85 | 8.56 | 42.8 | 3211.4 | 356.60 | 0.0321 |
| 900 | 8 | 1036 | 86.3 | 1122 | 84 | 7 | 3.96 | 3.93 | 11.9 | 43.6 | 3538.3 | 400.53 | 0.0322 |
| 1000 | 8 | 1151 | 93.7 | 1245 | 84 | 19 | 4.18 | 2.51 | 12.5 | 45.9 | 3916.8 | 446.37 | 0.0289 |
| 1120 | 8 | 1289 | 105 | 1394 | 84 | 19 | 4.42 | 2.65 | 13.3 | 48.6 | 4386.8 | 499.93 | 0.0258 |
About us

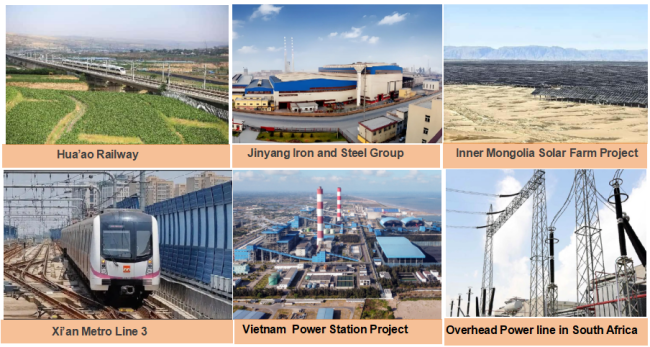

Our Projects
Our Test Center
FAQ
1. What is AACSR cable used for?
AACSR (Aluminum Conductor Steel-Reinforced) is primarily used for high-voltage overhead power transmission (up to 500 kV) due to its strength-to-weight ratio, ideal for long spans across rivers, mountains, or rural areas.
2. Why choose AACSR over ACSR?
AACSR replaces some aluminum strands with aluminum alloy layers, offering higher conductivity (3% better than ACSR) while maintaining tensile strength, reducing energy loss over distances.
3. What's the steel core's role?
The galvanized steel core provides mechanical strength to withstand wind loads, ice, and thermal expansion, minimizing sag in extreme temperatures.
4. What are the temperature limits?
Continuous operating temperature: 90°C (194°F). Emergency overload: 180°C (356°F) for short durations.
5. How to calculate AACSR ampacity?
Use IEEE 738 standards, factoring in ambient temperature, conductor diameter (e.g., 26.8 mm for Drake type), and wind speed.
6. Is AACSR corrosion-resistant?
Yes, but galvanized steel cores in coastal areas may require zinc-aluminum alloy coatings for enhanced longevity.
7. Typical spans for AACSR installation?
Flat terrain: 300-500 meters. Mountains/valleys: 50-200 meters (due to tension variations).
8. Standards compliance?
Meets IEC 61089, ASTM B232, and EN 50182, with optional ISO 9001 certification for quality-controlled manufacturing.
9. Cost comparison with copper cables?
AACSR is 60-70% cheaper than copper, with similar conductivity, making it the preferred choice for utility-scale projects.
10. How to store AACSR reels?
Indoors: Avoid moisture; keep reels on pallets. Outdoors: Cover with UV-resistant tarps, rotate every 3 months to prevent deformation.
