5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard
5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard
APPLICATION
This product is suitable for power transmission and distribution in lines rated voltage not exceeding 0.6/1kV.

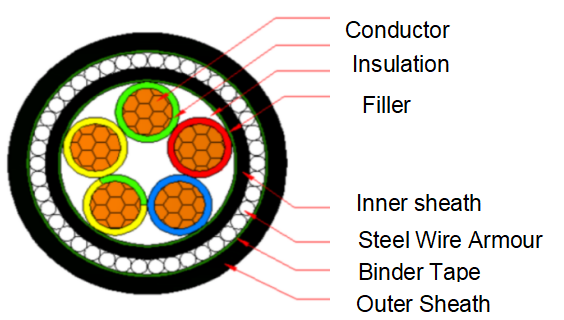

CONSTRUCTION
- Conductor: Class 1/Class 2 stranded Copper conductor
- Insulation: Polyvinyl chloride (PVC)
- Filler(options):Polypropylene mesh tearing rope
- Inner sheath:Polyvinyl chloride (PVC)
- Armour:Aluminum wire or stainless steel wire(single core)galvanized steel wire(multi core)
- Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating Uo/U: 0.6/1kV
- Maximum operating temperature of conductor:+90℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)
Specification
|
Specs |
Conductor diameter |
Nominal thickness of insulation |
Lining thickness |
Nominal thickness of steel wire |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
5×1.5 |
1.38 |
0.8 |
1 |
0.8 |
1.8 |
16.7 |
468 |
|
5×2.5 |
1.78 |
0.8 |
1 |
0.8 |
1.8 |
17.8 |
553 |
|
5×4 |
2.25 |
1 |
1 |
1.25 |
1.8 |
21.1 |
867 |
|
5×6 |
2.76 |
1 |
1 |
1.25 |
1.8 |
22.5 |
1032 |
|
5×10 |
4 |
1 |
1 |
1.6 |
1.8 |
26.5 |
1518 |
|
5×16 |
5 |
1 |
1 |
1.6 |
1.8 |
29.2 |
1932 |
|
5×25 |
6.1 |
1.2 |
1 |
1.6 |
1.9 |
33.7 |
2632 |
|
5×35 |
7.2 |
1.2 |
1.2 |
2 |
2 |
38.2 |
3559 |
|
5×50 |
8.4 |
1.4 |
1.2 |
2 |
2.2 |
43 |
4495 |
|
5×70 |
10 |
1.4 |
1.2 |
2 |
2.3 |
47.5 |
5756 |
|
5×95 |
12 |
1.6 |
1.4 |
2.5 |
2.5 |
55.9 |
8080 |
|
5×120 |
13 |
1.6 |
1.4 |
2.5 |
2.7 |
59 |
9457 |
|
5×150 |
14.9 |
1.8 |
1.6 |
2.5 |
2.9 |
66 |
11477 |
|
5×185 |
16.5 |
2 |
1.6 |
2.5 |
3 |
71.7 |
13732 |
|
5×240 |
18.4 |
2.2 |
1.8 |
3.15 |
3.3 |
80.3 |
18105 |
|
5×300 |
21 |
2.4 |
1.8 |
3.15 |
3.6 |
89 |
22013 |
|
5×400 |
23.4 |
2.6 |
1.8 |
3.15 |
3.9 |
97.2 |
27030 |
