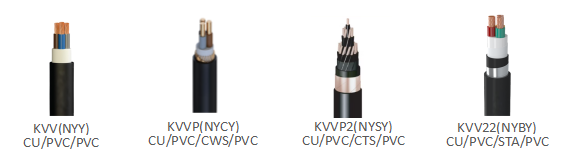

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
APPLICATION
- Underground and industrial power transmission, especially in wet or corrosive environments.
- ndustrial control circuits requiring flexibility and resistance to environmental stress.
- Fixed installations in dry or moderately humid environments, such as control panels.
CONSTRUCTION
- Conductor: Class 5 soft stranded conductor
- Insulation:Polyvinyl chloride (PVC)
- Filler(optional):Polypropylene(PP) Mesh Filling Rope
- Shielded Braid:Soft round copper wire or tin plated round copper wire
- Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating Uo/U450/750V
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -15℃~+40℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
SPECIFICATIONS
|
Specs |
Conductor diameter |
Nominal thickness of insulation |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
2×0.5 |
0.85 |
0.6 |
1.5 |
10.6 |
156.5 |
|
2×0.5(B) |
0.90 |
0.6 |
1.5 |
10.7 |
159.2 |
|
2×0.75 |
1.02 |
0.6 |
1.5 |
11.0 |
168.8 |
|
2×0.75(B) |
1.10 |
0.6 |
1.5 |
11.1 |
172.9 |
|
2×1 |
1.16 |
0.6 |
1.5 |
11.2 |
179.7 |
|
2×1(B) |
1.29 |
0.6 |
1.5 |
11.5 |
186.2 |
|
2×1.5 |
1.41 |
0.7 |
1.5 |
12.2 |
211.5 |
|
2×1.5(B) |
1.56 |
0.7 |
1.5 |
12.5 |
219.2 |
|
2×2.5 |
1.76 |
0.8 |
1.5 |
13.4 |
260.4 |
|
2×2.5(B) |
2.04 |
0.8 |
1.5 |
13.8 |
272.6 |
|
2×4 |
2.22 |
0.8 |
1.5 |
14.3 |
310.7 |
|
2×4(B) |
2.55 |
0.8 |
1.5 |
14.9 |
25.1 |
|
2×6 |
2.74 |
0.8 |
1.5 |
15.3 |
371.7 |
|
2×6(B) |
3.10 |
0.8 |
1.5 |
16.0 |
388.9 |
|
2×10 |
4.00 |
1.0 |
1.5 |
18.6 |
533.9 |
|
3×0.5 |
0.85 |
0.6 |
1.5 |
11.0 |
171.2 |
|
3×0.5(B) |
0.90 |
0.6 |
1.5 |
11.1 |
174.4 |
|
3×0.75 |
1.02 |
0.6 |
1.5 |
11.3 |
186.5 |
|
3×0.75(B) |
1.10 |
0.6 |
1.5 |
11.5 |
191.4 |
|
3×1 |
1.16 |
0.6 |
1.5 |
11.6 |
200.6 |
|
3×1(B) |
1.29 |
0.6 |
1.5 |
11.9 |
208.0 |
|
3×1.5 |
1.41 |
0.7 |
1.5 |
12.6 |
240.0 |
|
3×1.5(B) |
1.56 |
0.7 |
1.5 |
12.9 |
248.8 |
|
3×2.5 |
1.76 |
0.8 |
1.5 |
13.9 |
02.4 |
|
3×2.5(B) |
2.04 |
0.8 |
1.5 |
14.4 |
316.5 |
|
3×4 |
2.22 |
0.8 |
1.5 |
15.0 |
369.0 |
|
3×4(B) |
2.55 |
0.8 |
1.5 |
15.5 |
385.7 |
|
3×6 |
2.74 |
0.8 |
1.5 |
16.0 |
451.0 |
|
3×6(B) |
3.10 |
0.8 |
1.5 |
16.7 |
470.8 |
|
3×10 |
4.00 |
1.0 |
1.5 |
19.6 |
662.2 |
|
4×0.5 |
0.85 |
0.6 |
1.5 |
11.5 |
190.5 |
|
4×0.5(B) |
0.90 |
0.6 |
1.5 |
11.6 |
194.2 |
|
4×0.75 |
1.02 |
0.6 |
1.5 |
11.9 |
209.6 |
|
4×0.75(B) |
1.10 |
0.6 |
1.5 |
12.1 |
215.0 |
|
4×1 |
1.16 |
0.6 |
1.5 |
12.3 |
226.9 |
|
4×1(B) |
1.29 |
0.6 |
1.5 |
12.6 |
235.4 |
|
4×1.5 |
1.41 |
0.7 |
1.5 |
13.4 |
275.1 |
|
4×1.5(B) |
1.56 |
0.7 |
1.5 |
13.7 |
285.6 |
|
4×2.5 |
1.76 |
0.8 |
1.5 |
14.9 |
352.8 |
