64/110kV HV High Voltage Power Cable 1X630mm IEC 60840 IEC 62067
64/110kV HV High Voltage Power Cable 1X630mm IEC 60840 IEC 62067
APPLICATION
- Urban Power Distribution: Transmits electricity efficiently in densely populated areas.
- Industrial Power Supply: Supports large-scale industrial facilities with high energy demands.
- Renewable Energy Integration: Connects wind/solar farms to the grid.
CONSTRUCTION
- Conductor: Stranded circular or segmental (Milliken) compacted copper conductor
- Conductor shield:Semi-conductive shield
- Insulation: Cross-Linked Polyethylene(XLPE)
- Insulation shield: Semi-conductive shield
- Metal shielding layer:Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape
- Binder tape:Non-woven fabrics
- Metal Laminate Foil: Aluminum laminated tape
- Outer sheath: PE
STANDARD
IEC 60840 IEC 62067
CHARACTERISTIC
- Voltage Rating Uo/U: 64/110kV(123kV)
- Continuous Operation: +90°C Conductor Temp
- Emergency Overload:+105°C Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
- Short Circuit:+250°C Conductor Temp (for calculated duration, typically 1-5s)
- Installation ≥ 0°C
- Ambient Operation ≥ -40°C
PARAMETERS
|
Conductor |
Insulation |
Nominal Area of Copper Wires |
Outer Jacket |
||||||||||||
|
Nominal |
Max.DC |
Max.AC |
Nominal Thickness of Insulation |
Nominal |
Approx. |
Approx. |
|||||||||
|
Cond. |
XLPE |
Ins. |
|||||||||||||
|
mm² |
Ω/km |
Ω/km |
mm |
mm |
mm |
mm² |
mm |
mm |
kg/m |
||||||
|
300 R |
0.0601 |
0.0787 |
1.2 |
15 |
1 |
95 |
3.5 |
67.9 |
6.47 |
||||||
|
400 R |
0.047 |
0.0627 |
1.2 |
15 |
1 |
95 |
3.5 |
70.5 |
7.41 |
||||||
|
500 R |
0.0366 |
0.0502 |
1.2 |
15 |
1 |
95 |
4 |
74.9 |
8.79 |
||||||
|
630 R |
0.0283 |
0.0407 |
1.2 |
15 |
1 |
95 |
4 |
78.4 |
10.21 |
||||||
|
800 R |
0.0221 |
0.0338 |
1.2 |
15 |
1 |
95 |
4 |
82.4 |
12.17 |
||||||
|
1000 S |
0.0176 |
0.024 |
1.5 |
15 |
1.2 |
95 |
4 |
92.1 |
14.74 |
||||||
|
1200 S |
0.0151 |
0.0211 |
1.5 |
15 |
1.2 |
95 |
4.5 |
97.1 |
17 |
||||||
|
1400 S |
0.0129 |
0.0185 |
1.5 |
15 |
1.2 |
95 |
4.5 |
99.1 |
18.99 |
||||||
|
1600 S |
0.0113 |
0.0168 |
1.5 |
15 |
1.2 |
95 |
4.5 |
103.1 |
20.72 |
||||||
|
2000 S |
0.009 |
0.0143 |
1.5 |
15 |
1.2 |
95 |
4.5 |
108.1 |
24.42 |
||||||
|
2500 S |
0.0072 |
0.0125 |
1.5 |
15 |
1.2 |
95 |
4.5 |
116.1 |
29.99 |
||||||
OUR FACTORY

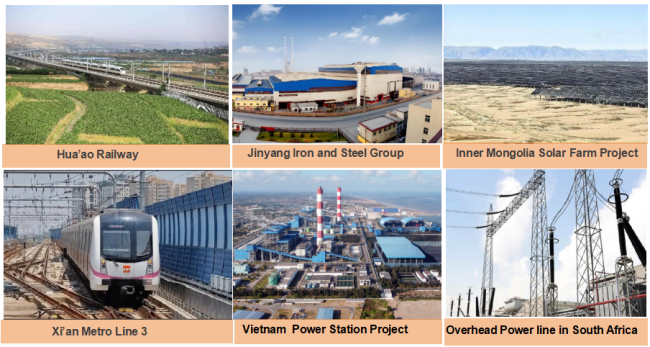

PROJECT

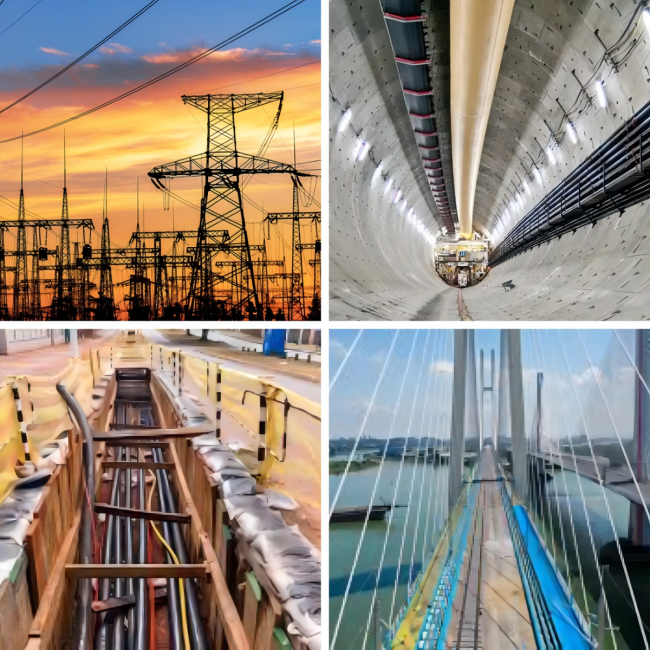

APPLICATION
CERTIFICATES
FAQ
What is the primary application of a 64/110kV 1x630mm² HV power cable?
Designed for high-voltage power transmission in urban grids, industrial zones, and renewable energy projects (e.g., wind/solar farms).
Which international standards does this cable comply with?
Meets IEC 60840 (AC testing) and IEC 62067 (DC testing) for reliability in both AC and DC systems.
What conductor material is used in this cable?
Typically employs high-purity copper or aluminum conductors for low resistance and high conductivity.
How is the insulation layer designed for 110kV?
Features cross-linked polyethylene (XLPE) insulation, ensuring durability and resistance to high temperatures and electrical stress.
What are the voltage ratings (U₀/U/Um) for this cable?
Rated at 64/110kV (U₀: 64kV, U: 110kV, Um: 126kV), suitable for long-distance transmission.
Can this cable be used in underground installations?
Yes, it is designed for direct burial or ducting, with armor options (e.g., steel wire) for mechanical protection.
How is the shielding layer structured for high voltage?
Includes semi-conductive layers and metallic shielding (e.g., copper tape) to control electric fields and prevent corona discharge.
What are the bending radius requirements during installation?
Minimum bending radius is typically 20 times the cable diameter to avoid damage to the insulation.
How does this cable support renewable energy integration?
Enables efficient connection of large-scale wind or solar farms to the grid, minimizing energy losses over long distances.
