Fire Resistant XLPE Insulated Power Cable CU/XLPE/STA/PE for Fire Safety Applications
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
10work days
Brand:
XLPE Insulated Power Cable
Product Description
Fire Resistant XLPE Insulated Power Cable CU/XLPE/STA/PE for Fire Safety Applications
This fire-resistant cable is designed for low-voltage power distribution systems where fire safety is critical, rated for 0.6/1kV applications.
Applications
This specialized power cable is designed for critical fire safety applications where reliable performance under extreme conditions is paramount. Its core application lies in emergency power supply systems.
Construction Details
- Conductor: Class 1/Class 2 stranded copper conductor
- Refractory layer: Single-sided gold mica tape
- Insulation: XLPE (Cross-linked polyethylene)
- Filler options: Polypropylene mesh tear rope or flame-retardant filling
-
Armoring: Stainless steel tape (single - core cable, 63) Galvanized steel tape (multi - core cable, 23)
- Outer sheath: Polyethylene (PE)
Product Parameters - Three Core Cables
| Spec (mm²) | Conductor Diameter (mm) | Approx Outer Diameter (mm) | Approx Cable Weight (kg/km) |
|---|---|---|---|
| 3*10 | 4 | 17.0-17.3 | 460.1-518.4 |
| 3*16 | 5 | 19.2-19.5 | 652.7-727.3 |
| 3*25 | 5.59 | 21.7 | 941.7-1030.0 |
| 3*35 | 6.62 | 23.9 | 1236.9-1346.2 |
| 3*50 | 7.65 | 26.5-27.4 | 1616.8-1797.7 |
| 3*70 | 9.21 | 30.6-31.4 | 2264.6-2498.7 |
| 3*95 | 10.78 | 34.1-35.0 | 3043.3-3330.1 |
| 3*120 | 12.12 | 37.6-38.5 | 3791.7-4135.4 |
| 3*150 | 13.69 | 42.3-43.1 | 4690.4-5116.1 |
| 3*185 | 15.21 | 46.6-47.5 | 5819.2-6331.8 |
| 3*240 | 17.4 | 52.2-53.0 | 7547.6-8180.2 |
| 3*300 | 19.55 | 57.6 | 9389.3-10057.7 |
| 3*400 | 22.05 | 64.4 | 11855.9-12691.4 |
Four Core Cables
| Spec (mm²) | Conductor Diameter (mm) | Approx Outer Diameter (mm) | Approx Cable Weight (kg/km) |
|---|---|---|---|
| 4*1.5 | 1.37 | 11.7-12.4 | 165.3-180.3 |
| 4*2.5 | 1.75 | 12.6-13.4 | 211.9-228.7 |
| 4*4 | 2.22 | 13.7-14.0 | 279.1-298.0 |
| 4*6 | 2.74 | 14.9-15.2 | 370.4-392.0 |
| 4*10 | 4 | 18.7-19.0 | 582.0-646.6 |
| 4*16 | 5 | 21.4 | 838.5-916.4 |
| 4*25 | 5.59 | 23.8 | 1212.3-1310.8 |
| 4*35 | 6.62 | 26.3 | 1599.7-1721.4 |
| 4*50 | 7.65 | 29.5-30.3 | 2110.8-2313.0 |
| 4*70 | 9.21 | 33.9-34.8 | 2961.9-3223.5 |
| 4*95 | 10.78 | 37.9-38.8 | 3987.3-4307.2 |
| 4*120 | 12.12 | 42.0-42.8 | 4988.0-5372.8 |
| 4*150 | 13.69 | 47.0-47.8 | 6147.6-6622.7 |
| 4*185 | 15.21 | 52.0-52.8 | 7653.0-8226.3 |
| 4*240 | 17.4 | 58.2-59.0 | 9929.3-10636.8 |
| 4*300 | 19.55 | 64.2 | 12353.7-13101.3 |
| 4*400 | 22.05 | 71.8 | 15597.2-16532.3 |
Five Core Cables
| Spec (mm²) | Conductor Diameter (mm) | Approx Outer Diameter (mm) | Approx Cable Weight (kg/km) |
|---|---|---|---|
| 5*1.5 | 1.37 | 12.7-13.4 | 194.6-211.5 |
| 5*2.5 | 1.75 | 13.7-14.4 | 251.8-270.8 |
| 5*4 | 2.22 | 14.9-15.2 | 334.8-356.2 |
| 5*6 | 2.74 | 16.2-16.6 | 447.7-472.3 |
| 5*10 | 4 | 20.7 | 713.2-785.5 |
| 5*16 | 5 | 23.4 | 1025.6-1119.7 |
| 5*25 | 5.59 | 26.2 | 1490.0-1609.3 |
| 5*35 | 6.62 | 28.9 | 1971.7-2119.4 |
| 5*50 | 7.65 | 32.6-33.4 | 2618.3-2859.1 |
| 5*70 | 9.21 | 37.6-38.4 | 3677.1-3989.9 |
| 5*95 | 10.78 | 42.2-43.0 | 4970.8-5356.2 |
| 5*120 | 12.12 | 46.5-47.3 | 6197.0-6659.7 |
| 5*150 | 13.69 | 52.2-53.0 | 7659.4-8233.1 |
| 5*185 | 15.21 | 57.8-58.6 | 9532.9-10226.6 |
Contact Us for More Details
Get comprehensive technical specifications and pricing information for our fire-rated cables.
About Our Company
Our Projects

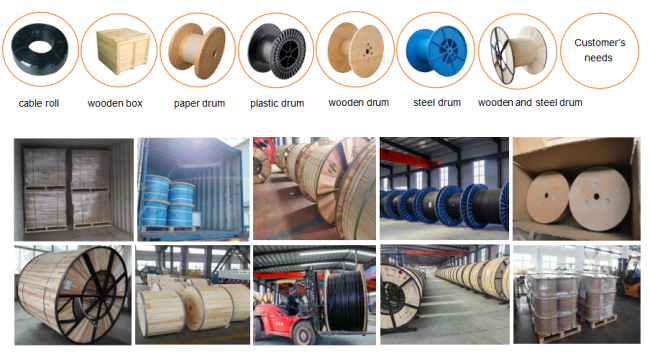

Packaging
Frequently Asked Questions
What types of cable products does your company primarily manufacture?
We specialize in the production of various types of power cables, control cables, communication cables, and specialty cables, including but not limited to PVC-insulated cables, XLPE power cables, mining cables, marine cables, and photovoltaic cables.
Which international standards do your products comply with?
Our products comply with various international standards, such as IEC, BS, UL, ASTM, GB, etc., depending on the product type. We can provide products compliant with different international standards.
What quality certifications do you hold?
We have obtained ISO and CCC quality management system certifications, and some products have also obtained international certifications. We can also apply for specific certifications based on customer requirements.
What is the delivery lead time?
Standard products are typically in stock and can be shipped within 7-15 days. Customized products require 15-45 days depending on quantity.
Do you accept customized products?
We provide OEM and ODM service, we can customize cable products according to customer's special requirements, including specifications, colors, packaging and so on.
