Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable
Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable
Application
Application of Non Armoured Low Voltage Cable 0.6/1kV Copper Conductor XLPE Insulation PE Sheathed Fire-resistant Power Cable
This cable is widely used in industrial and commercial buildings where fire safety is critical. It is commonly installed in power distribution systems, emergency lighting circuits, and fire alarm systems. Due to its flame-retardant properties and steel tape armour, it is suitable for underground installations, tunnels, and areas with high mechanical stress. It is also used in mining operations and chemical plants where resistance to fire and mechanical damage is essential.
Construction
Conductor:Class 1/Class 2 stranded Copper conductor
Refractory layer:Single sided gold mica tape
Insulation:XLPE
Filler(options):Polypropylene mesh tear rope or flame-retardant filling
Outer sheath:Polyethylene (PE)
Characteristics
Voltage Rating Uo/U:0.6/1kV
Maximum system voltage:12kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:20D multi core:15D (D is the actual outer diameter of the cable)
Specification
|
Spec |
Conductor diameter mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
||||||
|
NH |
ZAN |
ZBN |
ZCN |
NH |
ZAN |
ZBN |
ZCN |
||
|
1×1.5 |
1.37 |
/ |
6.1 |
5.8 |
5.8 |
5.8 |
49.3 |
48.1 |
48.1 |
|
1×2.5 |
1.75 |
/ |
6.5 |
6.2 |
6.2 |
6.2 |
60.9 |
59.6 |
59.6 |
|
1×4 |
2.22 |
/ |
6.9 |
6.6 |
6.6 |
6.6 |
77.5 |
76.3 |
76.3 |
|
1×6 |
2.74 |
/ |
7.5 |
7.2 |
7.2 |
7.2 |
100.0 |
98.7 |
98.7 |
|
1×10 |
4 |
/ |
9.0 |
8.7 |
8.7 |
8.7 |
152.2 |
151.0 |
151.0 |
|
1×16 |
5 |
/ |
10.0 |
10.3 |
10.3 |
10.3 |
213.9 |
222.7 |
222.7 |
|
1×25 |
5.59 |
/ |
11.0 |
11.3 |
11.3 |
11.3 |
305.4 |
315.1 |
315.1 |
|
1×35 |
6.62 |
/ |
12.0 |
12.3 |
12.3 |
12.3 |
399.9 |
410.6 |
410.6 |
|
1×50 |
7.65 |
/ |
13.3 |
14.4 |
14.0 |
13.6 |
521.5 |
556.2 |
544.6 |
|
1×70 |
9.21 |
/ |
15.1 |
16.2 |
15.8 |
15.4 |
724.7 |
763.8 |
750.8 |
|
1×95 |
10.78 |
/ |
16.8 |
17.9 |
17.5 |
17.1 |
976.9 |
1020.7 |
1006.3 |
|
1×120 |
12.12 |
/ |
18.3 |
19.5 |
19.1 |
18.6 |
1211.3 |
1259.0 |
1243.3 |
|
1×150 |
13.69 |
/ |
20.8 |
21.6 |
21.2 |
20.8 |
1497.7 |
1546.6 |
1529.2 |
|
1×185 |
15.21 |
/ |
22.7 |
23.6 |
23.2 |
22.7 |
1851.3 |
1904.8 |
1885.8 |
|
1×240 |
17.4 |
/ |
25.3 |
26.2 |
25.7 |
25.3 |
2400.0 |
2460.0 |
2439.0 |
|
1×300 |
19.55 |
/ |
27.8 |
28.7 |
28.3 |
27.8 |
2983.5 |
3050.1 |
3027.0 |
|
1×400 |
22.05 |
/ |
30.9 |
31.8 |
31.4 |
30.9 |
3756.2 |
3830.9 |
3805.3 |
|
1×500 |
25 |
/ |
34.5 |
35.3 |
34.9 |
34.5 |
4786.0 |
4870.0 |
4841.5 |
|
1×630 |
28.4 |
/ |
38.6 |
39.5 |
39.0 |
38.6 |
6152.5 |
6248.3 |
6216.4 |
|
2×1.5 |
1.37 |
/ |
10.3 |
10.6 |
10.6 |
11.0 |
114.6 |
128.5 |
128.5 |
|
2×2.5 |
1.75 |
/ |
11.0 |
11.3 |
11.3 |
11.7 |
141.1 |
156.7 |
156.7 |
|
2×4 |
2.22 |
/ |
11.9 |
12.2 |
12.2 |
12.2 |
178.6 |
196.2 |
196.2 |
|
2×6 |
2.74 |
/ |
12.9 |
13.2 |
13.2 |
12.9 |
229.1 |
249.3 |
249.3 |
|
2×10 |
4 |
/ |
16.0 |
16.3 |
16.3 |
16.3 |
350.4 |
410.2 |
416.1 |
|
2×16 |
5 |
/ |
18.0 |
18.3 |
18.3 |
18.3 |
487.3 |
565.3 |
572.1 |
|
2×25 |
5.59 |
/ |
20.3 |
20.3 |
20.3 |
20.3 |
690.6 |
785.0 |
792.5 |
|
2×35 |
6.62 |
/ |
22.4 |
22.4 |
22.4 |
22.4 |
897.5 |
1015.6 |
1024.0 |
|
2×50 |
7.65 |
/ |
24.8 |
25.7 |
24.8 |
24.8 |
1164.0 |
1364.5 |
1323.3 |
|
2×70 |
9.21 |
/ |
28.4 |
29.2 |
28.4 |
28.4 |
1608.2 |
1868.7 |
1821.9 |
|
2×95 |
10.78 |
/ |
31.9 |
32.7 |
31.9 |
31.9 |
2162.5 |
2484.6 |
2432.1 |
|
2×120 |
12.12 |
/ |
35.1 |
36.0 |
35.1 |
35.1 |
2687.0 |
3074.8 |
3017.0 |
|
2×150 |
13.69 |
/ |
39.3 |
40.1 |
39.3 |
39.3 |
3310.0 |
3791.4 |
3726.9 |
|
2×185 |
15.21 |
/ |
43.3 |
44.2 |
43.3 |
43.3 |
4099.1 |
4681.5 |
4589.4 |
|
2×240 |
17.4 |
/ |
48.5 |
49.3 |
48.5 |
48.5 |
5305.6 |
6028.0 |
5922.9 |
|
2×300 |
19.55 |
/ |
53.5 |
53.5 |
53.5 |
53.5 |
6592.0 |
7377.9 |
7347.2 |
|
2×400 |
22.05 |
/ |
59.7 |
59.7 |
59.7 |
59.7 |
8297.4 |
9280.2 |
9243.4 |
|
3×1.5 |
1.37 |
/ |
10.8 |
11.1 |
11.1 |
11.5 |
137.5 |
151.3 |
151.3 |
|
3×2.5 |
1.75 |
/ |
11.6 |
11.9 |
11.9 |
12.4 |
173.7 |
189.0 |
189.0 |
|
3×4 |
2.22 |
/ |
12.6 |
12.9 |
12.9 |
12.9 |
225.6 |
242.8 |
242.8 |
|
3×6 |
2.74 |
/ |
13.7 |
14.0 |
14.0 |
13.6 |
295.7 |
315.4 |
315.4 |
Contact us for more details

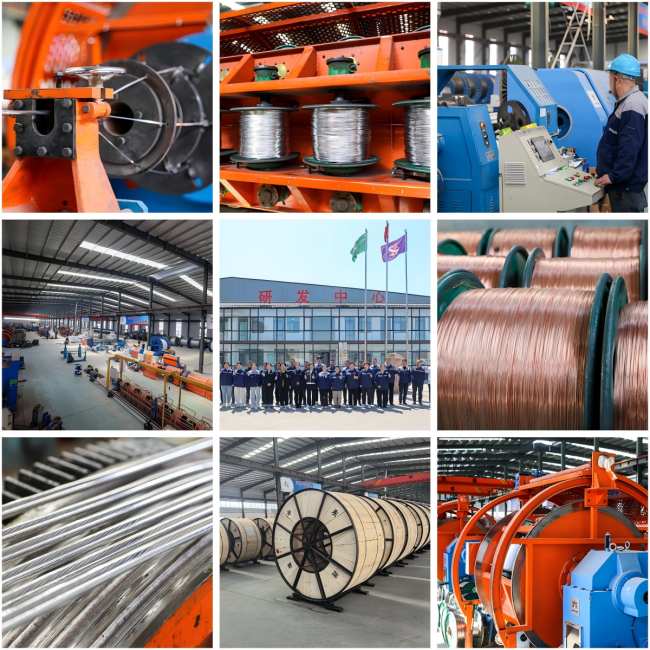

Our factory

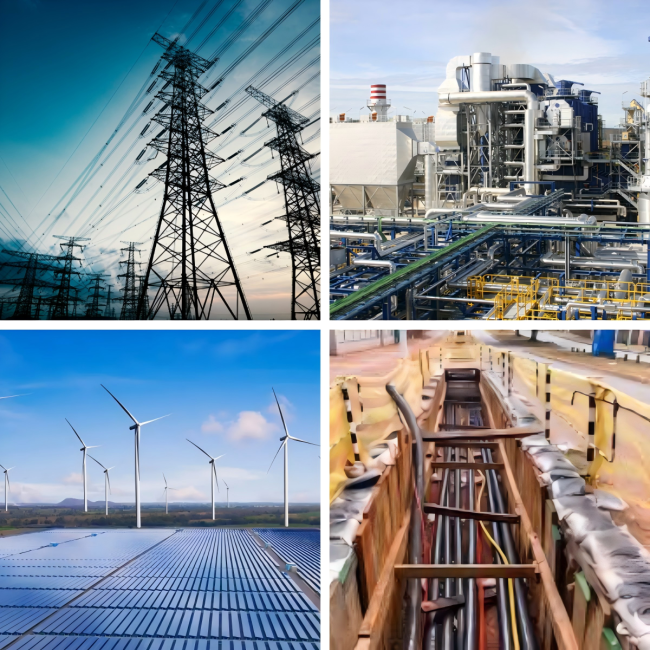

Application
