APPLICATION
The Aluminum Foil Shielded Control Cable with specifications 0.6/1 kV Cu/PVC/PVC Flame Retardant Control Cable KVVGeng is designed for a variety of industrial and commercial applications where reliable signal transmission and protection against electromagnetic interference (EMI) are critical.
This cable is versatile, offering EMI protection, flame retardancy, and durability, making it a preferred choice for diverse control applications in industrial, commercial, and energy sectors.
CONSTRUCTION
-
Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)
-
Insulation:Polyvinyl chloride (PVC)
- Screen: Aluminium foil
-
Filler:Polypropylene(PP) mesh filling rope
-
Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating Uo/U: 450/750V
- Temperature Rating
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -15℃~+50℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)
SPECIFICATION
|
Number of conductors and nominal cross-section mm² |
Nominal outer diameter mm |
Estimated weight km/kg | |
| 2×0,75 | 7.1 | 64 | |
| 3×0,75 | 7.5 | 78 | |
| 4x0,75 | 8.0 | 93 | |
| 5×0,75 | 9.3 | 124 | |
| 7×0,75 | 9.9 | 149 | |
| 10×0,75 | 12.1 | 200 | |
| 14×0,75 | 13.0 | 252 | |
| 19×0,75 | 14.2 | 317 | |
| 27x0,75 | 16.7 | 426 | |
| 37×0,75 | 19.0 | 569 | |
| 2×1,0 | 7.5 | 72 | |
| 3×1,0 | 7.8 | 89 | |
| 4×1,0 | 9.0 | 120 | |
| 5x1,0 | 9.7 | 142 | |
Contact us for more details

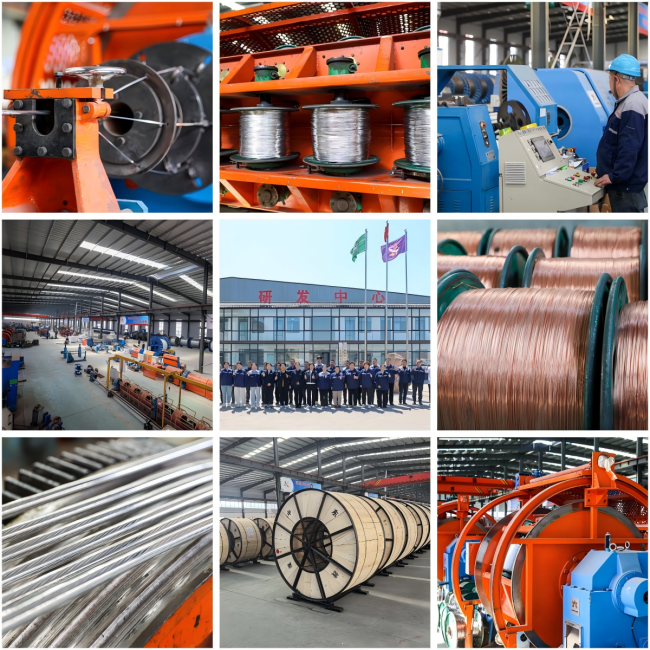

OUR FACTORY

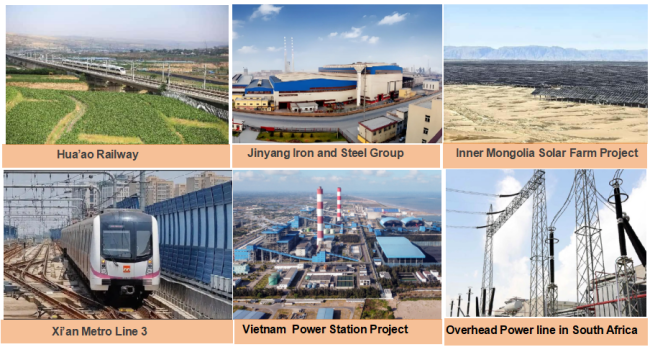

PROJECTS
