China CE Certified Aluminium Armoured Cable AL/XLPE/STA/SWA/PVC 240mm2 Cable for sale

CE Certified Aluminium Armoured Cable AL/XLPE/STA/SWA/PVC 240mm2 Cable

Price Negotiable
Price: To be negotiated
MOQ: To be negotiated
Delivery Time: 7-30 days based on different qty
Brand: Armoured Electrical Cable
Product Description

CE Certified Aluminium Armoured Cable AL/XLPE/STA/SWA/PVC 240mm2 Cable

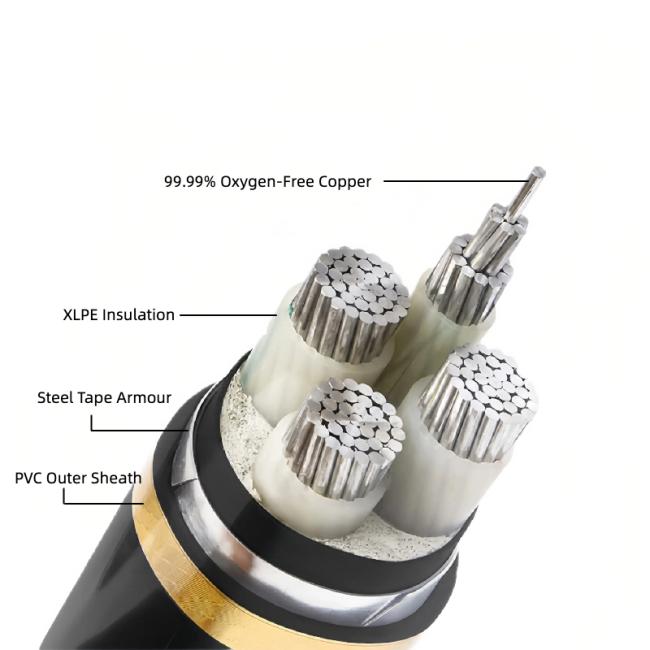

Constuction

✔ XLPE Insulation (Cross-linked polyethylene) - Superior thermal stability (90°C rated)
✔ PVC Outer Sheath - UV resistant formulation (custom LSZH/Fire-resistant options available)
✔ Dual Certification - Compliant with IEC 60502-1 & GB/T 12706.1
✔ Optional Armoring - Steel tape (YJLV22) or wire (YJLV32) for mechanical protection


Advantages:


✔ Lower Power Loss – XLPE insulation ensures higher efficiency than standard PVC cables.
✔ Lightweight & Flexible – 20% lighter than armored cables, easier to handle and install.
✔ Adaptable Configurations – Available in single-core or multi-core options.

Applications:

✔ Building Power Distribution – Main circuits, sub-panels, and vertical risers.
✔ Industrial Facilities – Machinery power supply, motor connections, and control systems.
✔ Renewable Energy – Solar farm wiring, wind turbine grounding, and inverter links.
✔ Public Spaces – Hospitals, schools, and metro stations (LSZH version for enhanced safety).
✔ Outdoor/Utility Projects – Weather-resistant for temporary power grids and rural electrification.

Features:

  1. Voltage Rating Uo/U:3.8/6.6(7.2)kV,  6.35/11kV(12)kV,  8.7/15(17.5)kV,  12.7/22 (24)kV,  19/33(36)kV
  2. Maximum operating temperature of conductor:+90℃
  3. Operating ambient temperature: -15℃~+55℃
  4. Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  5. Minimum Bending Radius: Single core:15D



SPECIFICATIONS



Nominal
cross-
sectional
area of
conductor

Nominal
diameter of
conductor

Nominal
thickness
of XLPE
insulation

Metallic
Screening

Nominal
diameter of
aluminium
wire

Nominal
thickness of
PVC sheath

Approximate
overall
diameter of
cable

Approximate weight of cable

Approximate
thickness of
copper tape

Copper

Aluminium

mm²

mm

mm

mm

mm

mm

mm

Kg/Km

Kg/Km

50

70

95

8.1

9.7

11.5

4.5

4.5

4.5

0.1

0.1

0.1

1.6

1.6

2.0

1.9

2.0

2.1

30

32

34

1401

1688

2111

1103

1257

1513

120
150
185

12.9
14.3
16.1

4.5
4.5
4.5

0.1
0.1
0.1

2.0
2.0
2.0

2.1
2.2
2.2

36
37
39

2412

2752

3188

1656
1824
2024

240
300
400

18.4
20.6
23.3

4.5
4.5
4.5

0.1
0.1
0.1

2.0
2.0
2.5

2.3
2.4
2.5

42
44
48

3875

4579

5709

2330
2640
3229

500
630
800

26.2
29.8
33.7

4.5
4.5
4.5

0.1
0.1
0.1

2.5
2.5
2.5

2.6
2.7
2.8

51
56
60

6849

8456

10362

3723
4400
5174



Contact us for more details


About us


Test Center


Partners



FAQ

1.You are manufacturer or trader ?

We are a professional ISO certified cable manufacturer with more than 20 years experience.

2.How can I get the quotation of the products ?

Pls send your inquiry to us,our sales manager will offer you within 12 hours.

3.What does your company do regarding quality control?

1) All raw materials we selected are the highest quality. 2) Professional and skillful workers care every details in handling the producing. 3) Quality control department is specially responsible for quality checking in each process.

4.Do you provide OEM project service?

Yes,OEM & ODM order is warmly welcomed.Our engineers will give you the professional suggestions.

5.What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
