XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm
XLPE Insulated Aluminum Cable 3 Core Armoured Cable Medium Voltage 120mm 240mm
APPLICATION
The cables have the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route. mainly used in transmission and distribution lines because of its excellent electrical and physical properties.

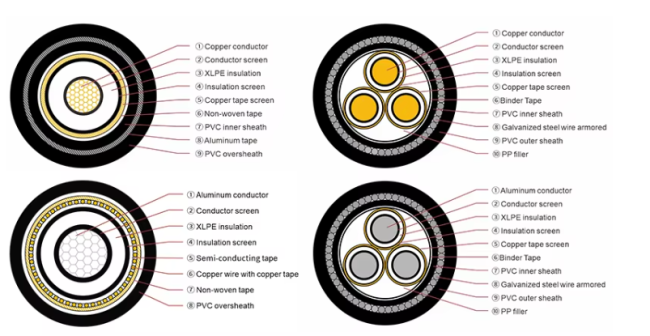

CONSUCTRUCTION
Conductor:Class 2 Aluminium conductor
Conductor :Semi-conductive shield
Insulation:Cross-Linked Polyethylene(XLPE)
Insulation shield:Semi-conductive shield
Binder tape: Non-woven fabrics:
Isolation sleeve: Polyvinyl chloride(PVC)
Armour:Non-magnetic steel Tape or Steel Wire
Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
Voltage Rating Uo/U: 6kV～35 kV.
Temperature Rating: Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius
single unarmored cable: 20 x OD
multi-core unarmored cable: 15 x OD
single armored cable: 5 x OD
multi-core armored cable: 12 x OD
SPECIFICATION
26/35kV
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
mm² |
mm |
±1.0mm |
mm |
kg/km |
mm² |
mm |
±1.0mm |
mm |
kg/km |
|
|
1×50 |
7.6±0.2 |
312 |
44.1 |
3697 |
3×50 |
7.6±0.2 |
31.2 |
85.5 |
10922 |
|
|
1×70 |
9.2±0.2 |
32.8 |
45.8 |
4073 |
3×70 |
9.2±0.2 |
32.8 |
89.3 |
12127 |
|
|
1×95 |
10.9±0.2 |
34.5 |
47.5 |
4481 |
3×95 |
10.9±0.2 |
34.5 |
93.3 |
13610 |
|
|
1×120 |
12.2±0.2 |
35.8 |
49.0 |
4874 |
3×120 |
12.2±0.2 |
35.8 |
96.5 |
14791 |
|
|
1×150 |
13.6±0.2 |
37.2 |
50.6 |
5299 |
3×150 |
13.6±0.2 |
37.2 |
99.9 |
16179 |
|
|
1×185 |
15.2±0.2 |
38.8 |
52.3 |
5778 |
3×185 |
15.2±0.2 |
38.8 |
103.5 |
17856 |
|
|
1×240 |
17.4±0.2 |
41.0 |
54.5 |
6530 |
3×240 |
17.4±0.2 |
41.0 |
108.7 |
20327 |
|
|
1×300 |
19.5±0.2 |
43.1 |
57.0 |
7360 |
3×300 |
19.5±0.2 |
43.1 |
115.3 |
24487 |
|
|
1×400 |
22.0±0.2 |
45.6 |
59.7 |
8363 |
3×400 |
22.0±0.2 |
45.6 |
121.4 |
27921 |
|
|
1×500/35 |
24.8±0.2 |
492 |
66.0 |
10213 |
3×500/35 |
24.8±0.2 |
49.2 |
134.8 |
34088 |
|
|
1×630/35 |
28.2±0.2 |
52.6 |
69.7 |
11899 |
3×630/35 |
28.2±0.2 |
52.6 |
1,448 |
42268 |
|
|
1×800/35 |
33.7±0.2 |
58.1 |
76.8 |
15129 |
|
|
|
|
|
CONTACTR US FOR MORE VOLATAGE
