3 Core 150 mm Armoured Cables PVC/SWA Cu 8.7/15Kv Catalogue Underground Electrical Wire Types

Price Negotiable

Price: To be negotiated

MOQ: To be negotiated

Delivery Time: 7-30 days based on different qty

Brand: Armoured Electrical Cable

Product Description

3 Core 150 mm Armoured Cables PVC/SWA Cu 8.7/15Kv Catalogue Underground Electrical Wire Types

APPLICATION

It is suitable for transmitting electric energy in high and low voltage power lines, and is laid indoors, in cable trenches, pipelines, directly buried, etc. in metallurgy, electric power, construction and other industries and can withstand the action of external mechanical forces.‌

CONSTRUCTION

CHARACTERISTICS

The maximum rated temperature of the cable conductor is 90℃. In case of short circuit (the maximum duration is not more than 5s), the maximum temperature of the cable conductor shall not exceed 250℃. The ambient temperature when laying the cable shall not be lower than 0℃. If it is lower than 0℃, it shall be preheated first.

SPECIFICATIONS

Specs mm²	Conductor diameter mm	Nominal thickness of insulation mm	Outside diameter of insulation ±1.0mm	Nominal thickness of sheath mm	Approximate outer diameter of cable mm	Approximate cable weight kg/km
3×25	6.0	4.5	17.0	2.4	47.0	2274
3×35	7.0	4.5	18.0	2.5	49.5	2673
3×50	8.2	4.5	19.2	2.6	52.3	3156
3×70	10.0	4.5	20.8	2.7	55.9	3932
3×95	11.6	4.5	22.6	2.8	60.0	4879
3×120	13.0	4.5	24.0	2.9	63.2	5743
3×150	14.4	4.5	25.4	3.0	66.5	6700
3×185	16.1	4.5	27.2	3.1	70.6	7919
3×240	18.4	4.5	29.4	3.3	75.7	9782
3×300	20.6	4.5	31.6	3.4	80.7	11755
3×400	23.4	4.5	34.4	3.7	87.4	14550
3×500	26.6	4.5	38.5	3.8	97.3	18348
3×630	30.0	4.5	41.9	4.1	105.3	22765

PROJECTS

PARTNERS

WHY US

FAQ

Q: What international certifications do your cables comply with?
A: Our cables are fully certified to IEC, CE, EAC, BS and local standards ETC. All products come with complete certification documents for customs clearance and project approval.
Q: Can you provide customized cable solutions?
A: Yes. We offer OEM/ODM services for custom conductor cross-sections (from 1.5mm² to 1000mm²), voltage ratings (low/medium/high voltage), armouring types (SWA/AWA/galvanized steel) and sheath materials (PVC/LSZH/XLPE).
Q: What is the lead time for cable orders?
A: For standard cables, the lead time is 7–30 working days for bulk orders. Customized cables require 20–30 working days, depending on the complexity of specifications and order volume.

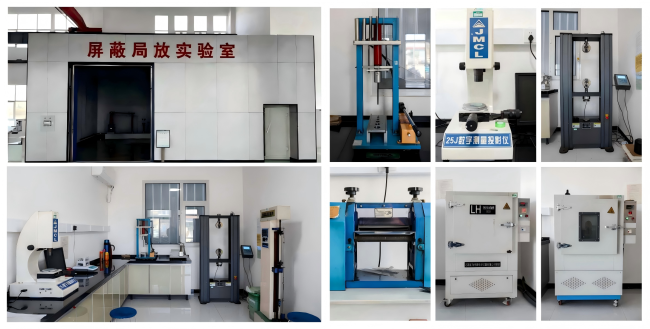

Q: How do you ensure product quality during production?
A: We implement strict quality control (QC) at every stage: raw material inspection, online production testing, and final electrical/mechanical performance checks (e.g., voltage withstand, insulation resistance, tensile strength tests). All products pass 100% inspection before shipment.
Q: Do you provide free samples?
A: We offer free samples for quality testing. The customer only needs to cover the shipping cost.
Q: Can you provide technical support for cable installation?
A: Yes. We provide detailed installation manuals, and our technical team is available 24/7 to offer guidance on cable routing, armouring handling, and joint termination. On-site support can be arranged for large-scale projects.
Q: What is your warranty policy for cables?
A: We provide a 12–24 month warranty for all our cables, depending on the product type. During the warranty period, we will replace or repair any defective products caused by manufacturing issues free of charge.
Q: What is the minimum order quantity (MOQ) for cables?
A: We have a flexible MOQ requirement. For customized cables, the MOQ is determined by the specific specifications, and we can accommodate small trial orders for new customers.
Q: How do you package and ship the cables?
A: Cables are wound on sturdy wooden or steel reels, wrapped with waterproof plastic film to prevent moisture damage. We ship via sea freight (FCL/LCL) for bulk orders and air freight for urgent small orders, with full tracking provided.
