Overhead Transmission Bare Conductor AAC All Aluminum Conductor 500 MCM

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 7-30 days based on different Qty

Brand: AAAC Bare Conductor

Product Description

Overhead Transmission Bare Conductor AAC All Aluminum Conductor 500 MCM

APPLICATION

AAC is most commonly used in medium to long-distance overhead transmission and distribution lines.

CONSTRUCTION

t is composed entirely of aluminum strands, which makes it lightweight, cost-effective, and highly resistant to corrosion

CHARACTERISTIC

Lightweight

Corrosion Resistance

Cost-Effective

High Conductivity

SPECIFICATION

ominal cross-sectional area mm2	Actual cross-sectional area mm2	Number of strands	Diameter		Approximate weight of cable	Nominal Breaking Load	Maximum DC Resistance at 20℃
			Diameter
			Single wire	Conductor
			mm	mm	kg/km	kN	Ω/km
10	10	7	1.35	4.05	27.4	1.95	2.8633
16	16	7	1.71	5.12	43.8	3.04	1.7896
25	25	7	2.13	6.4	68.4	4.5	1.1453
40	40	7	2.7	8.09	109.4	6.8	0.7158
63	63	7	3.39	10.2	172.3	10.39	0.4545
100	100	19	2.59	12.9	274.8	17	0.2877
125	125	19	2.89	14.5	343.6	21.25	0.2302
160	160	19	3.27	16.4	439.8	26.4	0.1798
200	200	19	3.66	18.3	549.7	32	0.1439
250	250	19	4.09	20.5	687.1	40	0.1151
315	315	37	3.29	23	867.9	51.97	0.0916
400	400	37	3.71	26	1102	64	0.0721
450	450	37	3.94	27.5	1239.8	72	0.0641
600	600	37	4.15	29	1377.6	80	0.0577
560	560	37	4.39	30.7	1542.9	89.6	0.0515
630	630	61	3.63	32.6	1738.3	100.8	0.0458
710	710	61	3.85	34.6	1959.1	113.6	0.0407
800	800	61	4.09	36.8	2207.4	128	0.0361
900	900	61	4.33	39	2483.3	144	0.0321
1000	1000	61	4.57	41.1	2759.2	160	0.0289
1120	1120	91	3.96	43.5	3093.5	179.2	0.0258
1250	1250	91	4.18	46	3452.6	200	0.0231
1400	1400	91	4.43	48.7	3866.9	224	0.0207
1500	1500	91	4.58	50.4	4143.1	240	0.0193

Q: What international certifications do your cables comply with?
A: Our cables are fully certified to IEC, CE, EAC, BS and local standards ETC. All products come with complete certification documents for customs clearance and project approval.
Q: Can you provide customized cable solutions?
A: Yes. We offer OEM/ODM services for custom conductor cross-sections (from 1.5mm² to 1000mm²), voltage ratings (low/medium/high voltage), armouring types (SWA/AWA/galvanized steel) and sheath materials (PVC/LSZH/XLPE).
Q: What is the lead time for cable orders?
A: For standard cables, the lead time is 7–30 working days for bulk orders. Customized cables require 20–30 working days, depending on the complexity of specifications and order volume.

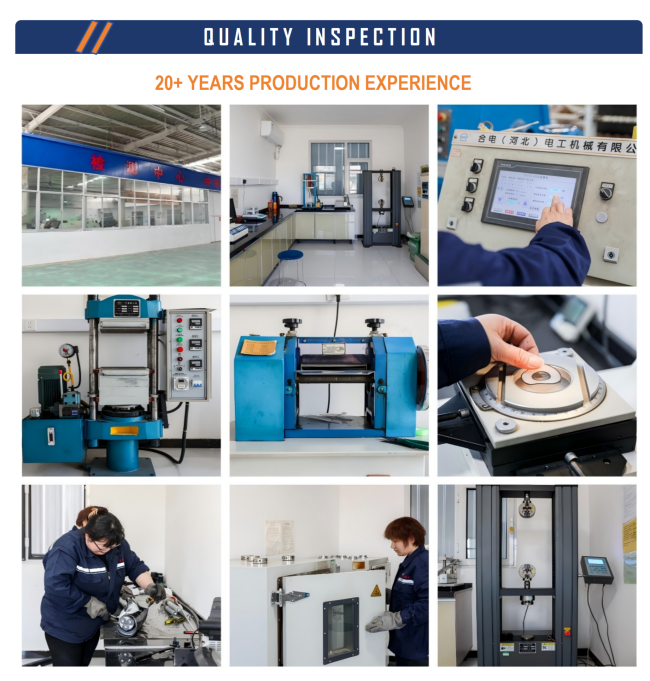

Q: How do you ensure product quality during production?
A: We implement strict quality control (QC) at every stage: raw material inspection, online production testing, and final electrical/mechanical performance checks (e.g., voltage withstand, insulation resistance, tensile strength tests). All products pass 100% inspection before shipment.
Q: Do you provide free samples?
A: We offer free samples for quality testing. The customer only needs to cover the shipping cost.
Q: Can you provide technical support for cable installation?
A: Yes. We provide detailed installation manuals, and our technical team is available 24/7 to offer guidance on cable routing, armouring handling, and joint termination. On-site support can be arranged for large-scale projects.
Q: What is your warranty policy for cables?
A: We provide a 12–24 month warranty for all our cables, depending on the product type. During the warranty period, we will replace or repair any defective products caused by manufacturing issues free of charge.
