Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1

APPLICATION

LSZH cable with steel wire armour (SWA) is used in power networks, underground, outdoor, indoor applications and in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

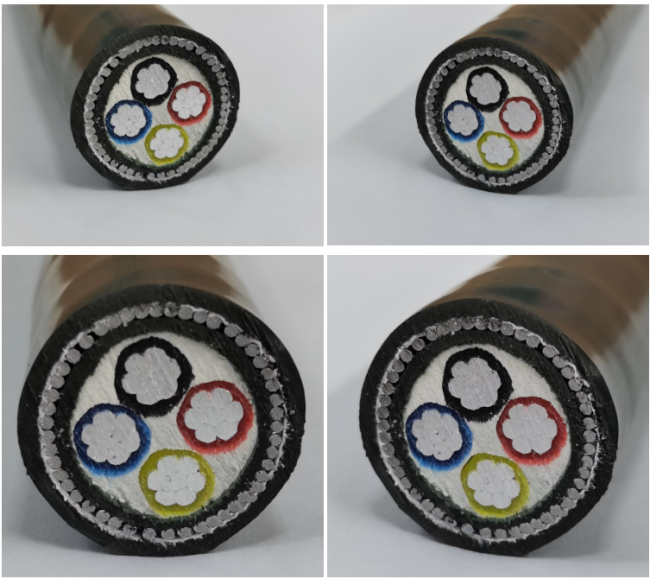

CONSTRUCTION

Conductor :Class 2 stranded aluminium conductor

Insulation :XLPE (Cross-Linked Polyethylene)

Filler :LSZH (Low Smoke Zero Halogen)

Armour :Single core: AWA (Aluminium wire armour) All other sizes: SWA (Galvanized round steel wire)

Sheath :LSZH (Low Smoke Zero Halogen)

STANDARD

EN 60332-1 / EN50266-1

CHARACTERISTICS

Voltage Rating Uo/U 0.6/1kV

Temperature Range Fixed: -5°C to +90°C

SPECIFICATION

FAQ

1.Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.Welcome to visit us. we'll pick you up in Nanning and ensure the quality of the product.

2.How can l get a sample to test your quality?
1.lf we do have inventory and sample quantity is small, it's free.
2.lf we do not have inventory or large quantity is required. you need to pay the prolfreight cost.

3.What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea
transportation is the best option.

4.Do you Support Customized Product Specification?
Yes, Simply offer your products specification, A Drawing or Diagram will be helpful.

5.Does your company accept OEM production?
Yes, could print your company name.
