Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments
Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments
APPLICATION
The cables are mainly used in systems where signal transmission must continue working during a fire, especially for critical safety and control circuits.

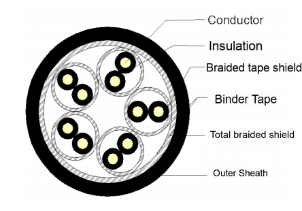

CONSTRUCTION
- Conductor: copper
- Insulation:LLDPE
- Separate shielding: Braided shielding (P)
- Overall shield: Braided shielding (P)
- Armouring:Steel Tape Armour
- Outer sheath:Polyvinyl chloride ST2 (PVC)
CHARACTERISTIC
1. Rated voltage: 300/500V.
2. Working temperature: PVC insulation and polyethylene insulation shall not exceed 70 ℃; Cross linked polyethylene insulation shall not exceed 90 ℃.
3. The laying temperature of wires and cables should not be lower than 0 ℃.
4. The bending radius of unarmored cables shall not be less than 6 times the outer diameter of the cable, and the bending radius of armored cables shall not be less than 12 times the outer diameter of the cable.
SPECIFICATION
|
No of Pair |
No of Core |
Section |
Insulation thickness mm |
Total screen single filament diameter mm |
Steel Tape Thickness |
Outer sheath thickness |
Approx cable outer diameter |
Approx cable weight |
|
1 |
2 |
0.5 |
0.50 |
0.15 |
02 |
1.1 |
10.7 |
148 |
|
2 |
2 |
0.5 |
0.50 |
0.15 |
02 |
1.2 |
136 |
226 |
|
3 |
2 |
0.5 |
0.50 |
0.15 |
0.2 |
1.2 |
14.1 |
249 |
|
4 |
2 |
0.5 |
0.50 |
0.15 |
0.2 |
12 |
14.9 |
281 |
|
5 |
2 |
0.5 |
0.50 |
0.15 |
02 |
1.2 |
158 |
315 |
|
6 |
2 |
0.5 |
0.50 |
0.15 |
02 |
12 |
16.7 |
351 |
|
7 |
2 |
0.5 |
0.50 |
0.15 |
0.2 |
1.2 |
16.7 |
360 |
|
8 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
18.6 |
437 |
|
9 |
2 |
0.5 |
0.50 |
0.2 |
02 |
1.3 |
19.7 |
481 |
|
10 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
13 |
20.4 |
511 |
|
11 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
13 |
204 |
522 |
|
12 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
20.9 |
548 |
|
13 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
21.7 |
583 |
|
14 |
2 |
0.5 |
0.50 |
0.2 |
02 |
13 |
21.7 |
594 |
|
15 |
2 |
0.5 |
0.50 |
0.2 |
02 |
14 |
22.9 |
644 |
|
16 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
22.9 |
654 |
|
17 |
2 |
0.5 |
0.50 |
0.2 |
02 |
14 |
238 |
696 |
|
18 |
2 |
0.5 |
0.50 |
0.2 |
02 |
14 |
238 |
707 |
|
19 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
238 |
712 |
|
20 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
24.9 |
763 |
|
21 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
24.9 |
774 |
|
22 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
26.0 |
822 |
|
23 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
14 |
26.0 |
832 |
|
24 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
1.5 |
273 |
891 |
|
25 |
2 |
0.5 |
0.50 |
0.2 |
02 |
1.5 |
27.3 |
902 |
|
26 |
2 |
0.5 |
0.50 |
0.2 |
02 |
1.5 |
273 |
912 |
|
27 |
2 |
0.5 |
0.50 |
0.2 |
0.2 |
1.5 |
28.2 |
966 |
|
28 |
2 |
0.5 |
0.50 |
0.25 |
02 |
1.5 |
29.2 |
1037 |
|
29 |
2 |
0.5 |
0.50 |
0.25 |
0.2 |
1.5 |
29.2 |
1048 |
|
30 |
2 |
0.5 |
0.50 |
0.25 |
0.2 |
1.5 |
29.2 |
1059 |
|
31 |
2 |
0.5 |
0.50 |
0.25 |
0.2 |
1.5 |
30.1 |
1105 |
|
32 |
2 |
0.5 |
0.50 |
0.25 |
02 |
15 |
30.1 |
1116 |
|
33 |
2 |
0.5 |
0.50 |
0.25 |
02 |
1.5 |
30.1 |
1126 |
|
34 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
32.5 |
1473 |
|
35 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
325 |
1483 |
|
36 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
16 |
325 |
1494 |
|
37 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
325 |
1492 |
|
38 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
16 |
33.6 |
1568 |
|
39 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
33.6 |
1579 |
|
40 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
16 |
33.6 |
1590 |
|
41 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
34.7 |
1656 |
|
42 |
2 |
0.5 |
0.50 |
0.25 |
0.5 |
1.6 |
34.7 |
1667 |
