8.7/15 kV XLPE insulated power cable manufactured in accordance with IEC 60502-2 is designed for medium-voltage power transmission and distribution systems. It is widely used to transmit electrical power from substations to industrial facilities, commercial buildings, and local distribution networks.

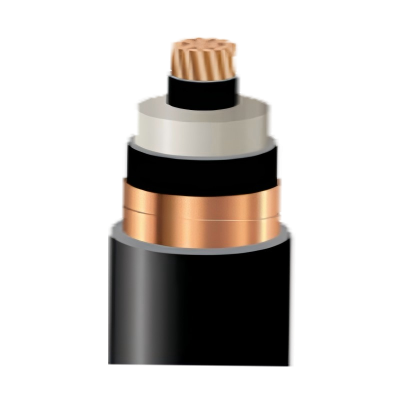

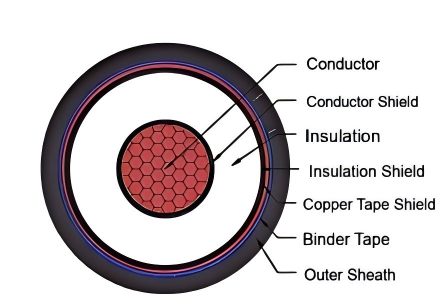

Construction
Conductor: Class 2 stranded Copper conductor
Conductor shield:Semi-conductive shield
Insulation:Cross-Linked Polyethylene(XLPE)
Insulation shield:Semi-conductive shield
Metal shielding layer:Copper tape
Binder tape:Non-woven fabrics
Outer sheath: Polyvinyl chloride (PVC)
Characteristic
Voltage Rating Uo/U: 8.7/10(12)kV,8.7/15(17.5)kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -20℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single Core 20D Three Core 12D (D is the actual outer diameter of the cable)
Standard
IEC60502-2 IEC60228
Specification
|
Specs mm² |
Conductor diameter |
Nominal thickness of insulation |
Outside diameter of insulation |
Nominal thickness of sheath |
Approximate outer diameter of cable |
Approximate cable weight |
|
1×25 |
6.0 |
4.5 |
17.0 |
1.6 |
23.0 |
703 |
|
1×35 |
7.0 |
4.5 |
18.0 |
1.7 |
24.2 |
832 |
|
1×50 |
8.2 |
4.5 |
19.2 |
1.7 |
25.4 |
977 |
|
1×70 |
10.0 |
4.5 |
20.8 |
1.8 |
27.2 |
1228 |
|
1×95 |
11.6 |
4.5 |
22.6 |
1.8 |
29.0 |
1519 |
|
1×120 |
13.0 |
4.5 |
24.0 |
1.9 |
30.6 |
1799 |
|
1×150 |
14.4 |
4.5 |
25.4 |
1.9 |
32.0 |
2093 |
|
1×185 |
16.1 |
4.5 |
27.2 |
2.0 |
34.0 |
2485 |
|
1×240 |
18.4 |
4.5 |
29.4 |
2.1 |
36.4 |
3076 |
|
1×300 |
20.6 |
4.5 |
31.6 |
2.1 |
38.6 |
3693 |
|
1×400 |
23.4 |
4.5 |
34.4 |
2.2 |
41.6 |
4566 |
|
1×500 |
26.6 |
4.5 |
38.4 |
2.3 |
46.2 |
5749 |
|
1×630 |
30.0 |
4.5 |
41.8 |
2.4 |
49.8 |
7135 |
|
1×800 |
34.0 |
4.5 |
45.8 |
2.6 |
54.2 |
8912 |
