Product Overview
The KVVP2 Copper Tape Screened Control Cable is a high-performance solution designed for control, monitoring, and protection circuits in industrial environments. Unlike standard braided shields, the KVVP2 utilizes an overlapping copper tape shield, providing complete 100% radial coverage against electromagnetic interference (EMI).
This cable is specifically engineered for fixed installations where signal integrity is critical, such as near heavy machinery and power distribution units. It ensures reliable transmission of control signals without external noise corruption.
KVVP2 Cable Construction
- Conductor: Copper Conductor
- Insulation: PVC Insulation
- Shielding: Copper Tape Screened
- Inner Filling: Optional
- Outer Sheath: PVC Sheath
- Core Identification: Numbered or Color Coded
- Voltage Rating: 450/750V
- Temperature Rating: 70°C or 90°C
Features of KVVP2 Copper Tape Screened Control Cable
- Excellent electromagnetic interference resistance
- Stable signal and control transmission
- Good mechanical protection performance
- Flame retardant options available
- Resistant to moisture, oil, and abrasion
- Easy installation and maintenance
- Long service life in industrial applications
Applications of KVVP2 Screened Control Cable
KVVP2 copper tape screened control cables are widely used in:
- Industrial automation systems
- Power distribution and substations
- Instrumentation and monitoring equipment
- Manufacturing plants
- Petrochemical industries
- Electrical control panels
- Communication and signal transmission systems
The copper tape shielding helps minimize signal interference and ensures reliable operation in environments with complex electrical and electromagnetic conditions.
KVVP2 Cable Standards
Our KVVP2 copper tape screened control cables can be manufactured according to:
- IEC Standards
- GB/T Standards
- BS Standards
- Custom technical specifications
KVVP2 Cable Specification
|
No. ×section |
|
|
|
|
||||
|
KVVP₂ |
KVVP₃ |
KVVP₂ |
KVVP₃ |
|||||
|
|
|
|
|
|||||
|
4×0.75 |
0.6 |
8.1 |
9.7 |
8.1 |
9.7 |
0.012 |
24.0 |
24.0 |
|
4×1.0 |
0.6 |
8.4 |
10.2 |
8.4 |
10.2 |
0.011 |
18.1 |
18.1 |
|
4×1.5 |
0.7 |
9.5 |
11.4 |
9.5 |
11.4 |
0.011 |
12.1 |
12.1 |
|
4×2.5 |
0.8 |
10.9 |
13.1 |
10.9 |
13.1 |
0.010 |
7.41 |
7.41 |
|
4×4 |
0.8 |
12.5 |
15.1 |
12.5 |
15.1 |
0.0085 |
4.61 |
4.61 |
|
4×6 |
0.8 |
13.6 |
16.5 |
13.6 |
16.5 |
0.0070 |
3.08 |
3.08 |
|
4×10 |
1.0 |
17.1 |
20.7 |
17.1 |
20.7 |
0.0065 |
1.83 |
1.83 |
|
5×0.75 |
0.6 |
8.6 |
10.4 |
8.6 |
10.4 |
0.012 |
24.0 |
24.0 |
|
5×1.0 |
0.6 |
9.0 |
10.9 |
9.0 |
10.9 |
0.011 |
18.1 |
18.1 |
|
5×1.5 |
0.7 |
10.2 |
12.3 |
10.2 |
12.3 |
0.011 |
12.1 |
12.1 |
|
5×2.5 |
0.8 |
11.8 |
14.2 |
11.8 |
14.2 |
0.010 |
7.41 |
7.41 |
|
5×4 |
0.8 |
13.5 |
16.3 |
13.5 |
16.3 |
0.0085 |
4.61 |
4.61 |
|
5×6 |
0.8 |
14.8 |
17.9 |
14.8 |
17.9 |
0.0070 |
3.08 |
3.08 |
|
5×10 |
1.0 |
19.1 |
23.0 |
19.1 |
23.0 |
0.0065 |
1.83 |
1.83 |
|
7×0.75 |
0.6 |
9.3 |
11.2 |
9.3 |
11.2 |
0.012 |
24.0 |
24.0 |
|
7×1.0 |
0.6 |
9.7 |
11.7 |
9.7 |
11.7 |
0.011 |
18.1 |
18.1 |
|
7×1.5 |
0.7 |
11.0 |
13.3 |
11.0 |
13.3 |
0.011 |
12.1 |
12.1 |
|
7×2.5 |
0.8 |
13.3 |
16.1 |
13.3 |
16.1 |
0.010 |
7.41 |
7.41 |
|
7×4 |
0.8 |
14.6 |
17.6 |
14.6 |
17.6 |
0.0085 |
4.61 |
4.61 |
|
7×6 |
0.8 |
16.0 |
19.4 |
16.0 |
19.4 |
0.0070 |
3.08 |
3.08 |
|
7×10 |
1.0 |
20.7 |
25.1 |
20.7 |
25.1 |
0.0065 |
1.83 |
1.83 |
|
8×0.75 |
0.6 |
10.2 |
12.3 |
10.2 |
12.3 |
0.012 |
24.0 |
24.0 |
|
8×1.0 |
0.6 |
10.7 |
12.9 |
10.7 |
12.9 |
0.011 |
18.1 |
18.1 |
|
8×1.5 |
0.7 |
12.8 |
15.4 |
12.8 |
15.4 |
0.011 |
12.1 |
12.1 |
|
8×2.5 |
0.8 |
14.7 |
17.8 |
14.7 |
17.8 |
0.010 |
7.41 |
7.41 |
|
8×4 |
0.8 |
16.2 |
19.6 |
16.2 |
19.6 |
0.0085 |
4.61 |
4.61 |
|
8×6 |
0.8 |
17.9 |
21.6 |
17.9 |
21.6 |
0.0070 |
3.08 |
3.08 |
|
8×10 |
1.0 |
23.2 |
28.1 |
23.2 |
28.1 |
0.0065 |
1.83 |
1.83 |
Contact us for more details
Customization Options
We understand that every project is unique. The KVVP2 series supports significant customization:
-
Conductor Type: Class 1 (Solid) or Class 2 (Stranded).
-
Insulation Upgrade: Available as KYJVP2 (XLPE insulation for 90°C operation).
-
Armor: Add steel tape ( KVVP2-22 ) for direct burial.
-
Jacket Color: Black, Grey, Orange, or Custom RAL.
-
Safety Grades:
-
ZR: Flame Retardant
-
N: Fire Resistant
-
WDZ: Low Smoke Zero Halogen (LSZH)
-
Why Choose Zhongdong Cable
Zhongdong Cable is a professional manufacturer and exporter of screened control cables with extensive experience in industrial and power cable projects worldwide. We provide:
-
Competitive factory prices
-

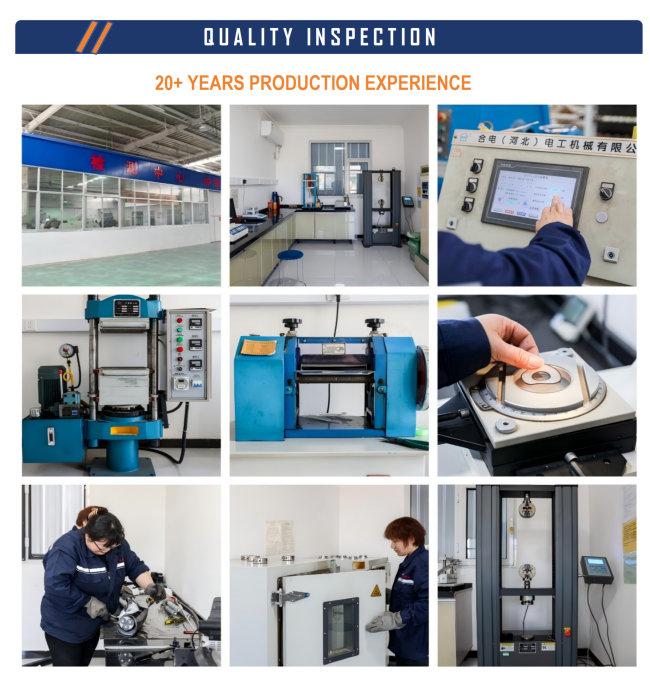

Strict quality inspection
-
OEM and customized production
-
Fast delivery time
-
International standard manufacturing
-
Reliable export service for global markets
FAQ
Q1: Can KVVP2 be used outdoors?
A: While the PVC sheath provides some weather resistance, for direct sunlight/UV exposure, we recommend an outdoor-grade variant with anti-UV properties or additional conduit protection. For direct burial, KVVP2-22 (armored) is required.
Q2: What is the difference between KVVP2 and KVVP?
A: KVVP uses a braided copper mesh screen (80% coverage, flexible), while KVVP2 uses a solid copper tape screen (100% coverage) . KVVP2 offers better protection against low-frequency magnetic interference but is stiffer than KVVP.
Q3: Is the LSZH (Low Smoke Zero Halogen) version available?
A: Yes. We produce WDZ-KVVP2 or WDZN-KVVP2 for projects requiring low smoke and halogen-free safety standards.
Q4: What is the minimum bending radius?
A: The minimum bending radius for KVVP2 is 12 times the overall cable diameter due to the copper tape construction
