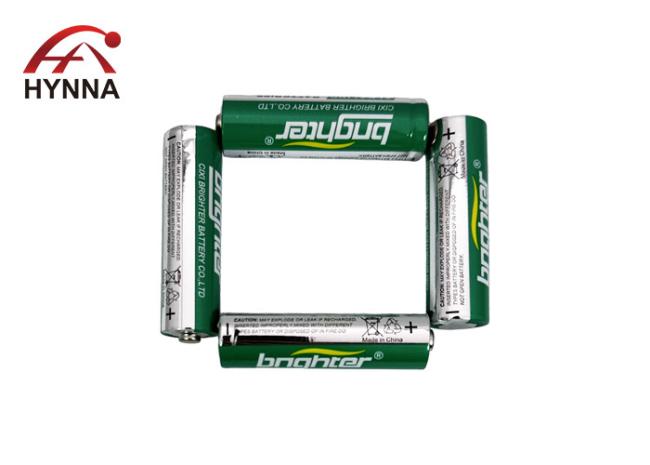

Size AA Battery 1.5Volt Battery For Toys Replacement Battery LR6 Alkaline Cell
Size AA battery 1.5Volt battery for Toys replacement battery LR6 Alkaline cell
alkaline battery in size AA 1.5V non-rechargeable battery LR6/AA/MN1500 Alkaline battery.
The alkaline batteries save working properties longer, possess bigger capacity, life time and operating temperature range compared with the heavy duty.
1.5V alkaline aa battery Usage instructions
Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
Alkaline zinc manganese battery 1.5v alkaline battery Chemical System: Alkaline (Zn/MnO2) Zinc-Manganese Dioxide battery 1.5V
IEC Name: LR6
ANSI/NEDA: 15A (AA)
Average Weight: 22.5+-5g
Dimension(∅ x H): 14.0±0.5 x 50.0 mm
Nominal Voltage: 1.5 V
Method of sampling : ISO2859 level II single sampling normal inspection.
Voltmeter : Digital Voltmeter with the precision of 1mV
(internal resistance not less than 1 Megohm)
Test temperature : 20 ± 2°C
Alkaline batteries size AA disposable battery lr6 alakine battery 1.5v battery Advantage:
Long-lasting and stable power output
0% Mercury, eco-friendly, reducing potential pollution
High-density structure, providing ultra-high performance and long-lasting power
Suitable for medium to high power-consuming electronic devices
Up to 5 year Shelf Life
Data sheet for AA size non recahrgeable battery LR06 batteries
| Model | LR6 primary battery size AA alkaline battery lr06 |
| Diameter | 13.5-14.5 |
| Height | 49.2-50.5 |
| Norminal voltage |
1.5 volt |
| Test condition/discharge time | 10Ω, 24h/d, 0.9V / 19.1H |
| 3.9Ω, 24h/d, 0.9V / 6.4H | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
Continuous discharge
Lr6 battery 1.5 volt Aa Batteries manufactory alkaline battery ODM

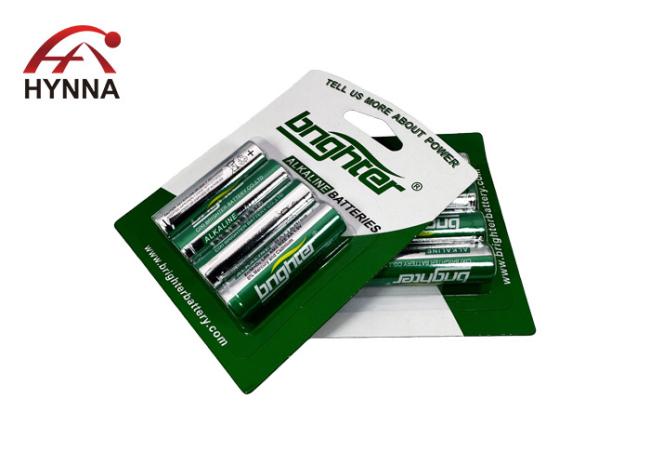

1.5V AA battery packing information LR6 primary battery lR06 dry battery alkaline 1.5v battery
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR6/ AA/ 1.5v | 4B/card | 20 cards | 160 cards | 391*303*193mm | 16.6 kgs | 4S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs |
| 2S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs | ||||||
Hot sale Alkaline batteries 1.5 volt lithium battedry factory Hynna battery welcome any customization
Primary cell battery size AA battery 1.5volt super dry battery
| Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
Alkaline battery 1.5v Rechargeable battery factory Oem Alkaline battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Attentions for full size allkaline battery AAA, AA, C, D and 9v battery :
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
| IEC alkaline battery | Volt | Equivalence super alkaline battery 1.5v |
| AA | 1.5 | LR6, LR06, R6, MN1500, AM3, E91, mignon |
| AAA | 1.5 | LR03, LR3, R3, MN2400, AM4, E92, UM4 |
| C | 1.5 | LR14, R14, MN1400, AM2, E93 |
| D | 1.5 | LR20, R20, MN1300, AM1, E95 |
| 4.5V | 4.5V | 3LR12, 3R12, LR12, R12, MN1203, 4.5 volts, pile plate |
| 9V | 9V | LR22, LF22, 6LR61, 6LF22, MN1604 |
