9-volt alkaline batteries Nine-volt battery 9V dry cell battery factory
9-volt alkaline batteries Nine-volt battery 9V dry cell battery factory
9V Alkaline Battery 6LR61 Batteries 9 Volt Ultra Long Lasting battery 9 Volt alkaline batteries 9V prismatic battery 9V batteries
smoke alarm batteries 9volt Rechargeable 9V Battery with USB-C Port Lithium Alkaline 9V Battery Pack 9V Super Heavy Duty Battery
9V HW Battery high-capacity battery low-cost 9 Volt Battery 9volt Metal Jacket battery 6LR61 alkaline battery 9V Zn-MnO2 battery Alkaline 9V battery
6LR61 Alkaline-Manganese Dioxide Battery 9volt Zn/M lithium battery 9V
IEC 6LR61 battery 9volt Alkaline 9V Battery Alkaline PP3 9V Battery
Alkaline square lithium battery 9V 1200mah battery IEC 6LR61 battery size 9V battery 9V lithium cell battery
Size: 9V.
Voltage 9V
Weight, 45.3 g.
Dimensions,26.5*17.5*48.5 mm.
Blister 1
High Power Battery Alkaline 6LR61 9V Battery IEC format type C 9V (6F22/6LR61) 9V alkaline battery type 6LR61.
9V long-life alkaline batteries.
| Model | 6LR61, 9V, 6lr6 PP3 MN1604 6LR61 6F22 9V batteries 9V battery |
| Dimensions | 26.5*17.5*48.5 mm |
| Weight | 45g |
| Norminal voltage |
9 volt |
| Test condition/discharge time | 180Ω, 24h/d, 4.8V / 800min |
| 270Ω, 1h/d, 5.4V / 1150min | |
| Storage time | more than 5 years |
| LOGO | OEM |
| Package | Welcome OEM customer logo too |
| Battery pack | any combinations welcome customized |
9v PP3 MN1604 Industrial Size PP3 9v 6LR61 MN1604 9V Alkaline batteries Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them
9 volt batteries 9V PP3 6LR61 PC1604 batteries Advantages
1)Lead-free and mercury-free environmentally friendly design, safer to use
2)Long-lasting storage, anti-leakage technology, not easily broken under pressure
3)New strength electrolyte formula, the power exceeds the national standard limit by more than 30%
Alkaline and Primary Lithium batteries-9V/6LR61 Usage instructions
Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
Primary cell 1.5 volt batteries 6LR61 / 6LF22 / 9V / MN 1604 / E-Block / 6AM-6 / 522 battery Cell
| Model | Diameter mm | Height mm | Norminal Voltage |
Test condition | Discharge |
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||

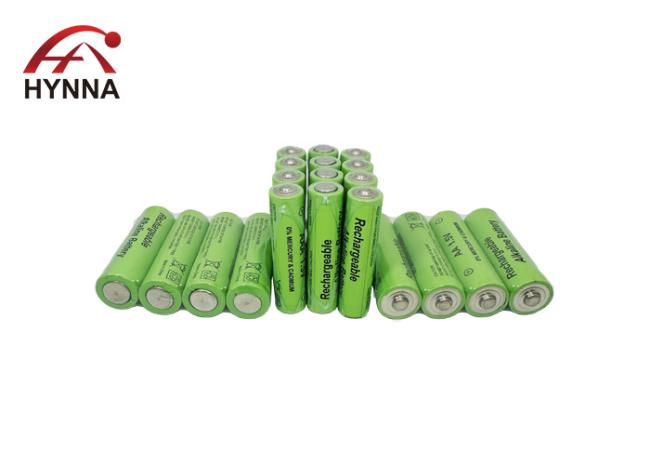

Rechargeable Alkaline battery 1.5 volt 9-volt alkaline batteries manufacture
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
PP3 9 volt battery. MN1604 / 6LR61 battery STORAGE
(1) Store in cool, dry place before use.
(2) Do not keep batteries at temperature of 55℃ or above.
(3) Do not keep batteries at relative humidity of 85% or above.
Battery 9V PP3 6LR61 alkaline battery packing detail:
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| 6LR61/ 9V | 1B/card | 30 cards | 240cards | 391*299*237mm | 13.9 kgs | 1S/shrink | 20 pcs | 360 pcs | 291*237*179 mm | 16.9 kgs |
