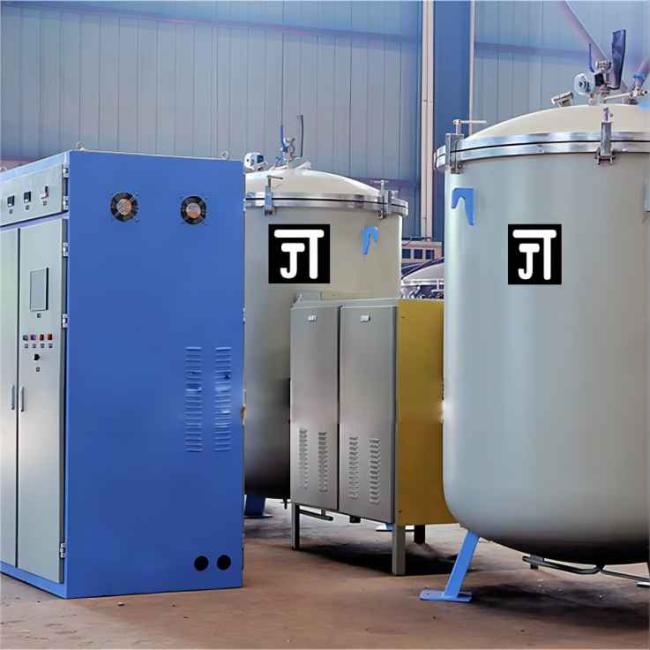

Induction Graphitization Furnace With Thermal Conductive Graphite Film For LED Heat Cooling

Price Negotiable

Price: USD10,000-80,000/SET

MOQ: 1 set

Delivery Time: 60 days

Brand: Jingtan

Product Description

Products Description

Thermal conductive film graphitization furnace usage:

1) Can produce various sizes of thermal conductive graphite film. The equipment before and after the process required reasonable equipment collocation, equipment utilization rate is good, effective production.

2) The equipment adopts microcomputer for furnace body distribution control, temperature control, temperature recording and monitoring of water, electricity and gas data.Using
programming process temperature rise curve for temperature rise,and the actual furnace temperature is recorded,To ensure the
quality of each furnace products, and can track and trace the production of products.Comprehensive monitoring of water,
electricity and gas data, when failure occurs, it will alarm within 1 second and automatically protect the equipment accordingly.

Maximum service temperature of furnace	2800-3000℃
Product Specification	180230mm,210290mm,400400mm,450450mm Can be customized according to the requirements of various specifications
Temperature uniformity	≤±15℃
Working atmosphere	Vacuum replacement of Ar and N2 protection (slight positive pressure)
Temperature control temperature precision	±1℃
Temperature measurement	Infrared optical temperature measurement, temperature measurement range 1000-3200℃
Temperature measurement accuracy	0.3%

Advantage 1:

Thermal conductive graphite film production equipment is mainly composed of 1200-1600℃ carbonization furnace and 2800-3000℃ ultra-high temperature furnace and its supporting gas purification device, gas filtration device, cooling and circulating water system. Can produce various sizes of thermal conductive graphite film. The equipment before and after the process required reasonable equipment collocation, high equipment utilization rate, high production efficiency.

Advantage 2:

The equipment adopts microcomputer for furnace body distribution control, temperature control, temperature recording and monitoring of water, electricity and gas data.Using programming process temperature rise curve for temperature rise,and the actual furnace temperature is recorded,To ensure the quality of each furnace products, and can track and trace the production of products.Comprehensive monitoring of water, electricity and gas data, when failure occurs, it will alarm within 1 second and automatically protect the equipment accordingly.

Model	Unit	GJC-KGPS-60	GJC-KGPS-120	GJC-KGPS-160	GJC-KGPS-200	GJC-KGPS-250	GJC-KGPS-300
Crucible effective volume	mm	Φ100*150	Φ200*300	Φ300*500	Φ400*800	Φ500*1000	Φ600*1200
Medium frequency power supply	Kw	60	120	160	200	250	400
Medium frequency power frequency	Hz	4000	2500	2500	1500	1500	1000
maximum working temperature	℃	3000	3000	3000	3000	3000	3000
limiting vacuum	Pa	1.2*10-1	1.2*10-1	1.2*10-1	1.2*10-1	1.2*10-1	1.2*10-1
Rate of pressure rise	Pz/h	2	2	2	2	2	2
constant temperature zone temperature difference	℃	±10	±10	±10	±15	±15	±15
