45L-5000L Silicon Carbide Industrial Sintering Furnace High Temperature For Metal Powder
Price:
USD10,000-80,000/SET
MOQ:
1 set
Delivery Time:
60 days
Brand:
Jingtan
Product Description

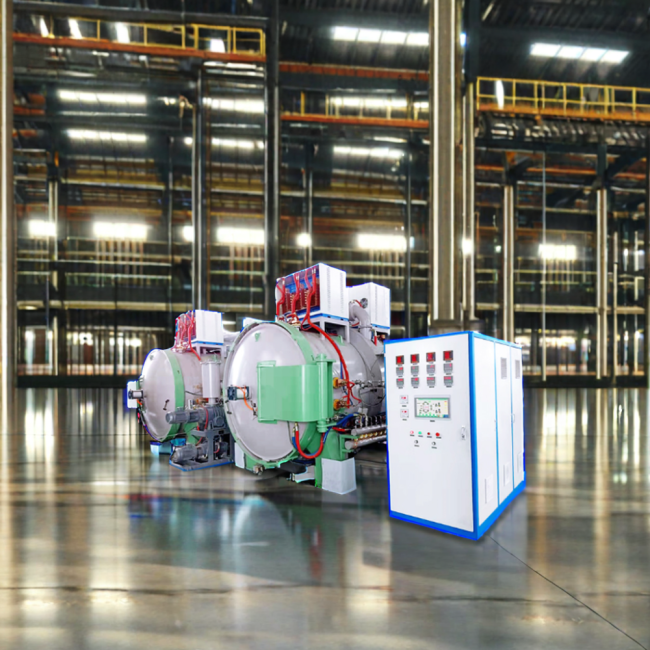

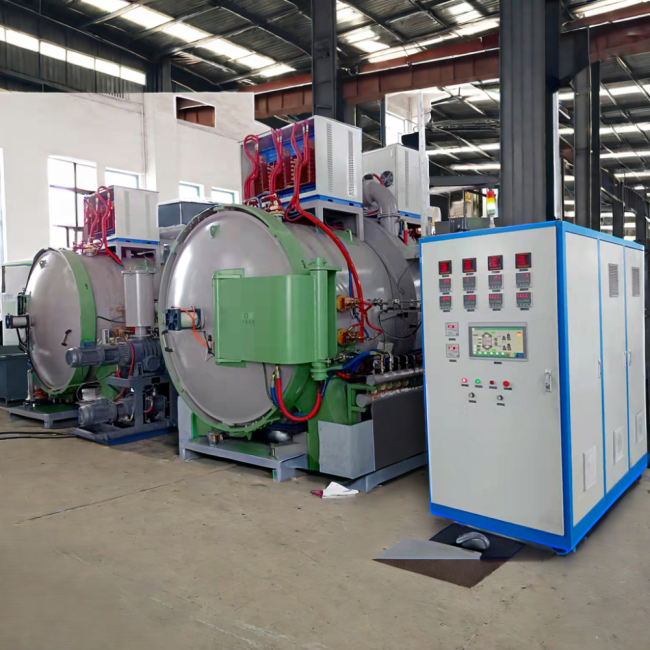

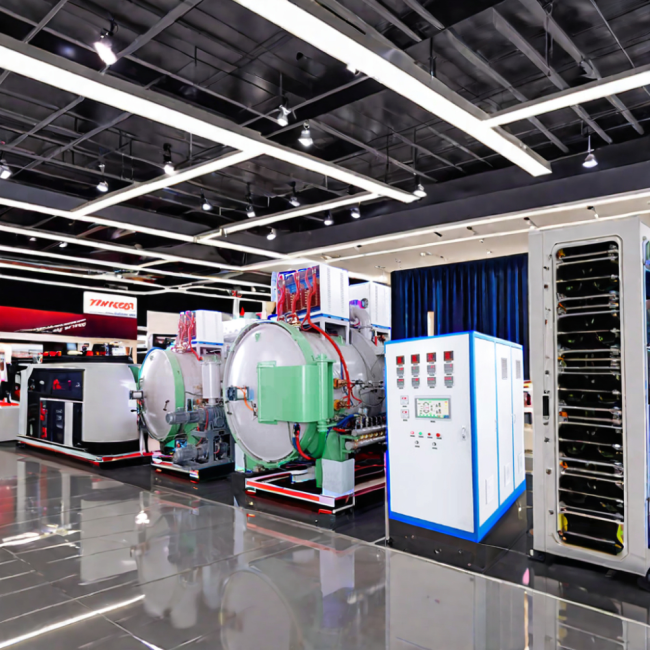

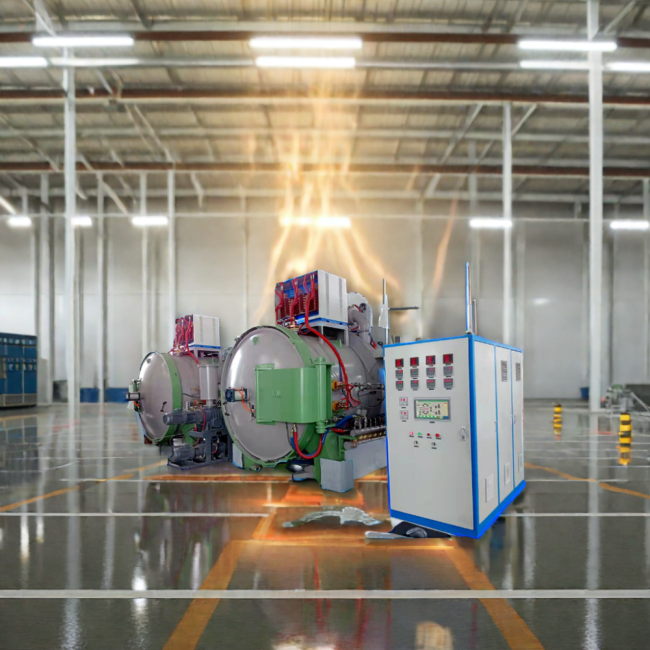

One power supply cabinet with two sintering furnaces
It is a kind of intermittent resistance heating furnace and the main application scope is non-pressure silicon carbide sintering, hard alloy, powder metallurgy industry production of various particle sizes of tungsten carbide powder, chromium carbide powder, titanium carbide powder, vanadium carbide powder and other metal powder and composite metal powder, cold pressing molding, sintering treatment. This is the latest structure, one power supply cabinet with two high temperature furnaces.
|
Model
|
JT-TSL-45
|
JT-TSL-128
|
JT-TSL-375
|
JT-TSL-720
|
JT-TSL-1568
|
JT-TSL-2560
|
JT-TSL-5000
|
||||||
|
Common Temperature
|
300*300*500
|
400*400*
800
|
500*500*
1500
|
600*600*
2000
|
700*700*
3000
|
800*800*
4000
|
1000*1000*5000
|
||||||
|
Loading Capacity
|
45L
|
128L
|
375L
|
720L
|
1568L
|
2560L
|
5000L
|
||||||
|
Limit
Temperature
|
≤2450℃
|
|
|
|
|
|
|
||||||
|
Operating temperature
|
≤2300℃
|
|
|
|
|
|
|
||||||
|
Limit vaccum
|
1Pa(In a cold, empty, clean furnace chamber)
|
|
|
|
|
|
|
||||||
|
Leakage rate
|
After stopping the pump for 15 minutes, the cold state for 12 hours is not more than 10Pa/ hour
|
|
|
|
|
|
|
||||||
|
Temperature control accuracy
|
±1℃
|
|
|
|
|
|
|
||||||
|
Voltage
|
380V,50Hz,three Phrase
|
|
|
|
|
|
|
||||||
|
Heating material
|
graphite tubes and graphite rods
|
|
|
|
|
|
|
||||||
|
Gas supply
|
Argon gas and nitrogen gas can be controlled separately on the valve disc
|
|
|
|
|
|
|
||||||
Characteristic 1:
Intelligent digital display instrument programming PID intelligent digital display temperature controller, new digital display,intelligent control technology, can reduce visual reading and human operation error, greatly improve work efficiency, double row
digital display, key setting,overtemperature alarm.
digital display, key setting,overtemperature alarm.
Characteristic 2:
Microcomputer automatic control, programmable multi-section rising, protecting, cooling curve, automatic heating, heat preservation, cooling and overtemperature protection.
Furnace adopts high temperature durable heat insulation material,which ensure that the temperature outside the furnace body under long-term work does not exceed the allowable value of the national standard.
Characteristic 3:
Internal circulating water system, to ensure the speed of cooling. The furnace body temperature is close to room temperature.
Fast heating, environmental protection and energy saving, high precision, stable performance, good heat preservation effect.
Are you a factory or trading company?
Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.
Do you have customization or OEM service?
Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.
What's your advantages?
Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
