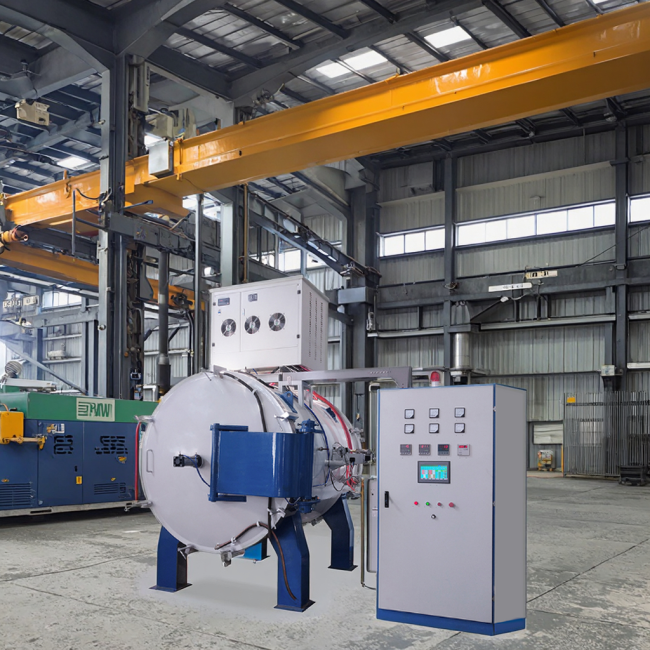

2400C High Temperature Industrial Heat Treatment Furnace For Cemented Carbide Molybdenum

Name: 2400C High Temperature Industrial Heat Treatment Furnace For Cemented Carbide Molybdenum
Brand: Hunan Jingtan Automation Equipment Co., LTD.

Price Negotiable

Price: USD10,000-80,000/SET

MOQ: 1 set

Delivery Time: 60 days

Brand: Jingtan

Product Description

Specification

Application:

The intermediate frequency induction sintering furnace produced by our factory is an intermittent gas (vacuum) protection furnace.

vacuum/atmosphere sintering of cemented carbide, copper-tungsten alloy, tungsten, molybdenum, alnico-cobalt permanent magnet, SmCo5, Sm2Co17, Ndfeb, titanium alloy and other alloy materials.

Product Advantage:

1).Performance intelligent electric furnace,specially suitable for cemented carbide industry (process permits can also be applied to other industries)

2).Absorb the temperature measurement, temperature control technology, intelligence, new material technology and furnace design
technology at home and abroad.

3).A single set of power supply can be configured with multiple electric furnaces, which are heated by electricity and cooled by
electricity respectively for a single furnace to achieve continuous work.

Maximum Use Temperature	1600℃,2000℃,2400℃
High Temperature Volume	0.01m³,0.02m³,0.03m³,0.05m³,0.1m³,0.15m³, 0.2m³,0.3m³
Working atmosphere n furnace	Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Uniformity	≤±10℃
Temperature Measurement	Infrared optical temperature measurement,temperature measurement range 800~2400℃ or 0~2400℃
Temperature Measurement accuracy	0.2~0.75%
Temperature Control	Program control and manual control
Temperature Control accuracy	±1℃
Limit heating rate	200℃/min(Empty Furnace,depending on the volume of high temperature zone and furnace structure)

Features:

Ultra-high temperature furnace body within 2400℃ can fully meet the sintering of various materials. Using digital display intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different process heating curve.

Adopt internal circulation pure water cooling system, digital flow monitoring system;High performance medium frequency contactor is used for automatic conversion of furnace body.

Comprehensive PLC water, electricity, gas automatic control and protection system.

Product parameter:

Features 1:

Features 2:

Adopt internal circulation pure water cooling system, digital flow monitoring system;High performance medium frequency contactor is used for automatic conversion of furnace body.
Comprehensive PLC water, electricity, gas automatic control and protection system.
