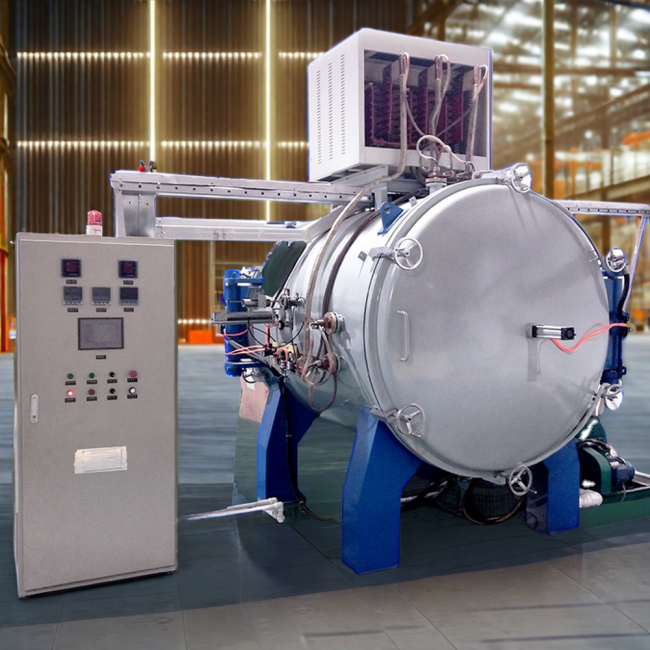

High Temperature Continuous Carbonization Furnace Induction Vacuum Heating Machine Oven
Price:
USD10,000-80,000/SET
MOQ:
1 set
Delivery Time:
60 days
Brand:
Jingtan
Product Description
High Temperature CE Certification Continuous Induction Vacuum Carbonization Heating Machine Oven
Specification
Vacuum Carbonization Furnace
The filament bundle is similar to the horizontal preoxidation furnace body structure, but because of the short residence time, several slit heating plate long furnace with different temperatures are used, and the filament bundle is not in contact with the heating surface
Non-wovens or felt preoxidized wires can be selected from the carbonization furnace, but if the carbonization temperature is not high, it can also be carried out in the conveyor belt furnace. Each carbonization furnace is equipped with inert gas inlet and outlet.
|
Model
|
JT-THL-
45-D
|
JT-THL-
128-D
|
JT-THL-
375-D
|
JT-THL-
720-D
|
JT-THL-
1568-D
|
JT-THL-2560-D
|
JT-THL-
5000-D
|
||||||
|
Constant Temperature Zone(mm)
|
300*300*500
|
400*400*800
|
500*500*1500
|
600*600*
2000
|
700*700*
3000
|
800*800*
4000
|
1000*1000*
5000
|
||||||
|
High Temperature Volume
|
45L
|
128L
|
375L
|
720L
|
1568L
|
2560L
|
5000L
|
||||||
|
Limit Temperature
|
1200℃-1600℃
|
|
|
|
|
|
|
||||||
|
Working Atmosphere in the Furnace
|
Vacuum, hydrogen, nitrogen, inert gas
|
|
|
|
|
|
|
||||||
|
Temperature Uniformity
|
≤±10℃
|
|
|
|
|
|
|
||||||
|
Temperature Measurement
|
Far-infrared optical temperature measurement
|
|
|
|
|
|
|
||||||
|
Temperature Measurement Range
|
800~2400℃ or 0~2400℃
|
|
|
|
|
|
|
||||||
|
Temperature Measurement Accuracy
|
0.2~0.75%
|
|
|
|
|
|
|
||||||
|
Temperature Control Accuracy
|
±1℃
|
|
|
|
|
|
|
||||||
|
Temperature Control
|
Program control and manual control
|
|
|
|
|
|
|
||||||
|
Limit Heating Rate
|
200℃/ Min (empty furnace, depending on the volume of high temperature zone and furnace structure)
|
|
|
|
|
|
|
||||||
|
Cooing Water Pressure
|
0.3MPa
|
|
|
|
|
|
|
||||||
|
Heating Mode
|
Resistance
|
|
|
|
|
|
|
||||||
(1) Graphite heating plate to use high purity, high density and high strength graphite plate, preferably isotropic graphite plate.Because its bending strength and compression strength are 2.8 times and 3.5 times of ordinary graphite, respectively.
(2) The temperature of section ⅰ, ⅱ and ⅲ of the temperature zone can be independently regulated to meet the different requirements of different filament bundles on process conditions.
(3)The connection technology between the power supply and the electrode is very important. The connection is firm, the contact resistance is small, it is better to use specially processed graphite bolts. The cooling of the joint is a key technology, but also often prone to accidents, processing and welding technology must be in place.Water pressure switch and alarm should be provided for shell water cooling.
(4)The outlet end should be set up with a cooling device, so that the fiber is cooled below 500℃ before entering the space, to prevent oxidation. Because carbon fiber starts to slowly oxidize at 350 degrees Celsius in air. In addition to the water cooling system, the cooling device can also be cooled by nitrogen. It can be detected the composition of the gas in the furnace at any time, especially the content of trace oxygen.
Company Profile
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Patent for high temperature graphitization furnace:
Patent for high temperature vacuum hot pressure furnace:
Patent for high temperature continuous furifing graphitization furnace:
Patent for carbonization sintering furnace:
Patent for bottom discharge graphitization furnace:
Patent for carbon fiber continuous furnace
Production process
Customer Photos
Customer cooperation cases:
Our logistics system is all around the world.
Pre-sales and after-sales service
FAQ
Are you a factory or trading company?
Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.
Do you have customization or OEM service?
Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.
What's your advantages?
Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
