316 Ultra Fine Plain Weave Stainless Steel Wire Mesh 110-300 Mesh Count
316 Ultra Fine Plain Weave Stainless Steel Wire Mesh
Description of stainless steel wire mesh
Stainless steel woven wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.
- Wire mesh can be custom fabricated to any shape or application
- Stainless wire mesh is easily workable
- Wire mesh can be stamped or cut to size
- Wire mesh can be rolled, welded, sintered, and soldered
- Stainless steel filters can have custom flanges
- Variety of stainless steel mesh openings available
- Many material types available
Specification of stainless steel wire mesh
| Mesh | Wire Diameter | Opening Size | Open area | ||
| Inch | Millimeter | Inch | Millimeter | ||
| 110 | 0.0040 Inch | 0.102 Mm | 0.005 Inch | 0.129 Mm | 31.40% |
| 120 | 0.0026 Inch | 0.066 Mm | 0.006 Inch | 0.145 Mm | 47.30% |
| 120 | 0.0037 Inch | 0.094 Mm | 0.005 Inch | 0.117 Mm | 30.90% |
| 130 | 0.0017 Inch | 0.043 Mm | 0.006 Inch | 0.152 Mm | 60.70% |
| 145 | 0.0022 Inch | 0.056 Mm | 0.005 Inch | 0.119 Mm | 46.40% |
| 135 | 0.0023 Inch | 0.058 Mm | 0.005 Inch | 0.129 Mm | 47.40% |
| 150 | 0.0026 Inch | 0.066 Mm | 0.004 Inch | 0.104 Mm | 37.20% |
| 150 | 0.0030 Inch | 0.076 Mm | 0.004 Inch | 0.094 Mm | 30.40% |
| 160 | 0.0025 Inch | 0.063 Mm | 0.004 Inch | 0.095 Mm | 36.40% |
| 165 | 0.0019 Inch | 0.048 Mm | 0.004 Inch | 0.107 Mm | 47.10% |
| 180 | 0.0012 Inch | 0.030 Mm | 0.004 Inch | 0.112 Mm | 61.50% |
| 170 | 0.0026 Inch | 0.066 Mm | 0.003 Inch | 0.084 Mm | 31.20% |
| 200 | 0.0016 Inch | 0.041 Mm | 0.003 Inch | 0.086 Mm | 46.20% |
| 230 | 0.0014 Inch | 0.036 Mm | 0.003 Inch | 0.074 Mm | 46.00% |
| 220 | 0.0017 Inch | 0.043 Mm | 0.003 Inch | 0.071 Mm | 38.70% |
| 240 | 0.0016 Inch | 0.040 Mm | 0.003 Inch | 0.066 Mm | 38.30% |
| 250 | 0.0016 Inch | 0.040 Mm | 0.002 Inch | 0.061 Mm | 36.00% |
| 270 | 0.0014 Inch | 0.036 Mm | 0.002 Inch | 0.058 Mm | 38.70% |
| 300 | 0.0015 Inch | 0.038 Mm | 0.002 Inch | 0.046 Mm | 30.30% |

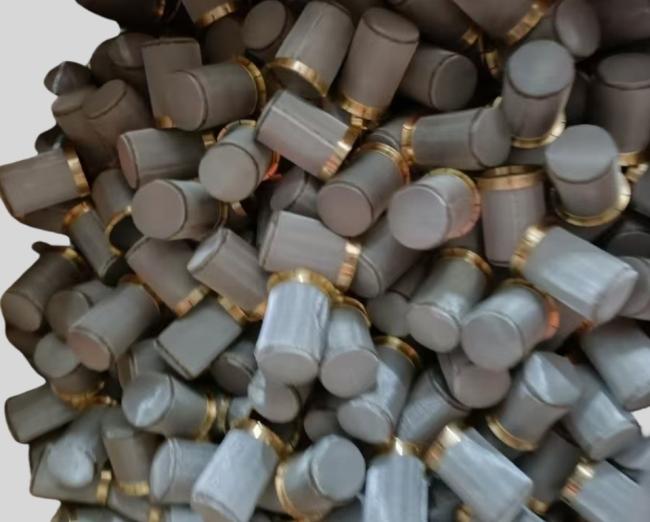

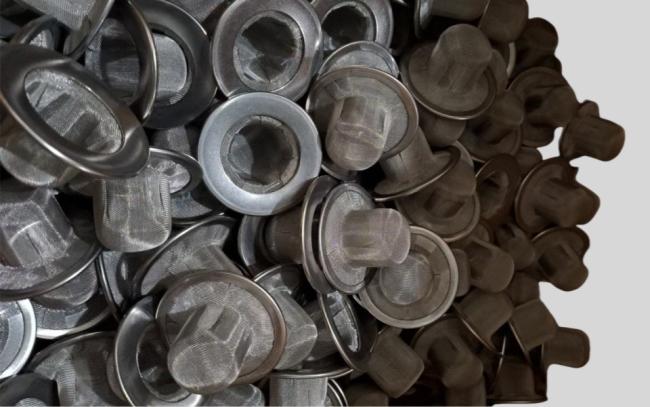

Stainless steel wire mesh filters are also used in:
Aerospace and oil/gas industries
Solvents, paints, water
Filtration, sifting, sizing
Vents
Baskets
Strainers
Faucet Screens
Insect Screens
Decorative wire mesh grilles
Guards
Decorative/craft applications
Stainless wire mesh is durable, cleanable, and reusable, making it an economical choice for most filtering projects.
