Metal Mesh Cone Temporary Strainer 5-3000μm
Pipeline Cone Strainers Conical Strainers Temporary Strainer Stainless Steel Filter element
Quick details of Temporary Strainer
- Micron size range: 5-3000μm.
- Different media options: From 1-layer to 7-layer mesh.
- Configurations, standard options include metal woven mesh and perforated plate.
- Materials of construction:carbon steel, SS316/316L, Hastelloy-C276, Inconel-600, titanium.
- Standard temporary strainer materials are stainless steel,However other materials are available upon request.
- Standard perforated material thickness: Ranges between 14 ga to 20 ga flange rings 11 ga heavier gauge available for perforated and or rings.
- Perforation: Hole sizes 1/16"And up.
- Flange facings: Raised face and rtj available.
- Liners cover: 10 mesh and up standard mesh is 304ss.
- Special lengths are available.
- Temperature limit with Buna-N gaskets: 121℃ (250°F), other gasket materials to 232°C (450°F). From -269℃( -452°F ) to 350℃ ( 622°F ) alloy limiting
- Normal flow direction: 0.5bar - 50bar
- Reverse flow direction: 0.3 - 43bar
Description of Temporary Strainer
Temporary strainer standard optional mesh size selection from 10 mesh to 400 mesh. Conical temporary strainers are available in carbon steel as well as a choice of stainless steel grades to ensure reliable durability in corrosive working environments.
According to different customer application requirements, these temporary strainers offer a choice of perforated plates, woven mesh, or sintered mesh as the filtration media.
Specification of Temporary Strainer
| Pipe | |||||||||||||||

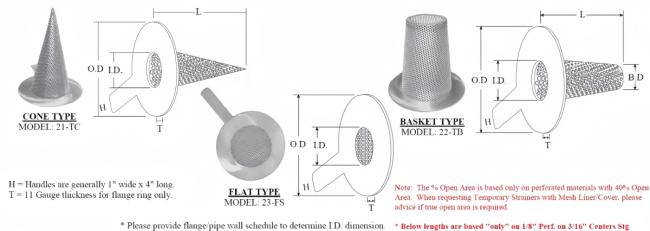

| Size | O.D. | O.D. | O.D. | O.D. | O.D. | I.D. | CONE “L” | CONE “L” | CONE “L” | CONE “L” | BASKET “L” | BASKET “L” | BASKET “L” | BASKET “L” | B.D. |
| 150# | 300# | *600# | *900# | *1500# | 100% | 150% | 200% | 300% | 100% | 150% | 200% | 300% | |||
| 3/4 | 2.125” | 2.50” | 2.50” | 2.625” | 2.625” | 0.625” | 3.00” | 4.00” | 5.00” | 6.00” | 1.50” | 2.00” | 3.00” | 4.00” | 0.50” |
| 1 | 2.50” | 2.75” | 2.75” | 3.00” | 3.00” | 0.75” | 3.00” | 4.00” | 5.00” | 6.00” | 1.50” | 2.00” | 3.00” | 4.00” | 0.75” |
| 1 1/2” | 3.25” | 3.625” | 3.625” | 3.75” | 3.75” | 1.25” | 3.50” | 4.50” | 6.00” | 9.00” | 2.00” | 2.50” | 3.50” | 5.00” | 0.75” |
| 2 | 4.00” | 4.25” | 4.25” | 5.50” | 5.50” | 1.75” | 4.00” | 6.00” | 8.00” | 11.00” | 2.50” | 3.00” | 4.00” | 6.00” | 1.00” |
| 2 1/2 | 4.75” | 5.00” | 5.00” | 6.375” | 6.375” | 2.25” | 4.00” | 6.00” | 8.00” | 11.00” | 2.50” | 3.00” | 4.50” | 6.00” | 1.25” |
| 3 | 5.25” | 5.75” | 5.75” | 6.50” | 6.75” | 2.75” | 5.00” | 7.00” | 9.00” | 13.00” | 3.00” | 4.50” | 6.00” | 8.00” | 1,50” |
| 4 | 6.75” | 7.00” | 7.50” | 8.00” | 8.125” | 3.75” | 8.00” | 10.00” | 12.00” | 18.00” | 4.00” | 5.00” | 7.00” | 11.00” | 2.00” |
| 5 | 7.625” | 8.375” | 9.375” | 9.625” | 9.875” | 4.625” | 8.00” | 11.00” | 14.00” | 22.00” | 4.50” | 7.00” | 9.00” | 14.00” | 2.50” |
| 6 | 8.625” | 9.75” | 10.375” | 11.25” | 11.00” | 5.375” | 9.00” | 13.00” | 18.00” | 25.00” | 5.50” | 8.00” | 11.00” | 17.00” | 3.00” |
| 8 | 10.875” | 12.00” | 12.50” | 14.00” | 13.75” | 7.375” | 12.00” | 17.00” | 23.00” | 33.00” | 7.00” | 11.00” | 14.00” | 21.00” | 4.00” |
| 10 | 13.25” | 14.125” | 15.625” | 17.00” | 17.00” | 9.375” | 14.00” | 21.00” | 28.00” | 41.00” | 8.00” | 13.00” | 17.00” | 26.00” | 5.00” |
| 12 | 16.00” | 16.50” | 17.875” | 19.50” | 20.375” | 11.00” | 16.00” | 25.00” | 34.00” | 49.00” | 10.00” | 15.00” | 20.00” | 31.00” | 6.00” |
| 14 | 17.375” | 19.00” | 19.00” | 20.375” | 22.625” | 12.25” | 18.00” | 27.00” | 36.00” | 53.00” | 10.00” | 16.00” | 22.00” | 33.00” | 7.00” |
| 16 | 20.125” | 21.125” | 21.875” | 22.50” | 25.125” | 14.00” | 21.00” | 31.00” | 40.00” | 61.00” | 12.00” | 19.00” | 24.00” | 37.00” | 8.00” |
| 18 | 21.25” | 23.375” | 23.75” | 25.00” | 27.625” | 15.75” | 24.00” | 35.00” | 46.00” | 68.00” | 14.00” | 21.00” | 27.00” | 41.00” | 9.00” |
| 20 | 23.50” | 25.625” | 26.625” | 27.375” | 29.625” | 17.50” | 26.00” | 38.00” | 51.00” | 76.00” | 16.00” | 24.00” | 31.00” | 48.00” | 10.00” |
| 24 | 27.875” | 30.375” | 30.875” | 32.875” | 35.375” | 21.25” | 31.00” | 45.00” | 61.00” | 90.00” | 18.00” | 28.00” | 37.00” | 57.00” | 12.00” |
Application of Temporary Strainer
Temporary strainer is installed to protect a flow meter, pump, control or relief valves or other pieces of equipment during startup.
During construction, materials may become trapped in the line. These materials could be welding slag, welding rod, pieces of wood, cigarettes, rocks, etc. Many pieces of equipment will become damaged if this debris enters it. After start up is completed, the startup strainer should be removed.
